Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
54 HD3L Series Controller User Manual
6.2.8 F07: Asyn. Motor Parameters
The relationship between rated torque current, idling excitation current and rated current of motor is:
Rated torque current F07.05 F07.02
Idling excitation current F07.11
1 F07.05
2
F07.02
Mutual inductance F07.10
F07.01
2
F07.03F07.11
F07.09
Ref. Code Function Description Setting Range [Default]
F07.00 Rated power of motor 0.2 - 400.0kW
[Depend on motor]
F07.01 Rated voltage of motor 0V – HD3L rated Voltage
[Depend on motor]
F07.02 Rated current of motor 0.0 - 999.9A [Depend on motor]
F07.03 Rated frequency of motor 1.00 - 100.00 [50.00Hz]
F07.04 Rated RPM of motor 1 - 24000 [1440rpm]
F07.05 Power factor of motor 0.001 - 1.000 [Depend on motor]
F07.06 Motor parameter auto-tuning 0 - 2 [0]
0: Auto-tuning is disabled.
1: Stationary auto-tuning.
2: Rotary auto-tuning.
Motor auto-tuning:
In the process of stationary auto-tuning, the stator resistance (F07.07), rotor resistance (F07.08) and
leakage inductance (F07.09) will be auto-measured and written into F07.07, F07.08 and F07.09
automatically.
For mutual inductance (F07.10) and idling excitation current (F07.11).
At stationary auto-tuning (F07.06 = 1), it will auto calculate according to F07.05 and F07.02, then write
the result into F07.10 and F07.11;
At rotary auto-tuning (F07.06 = 2), the motor will be at rotary status and the auto-measured value will
be written into F07.10 and F07.11.
When the motor is in rotary status, oscillation and even overcurrent might occur. In this case, press the
key to stop auto-tuning and then properly adjust the F07.21 (oscollation-suppression mode) and
F07.22 (oscollation-suppression coefficient) to mitigate the possible oscillation.
Note: The auto-tuning is enabled only in keypad control mode (F00.05 = 0).

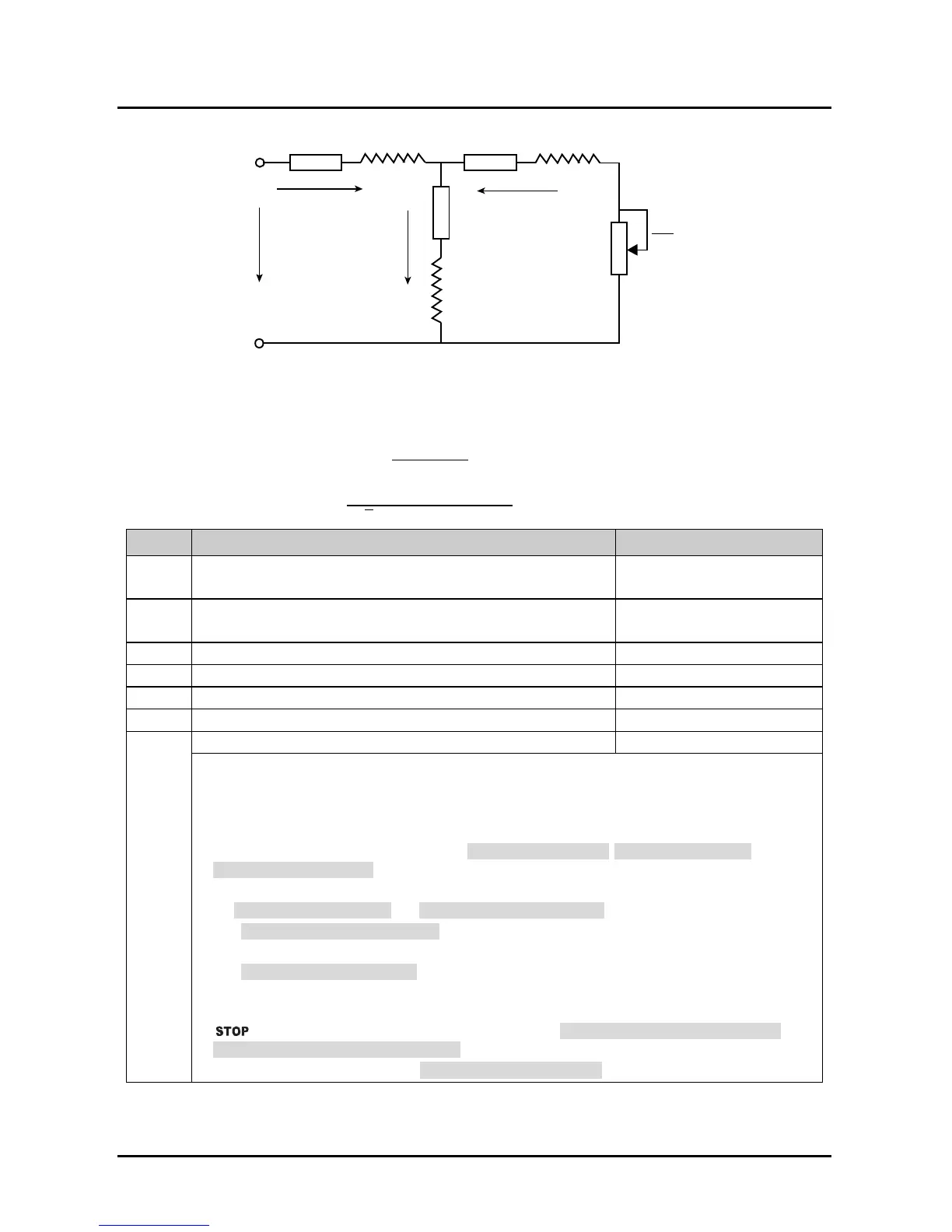

L
m
R1=F07.07 (Stator resistance)
R2=F07.08 (Rotor resistance)
Io=F07.11 (Excitation current)
R1 R2LI
I1 I2
S
1-S
R2
LI
LI=F07.09 (Leakage inductance)
Lm=F07.10 (Mutual inductance)
S=Slip ratio
U1
Io
