Chapter 9 Accessories
9.1 Keypad Installation Assembly
The keypad installation assembly includes mounting base and extension cable.
Mounting Base
The keypad mounting base is an accessory. If needed, please order goods.
Model: HD-KMB. The mounting base and its size are shown as Figure 9–1 and the unit is mm.

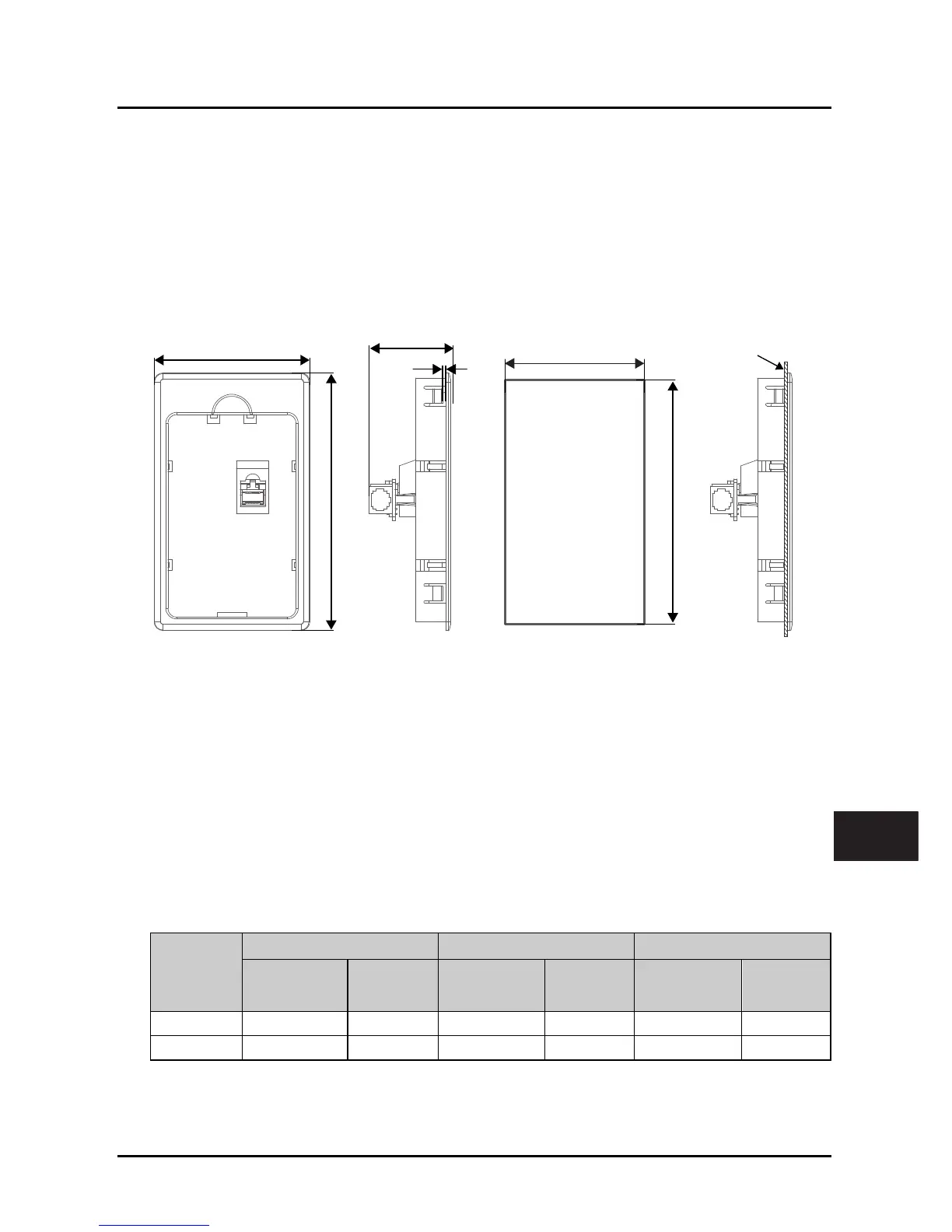

Figure 9–1 Mounting base and its size
Extension Cable
The keypad extension cable is an accessory. If needed, please order goods.
The models are as follows:
• 1m extension cable to keypad: HD-CAB-1M
• 2m extension cable to keypad: HD-CAB-2M
• 3m extension cable to keypad: HD-CAB-3M
• 6m extension cable to keypad: HD-CAB-6M
9.2 Reactor Selection
Table 9-1 AC / DC reactor selection
Model
AC input reactor AC output reactor DC reactor
Model
Parameter
(mH-A)
Model
Parameter
(mH-A)
Model
Parameter
(mH-A)
HD3L-4T037 HD-AIL-4T037 0.19-75 HD-AOL-4T037 0.08-80 HD-DCL-4T037 0.35-100
HD3L-4T045 HD-AIL-4T045 0.16-90 HD-AOL-4T045 0.06-100 HD-DCL-4T045 0.29-120
I
n
stallati
o
n
Door cabinet
76.5±0.2
134.5±0.2
142
86
44.8
1.8
Mo
u
n
ti
n
g
a
p
erture size
H
D-
K
MB size
9
