Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Elevator application guidance
HD3L Series Controller User Manual ―71―
Control Part Connection

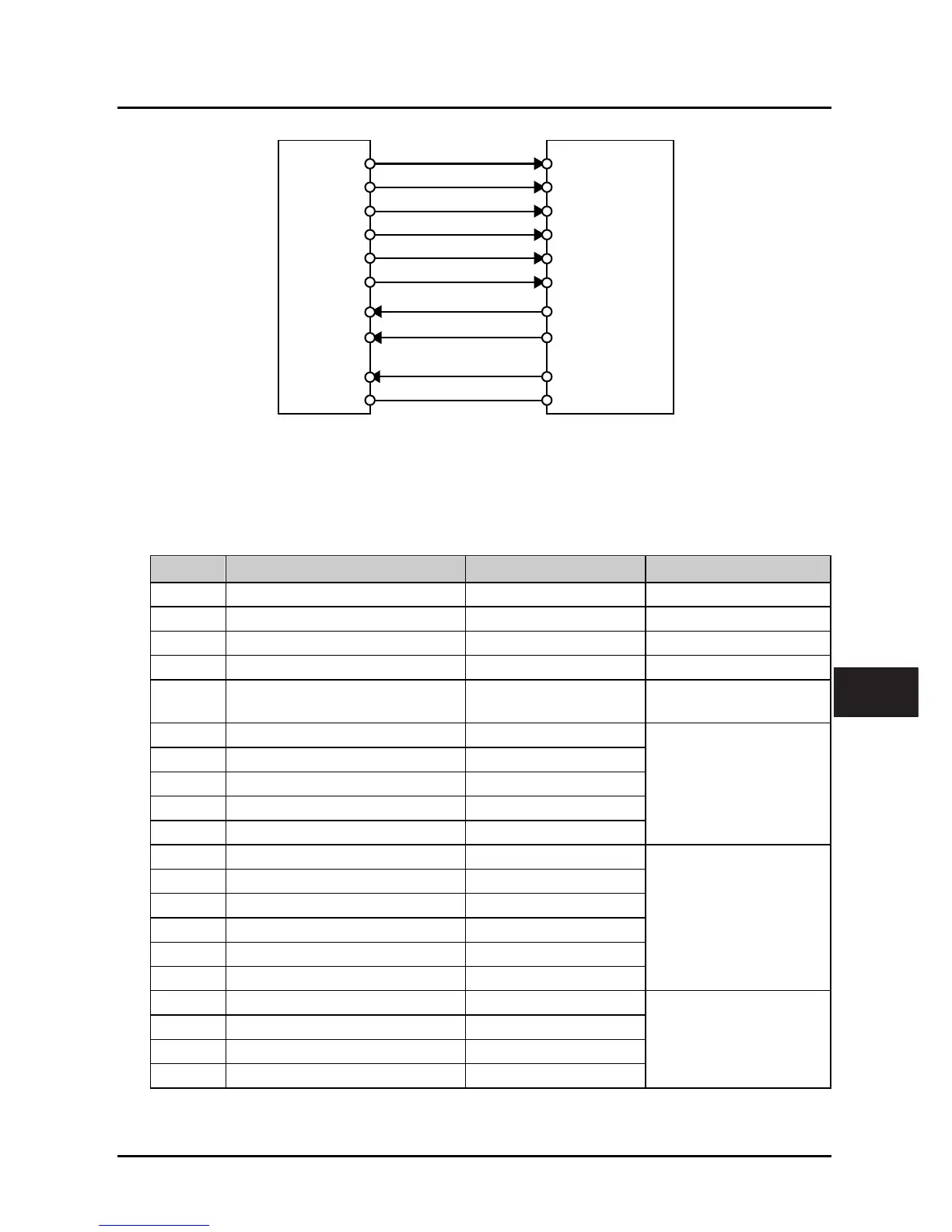

Figure 7–2 Terminal MS running connection
Set Parameter
The setting content of terminal MS general function code is shown as Table 7-1 and setting content of
special function code is shown as Table 7-2.
Table 7-1 General parameter
Ref. Code Function Value Remark
F00.00 Motor type Depend on actual value
F00.01 Motor control mode Depend on actual value
F00.02 Rated speed of elevator Depend on actual value
F00.03 Max. output freqency of HD3L Depend on actual value
F00.04 Mechanical parameters of motor
Depend on actual calculate
value
F07.00 Rated power of motor Depend on actual value
Motor nameplate parameters
F07.01 Rated voltage of motor Depend on actual value
F07.02 Rated current of motor Depend on actual value
F07.03 Rated frequency of motor Depend on actual value
F07.04 Rated RPM of motor Depend on actual value
F08.00 ASR proportional gain 1 500
Adjust according to running
effect.
Generally use the default
value.
F08.01 ASR integral coefficient 1 500
F08.02 ASR proportional gain 2 500
F08.03 ASR integral coefficient 2 500
F08.04 ASR swithcing frequency 1 10.00Hz
F08.05 ASR swithcing frequency 2 15.00Hz
F08.09 UP electrical torque limit 180.0%
Adjust according to running
effect.
Generally use the default
value.
F08.10 DN electrical torque limit 180.0%
F08.11 UP regenerative torque limit 180.0%
F08.12 DN regenerative torque limit 180.0%
DI1
DI2
DI3
DI4
DI5
DI6
COM
RLY1
DO1
DO2
HD3L
Elevator
Controller
Controller enabled (EN)
UP
DN
Multi-speed 1 (MS1)
Multi-speed 2 (MS2)
Multi-speed 3 (MS3)
Controller fault
Controller is running
Controller is at
zero-speed running
7
