TP80BE User Manual
17

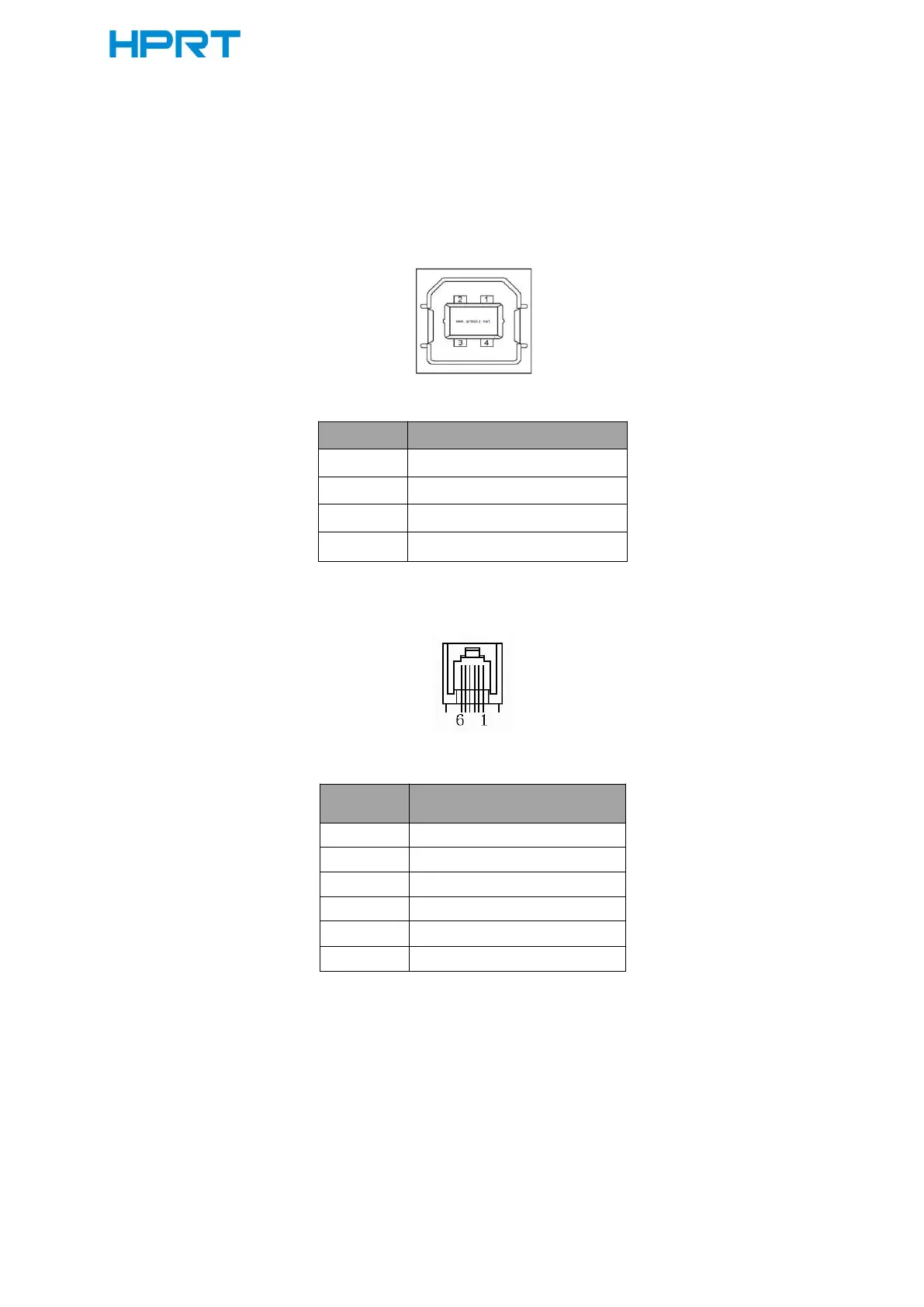

5 INTERFACES
TP80BE supports serial interface, Ethernet interface, cash drawer interface and USB interface.
5.1 USB
Figure 5-1
PIN
SIGNAL NAME
1
VBUS
2
D-
3
D+
4
GND
5.2 Cash Drawer Interface
Figure 5-2
PIN NO.
Signal Name
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
 Driving voltage：DC 24V
 Driving current
：
Maximum 0.8 A ( In 510 ms)
Detection signal for drawer status
：
“L” = 0
～
0.5 V “H” = 3
～
5 V
