HPRT TP80BE User Manual

TP80BE User Manual
18

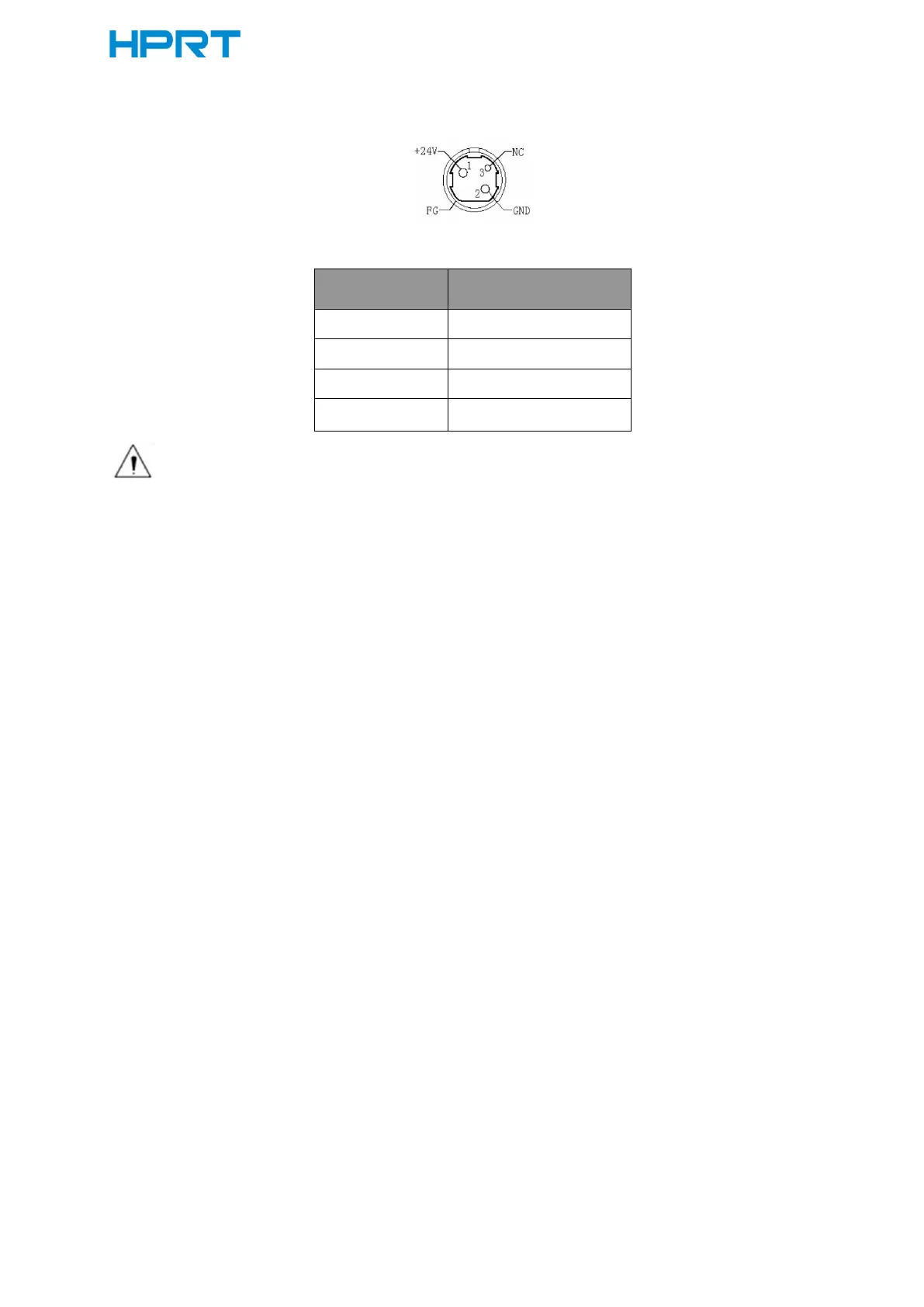

5.3 Power Port Definition
Figure 5
.
3
PIN NO.
Signal Name
1
+24V
2
GND
3
N.C
SHELL
F.G
Notes：
1) Strictly prohibit unplug the cable while the printer is power on.
2) When arranging the line of communication, you have to avoid paralleling with the
strong current.
3) you have to use the shielded communication line.

HPRT TP80BE Specifications

General

Brand	HPRT
Model	TP80BE
Category	Printer
Language	English
