HPRT TP80BE User Manual

TP80BE User Manual
19

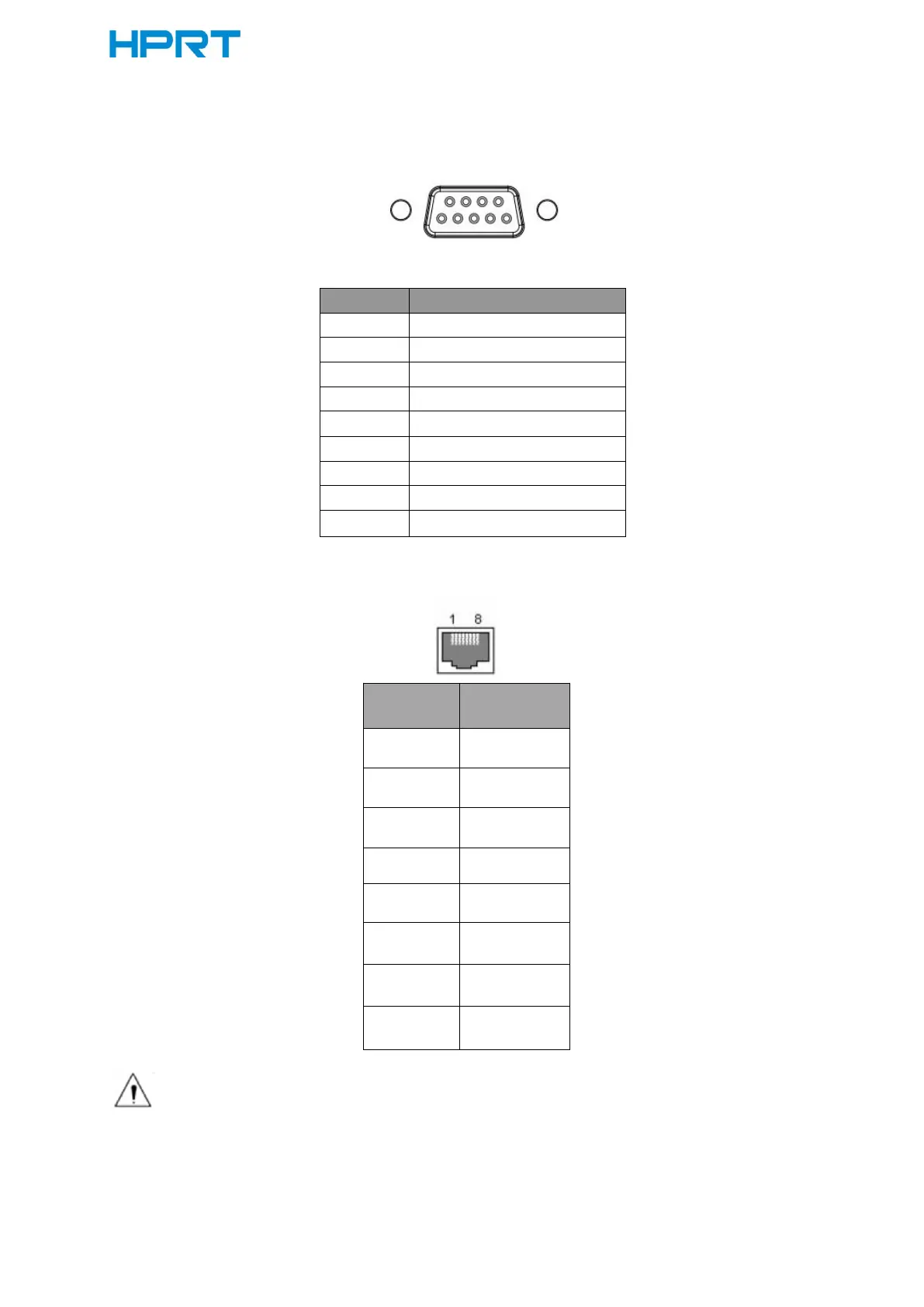

5.4 Serial Interface
Printer TP80BE serial interface is compatible with RS-232 standard, with 9 pin socket.
Figure 5.4
PIN NO.
Signal Name
1
-
2
TXD
3
RXD
4
-
5
GND
6
DTR
7
-
8
RTS
9
-
5.5 Ethernet Interface
Note: The printer is equipped with an Ethernet interface, and use the network
connection router, switch and other network communication equipment which meet RJ45
interface standard. When connecting directly with PC, it is suggested that the cross network
line in accordance with RJ45 interface standard should be adopted.
PIN No.
Signal
1
TX+
2
TX-
3
RX+
4
n/c
5
n/c
6
RX-
7
n/c
8
n/c
