17

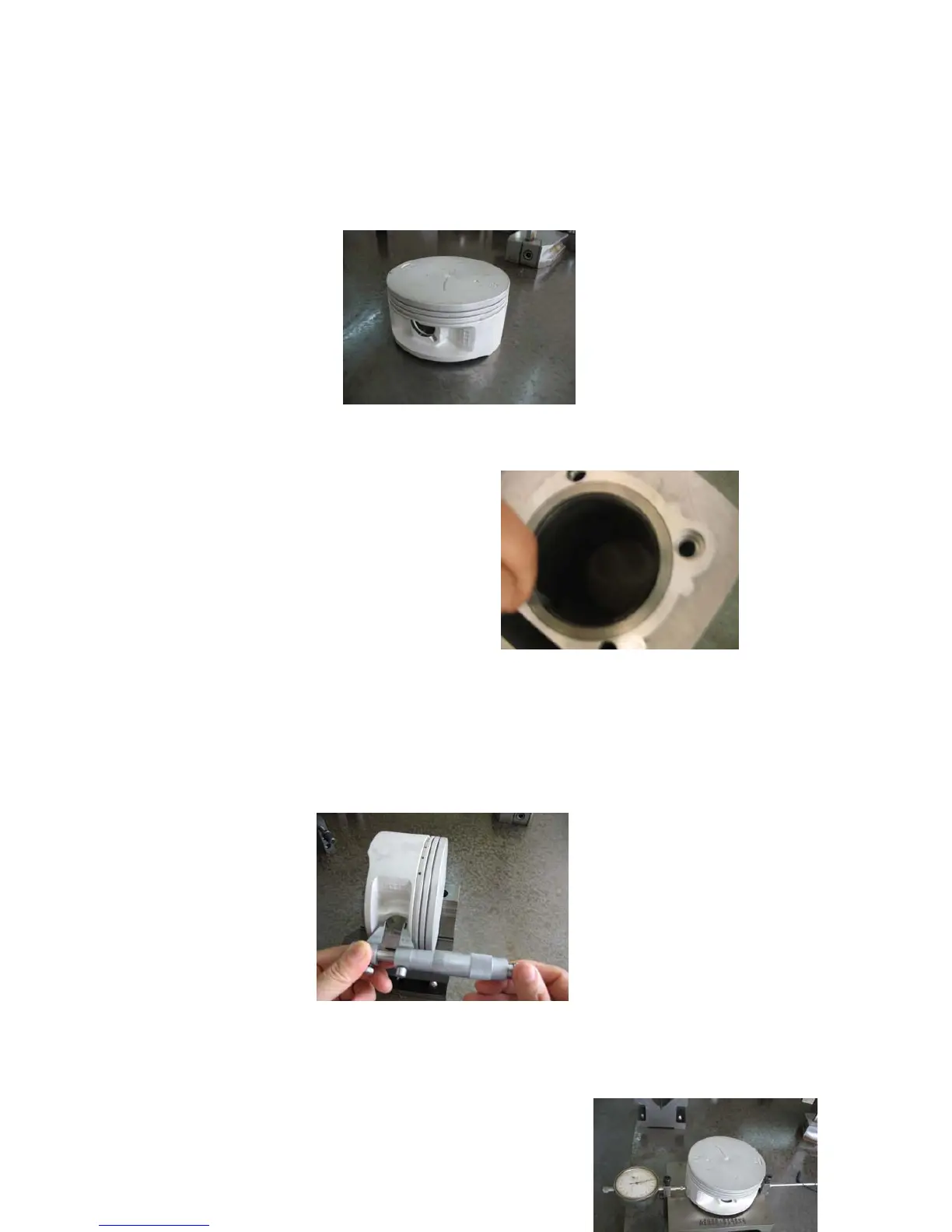

Note:It is forbidden to damaging the piston ring when
assembling.Check whether the piston and the piston groove is cracked
and abraded.See figure 2-7
Figure 2-7
2.Insert piston ring into
cylinder,and measure the
end gap.repairing limit
value:the first ring/the
second ring: 0.5mm
See figure 2-8. Figure 2-8
Measure the bore diameter of piston pin hole.
repairing limit value: see figure 2-9
Figure 2-9
