Hsun hs700atv - Oil Pump

33

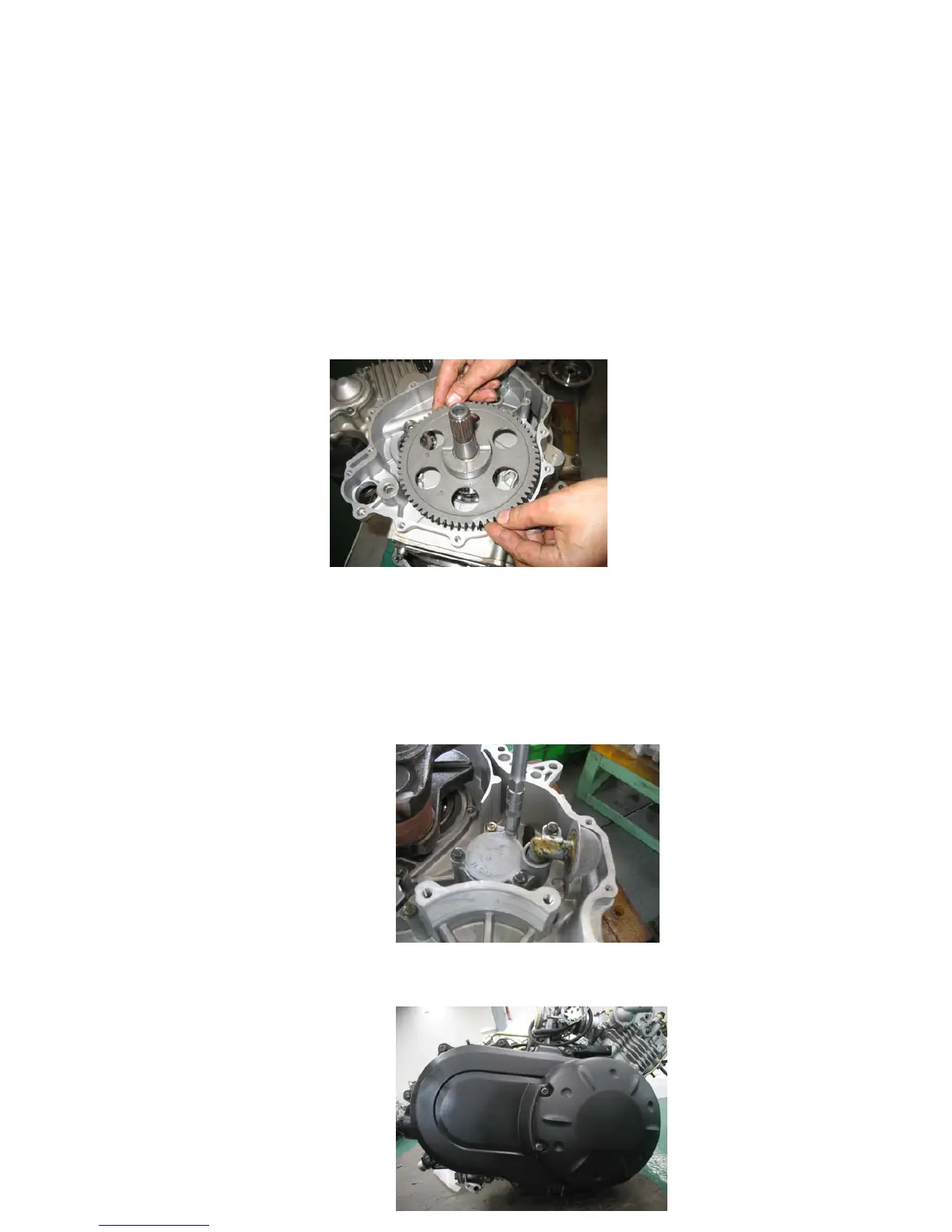

remove the pluse coil
Remove the stator with rotor
stripper.See figure 2-41.
Figure 2-41
Remove the whitney key. See figure 2-42.
Figure 2-42
3.7 oil pump
remove the bolt of oil pump cover .See figure 2-43.
Figure 2-43
remove right cover
.See figure 2-44.
