78
situation happens, maintanance staff would come to test and repair it.
4.6 Suspension

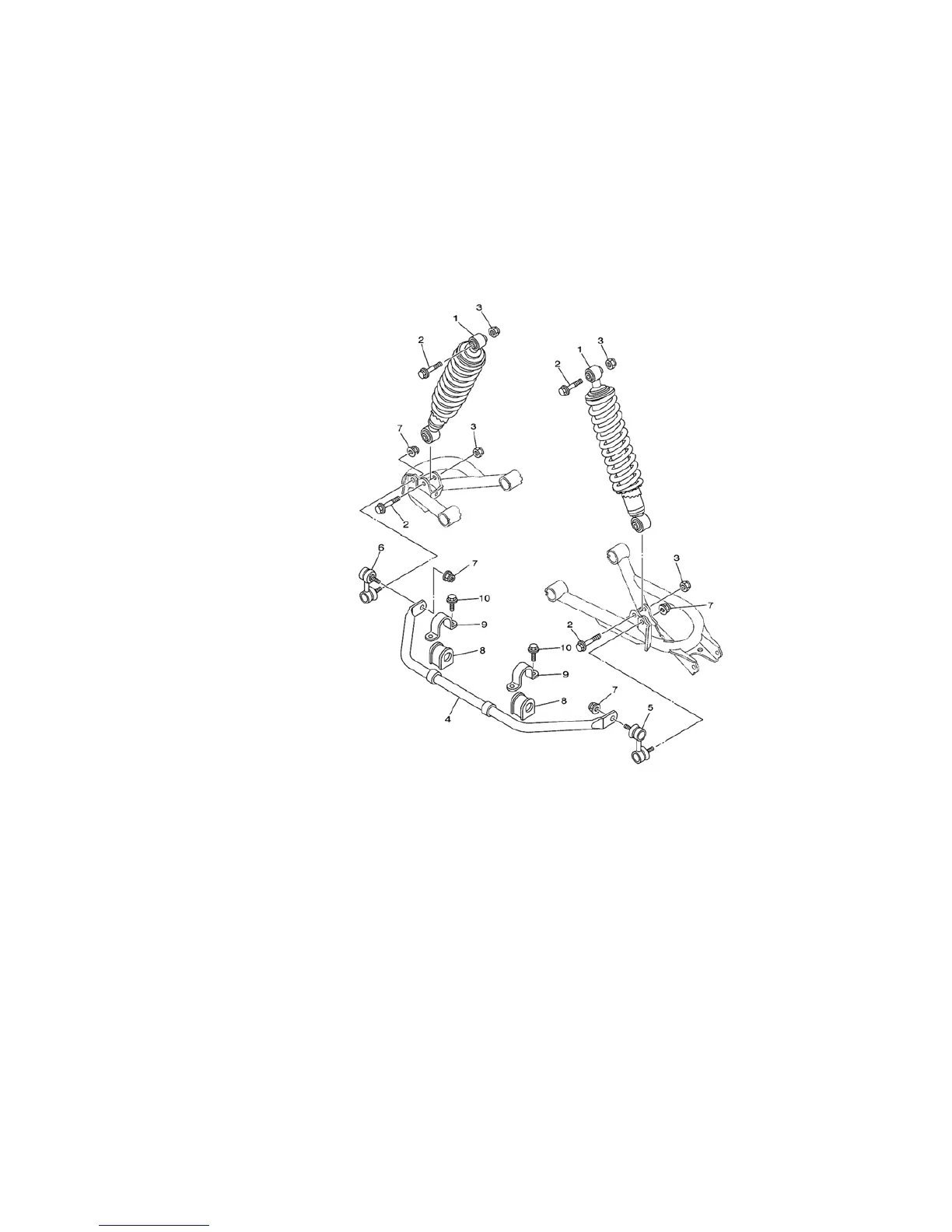

4.6.1components of rear Suspension
1、rear damper components 2、hexagon flange bolt M10×50 3、locknutM10×1.25 4、
horizontal rear-fin components
5、 the right horizontal rear-fin velocity joint 6、the left horizontal rear-fin velocity
joint 7、locknutM12×1.25 8. horizontal rear-fin robber sheath 9. horizontal rear-fin press
plate 10. hexagon flange bolt M8×14
4.6.2rear rocker arm
