5.1 ignition system

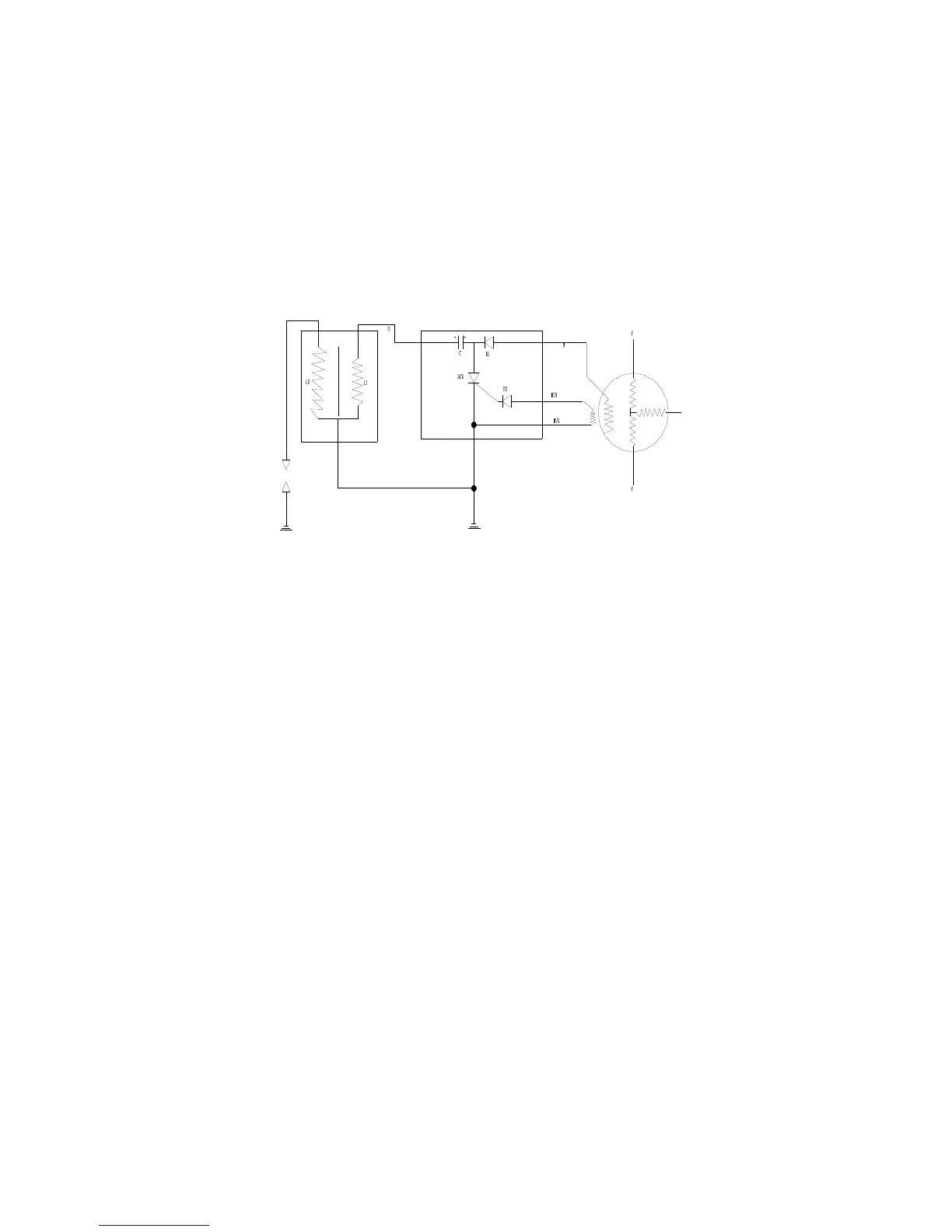

The key diagram of ignition elements ignition elements:
Ignition pressure provided by magneto ignition coil through diode
commutated,by R(red line)input CDI(capacitance discharge
ignition),charge to capacitance C.at the same time ,spring coil produce
spring signal ,provided to SCR as the turnon spring signal ,when reaching
the ignition timing,SCR turnon capacitance began to discharge at the
elementary coil L1 caused instant lower pressure ,while at the secondary
coil caused induce pressure.its instant pressure up to 10000V,sparkover
at the clearance of sparkplug(0.6mm).so the engine ignited
charge system
