2.7 Inspection of air filter

1、Disassemble the air cleaner,remove cartridge,clean the cartridge

with non-flammable cleaning solvent,and then make it dry.

Note: Petrol is forbidden.

2.Dip the air filter cartridge into 20# oil,then take it out and squeeze

the excessive oil,assemble it orderly.Impermeability is

necessary.See figure 2-15, figure 2-16.

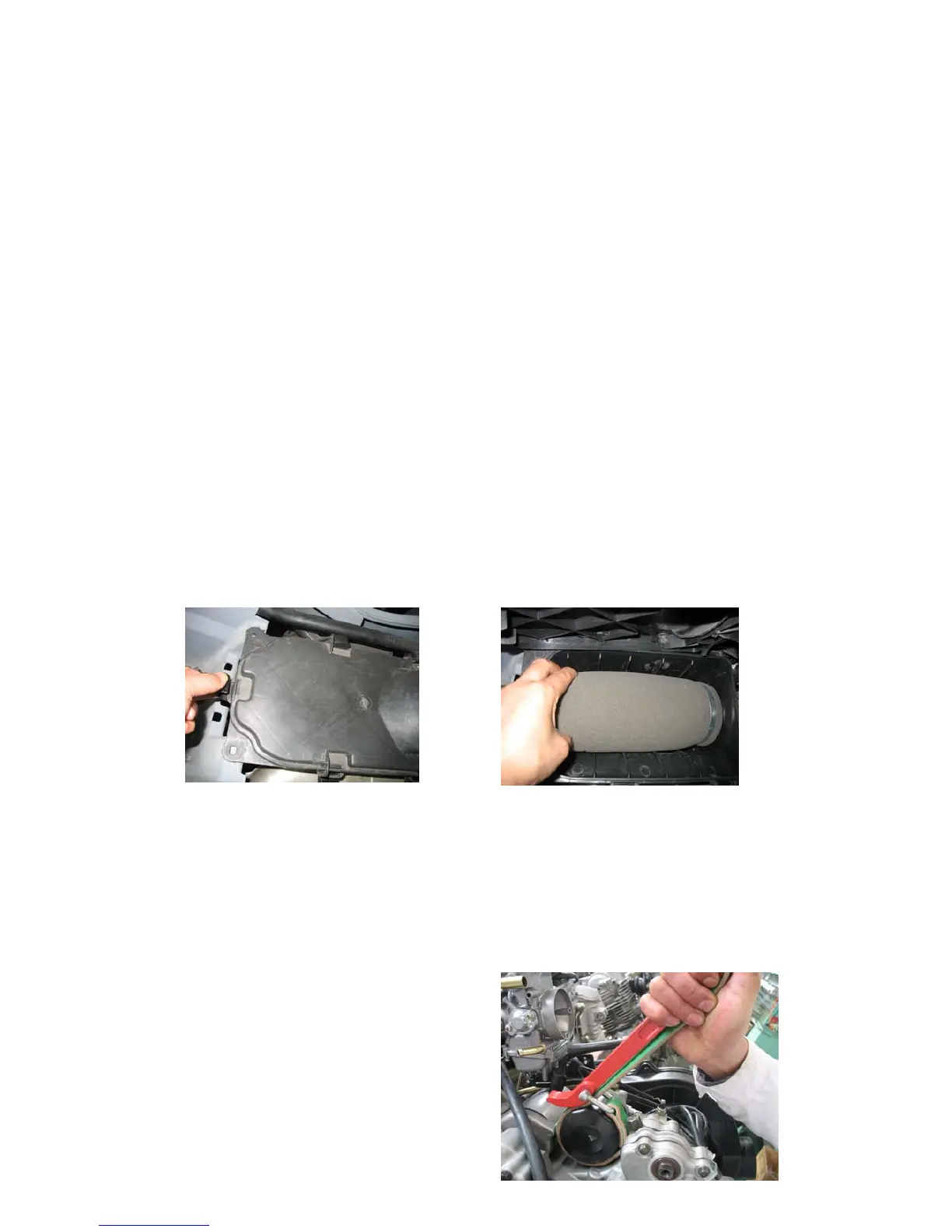

Figure 2-15 Figure 2-16

2．8 Inspection of oil filter

Cleaning of lubricator oil strainer:remove clarifier (Figure

2-17),clean it to ensure a well work- condition.Then fix it up.

Note:Clean the clarifier

before injecting oil
