76
34、rear bridge
oil-change plug M14X15 35. Copper gasket14 36. Weak spring of rear bridge
transmission shaft
37. rear bridge transmission shaft 38. external clip18
39. sheath of rear bridge trans
immision shaft 40. external clip1818 41.clip 42. fore dust-proof cover
of rear bridge transimmision shaft
43
. rear dust-proof cover of rear bridge transimmision shaft 44. bypass line
The maintenance of rear bridge is identical to the fore bridge.Please refer
to the preceding contents.

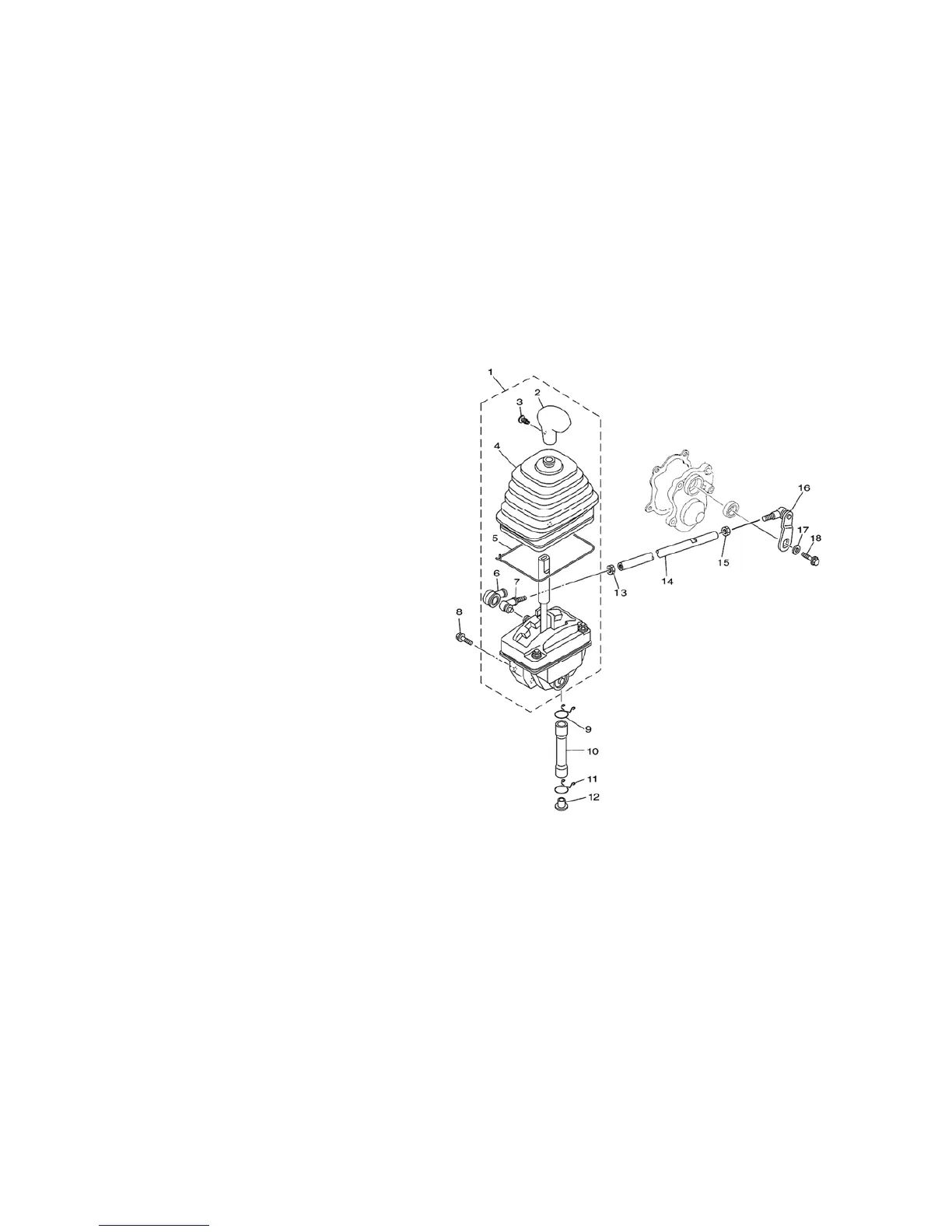

4.5 gear shift mechanism
1、gear shift mechanism assembly 2、gear shift mechanism handle 3、plastic screw of gear
shift mechanism
4、dust-proof cover of gear shift mechanism 5、dust-proof cover thimble of gear shift mechanism
6、elocity joint robber sheath of gear shift mechanism
7、velocity joint of gear shift mechanism 8、hex nut(anti)M8 9、waste oil pipe thimble of
gear shift mechanism
10、waste oil pipe of gear shift mechanism 11、waste oil pipe thimble of gear shift mechanism
