75

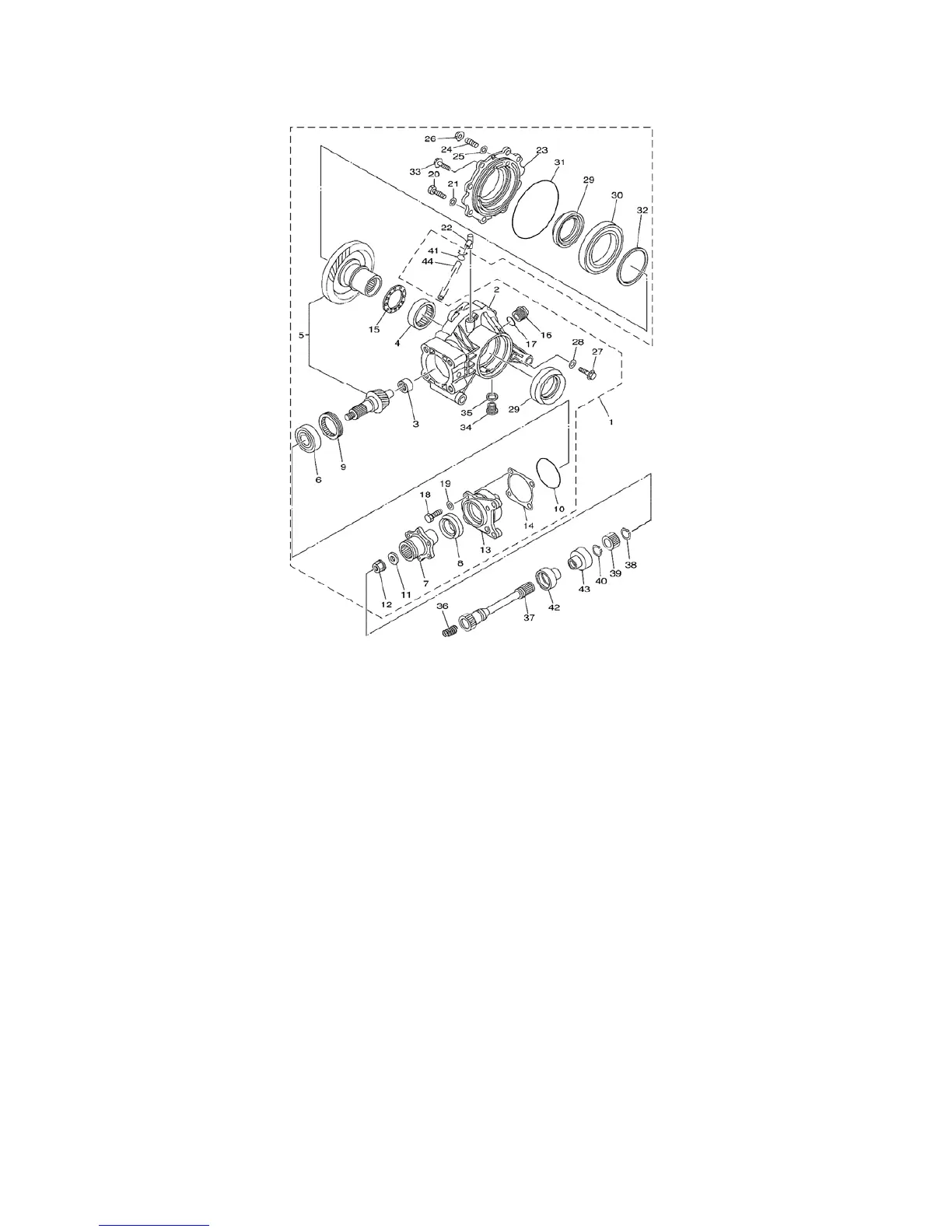

1、rear bridge transmission case assembly 2、the left case 3、
needle bearing 22BM3010 4、needle
bearing
55BM6720A
5、cluster gear of rear bridge 6、needle bearing 7、rear disk brake seat 8、Oil seal 9、clamp sheath
10、
0-ring of rear drive gear 11、cushion12 12、nutM12X1.25 13、rear drive gear seat
14、rear adjuster cushion 15、rear adjuster cushion 16、oiling plug 17、0-rings of grease hole 18、
hex bolt M8X35 19、cushion8 20、hex bolt M8X25 21、cushion8 22、zinc-base alloy oil cap 23、
case cover of rear bridge 24、inner
hex bolt M8X45 25、cooper gasket8 26、flange nut M8 27、
hexagon flange bolt M8X12 28、cooper gasket8 29、90X65 oil seal
30、
deep-groove ball bearing 16017 31、0-rings of rear bridge cover 32、rear adjuster washer 33、
hexagon flange bolt M10X25
