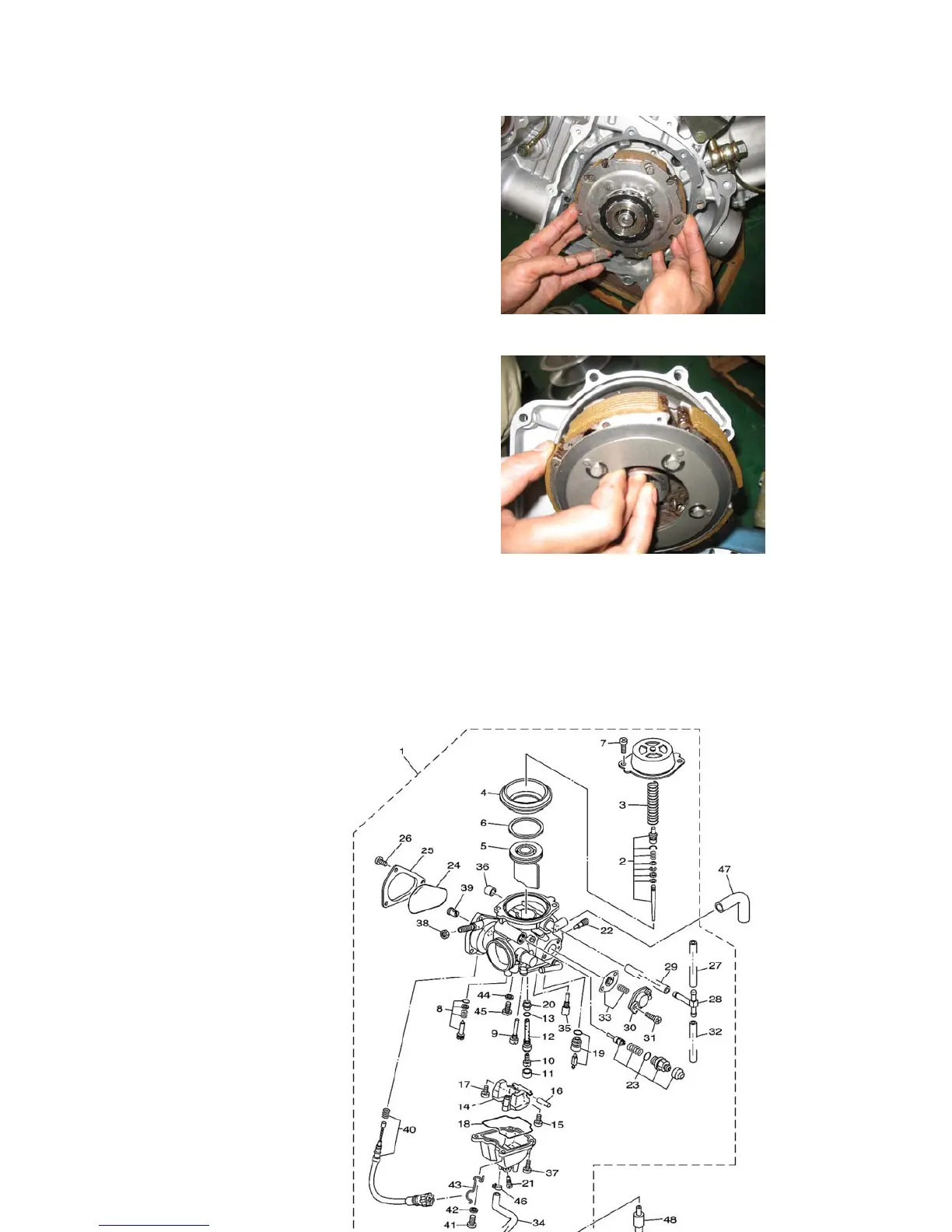

Remove the clutch shoe
block and clutch cover.
See figure 2-47.
Figure 2-47
Check the wear condition
of the clutch shoe block
and clutch cover.
See figure 2-48.
Figure 2-48
3.9 carburetor
3.9.1 structure of carburetor
