Hsun hs700atv - 3.2 Piston and Connecting Rod Removal

31

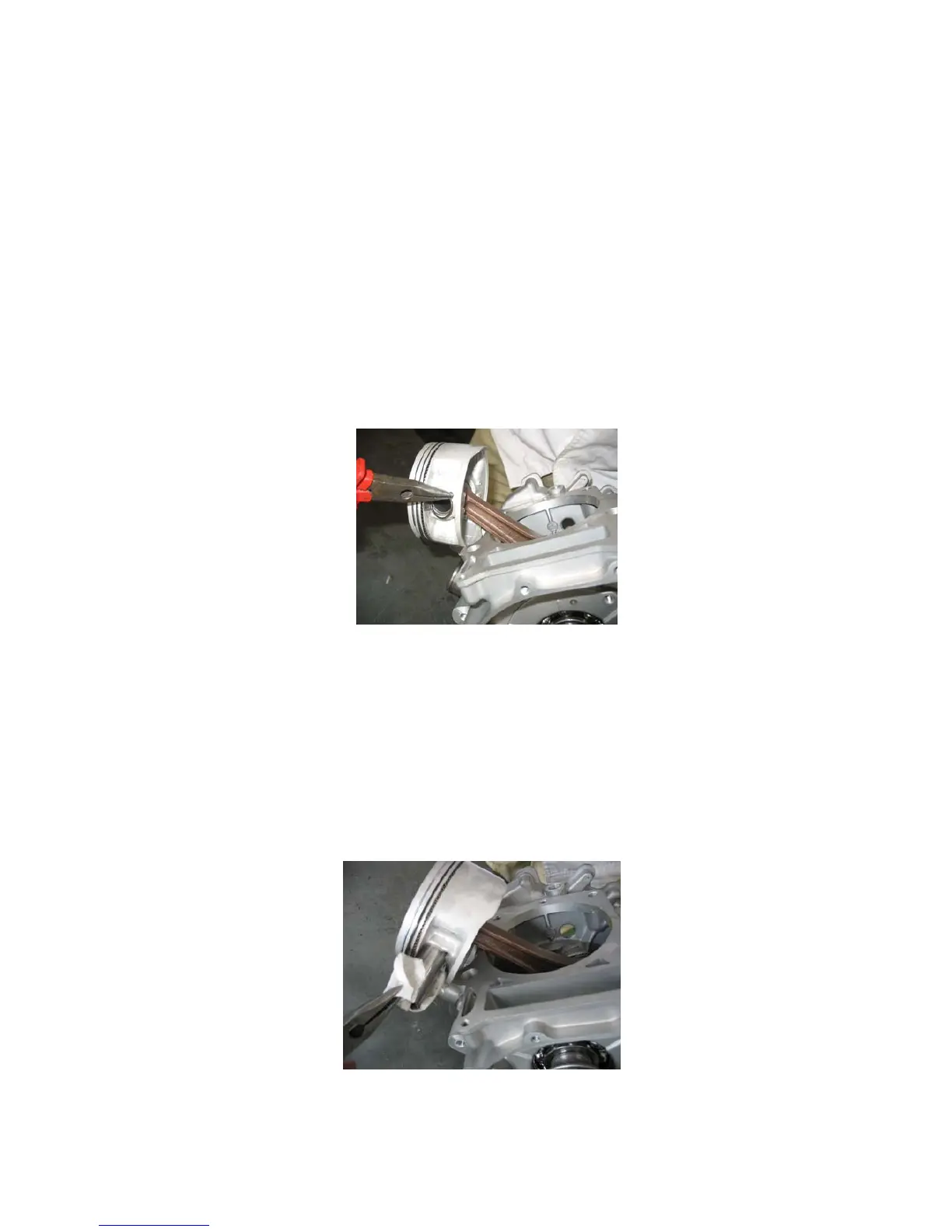

See figure 2-35.
Figure 2-35
3. 2 piston and connecting rod
remove the piston snap ring
Note:block the crankcase breather with a piece of cleaning
cloth to avoid the snap ring falling into the case
.See figure
2-36.
Figure 2-36
remove piston pin and piston
Clean the buckle of piston and piston pin hole to facilitate the
removing of piston pin.
Note:it is forbidden to knock the piston pin with a
hammer.
See figure 2-37.
Figure 2-37
