Note:If there is a rocker arm to be replaced,examine
the peak of breaker cam
measure the bore diameter of rocker arm
Repairing limit value: 12.038mm.See figure 2-24

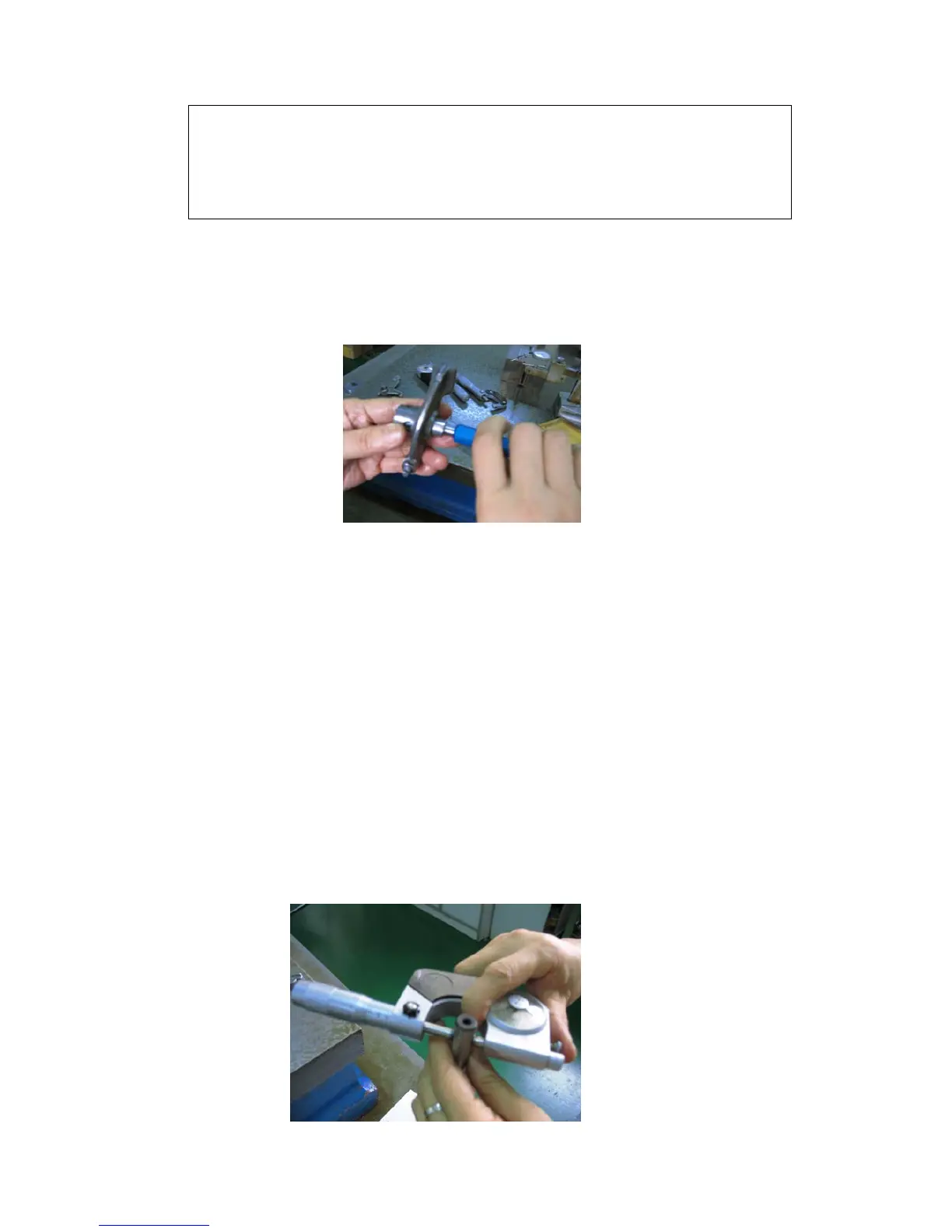

Figure 2-24
7
Inspection of rocker arm shaft.
Examine if the rocker arm if worn out or cracked.
Measure the external diameter of rocker arm shaft with micrometer.
Repairing limit value: 11.96mm
The repairing limit value of clearance between rocker arm shaft and
hole : 0.05mm ,See figure 2-25
