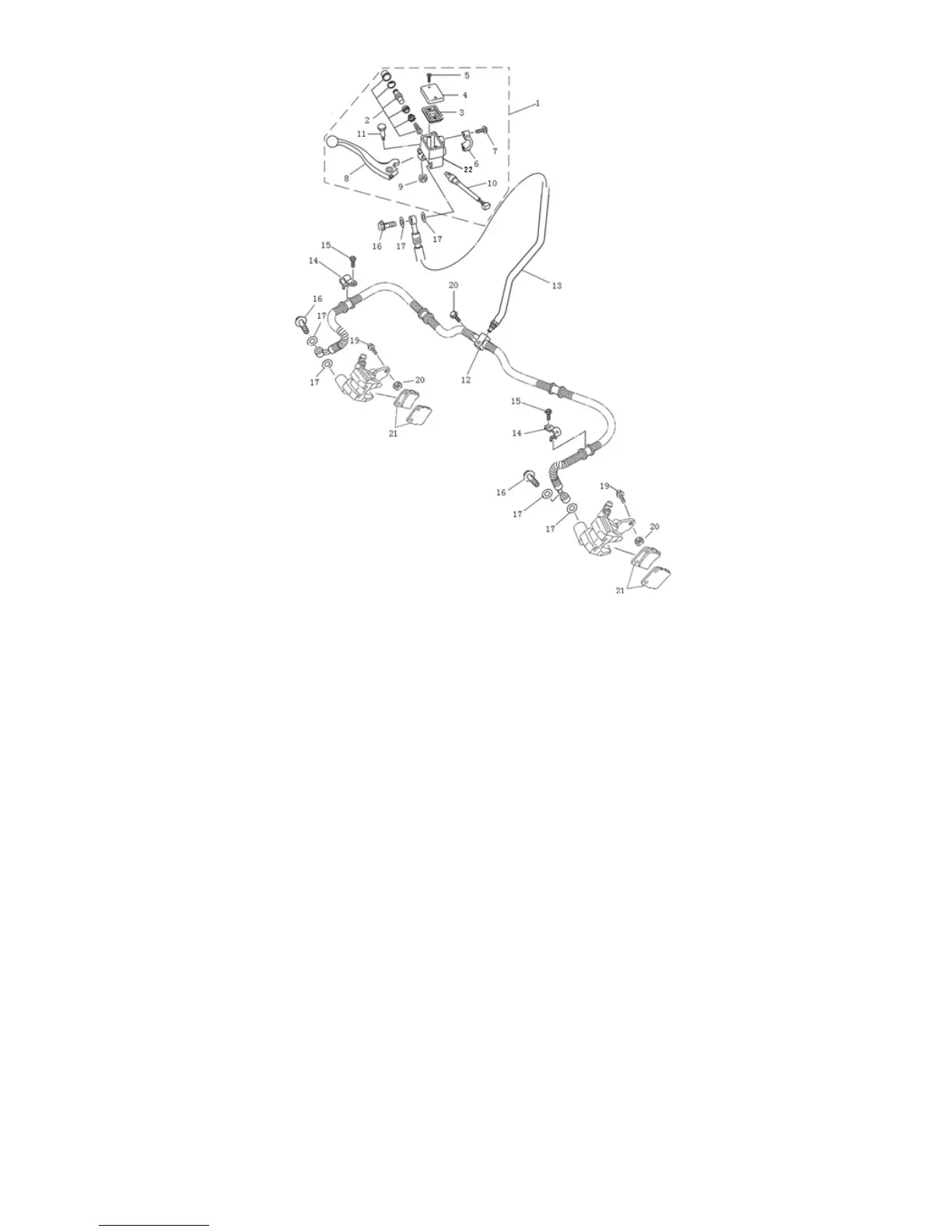

1、disk brake pump assembly 2、disk brake compressed bearing 3、disk brake
oil bowl sealing washer
4、disk brake
oil bowl cover
5、cross recess half-countersunk head screw M5×12 6、disk brake pump seat 7、cross recess pan head
screw M5×60 8、disk brake handle
9、hexagonal locknut M8 10、disk brake switch 11、disk brake handle bolt 12、disk brake oil pipe branch
seat
13、 front disk brake pipe 14、rear brace of front hydraulic pipe 15、inner
hex bolt栓 M6×10
16、bolt of front hydraulic pipe 17、front hydraulic disk brake cushion 18、Hexagon Flange Bolts M6×25
19、Hexagon Flange Bolt M8×14 20、Hexagon Flange nutM8 21、rear brake piece 22、brake-fluid case
4.2.1 Preparation for inspection and maintenance of the front disk brake
system.
