LP-605 Rev. 000 Rel. 009 Date 8.16.18
15

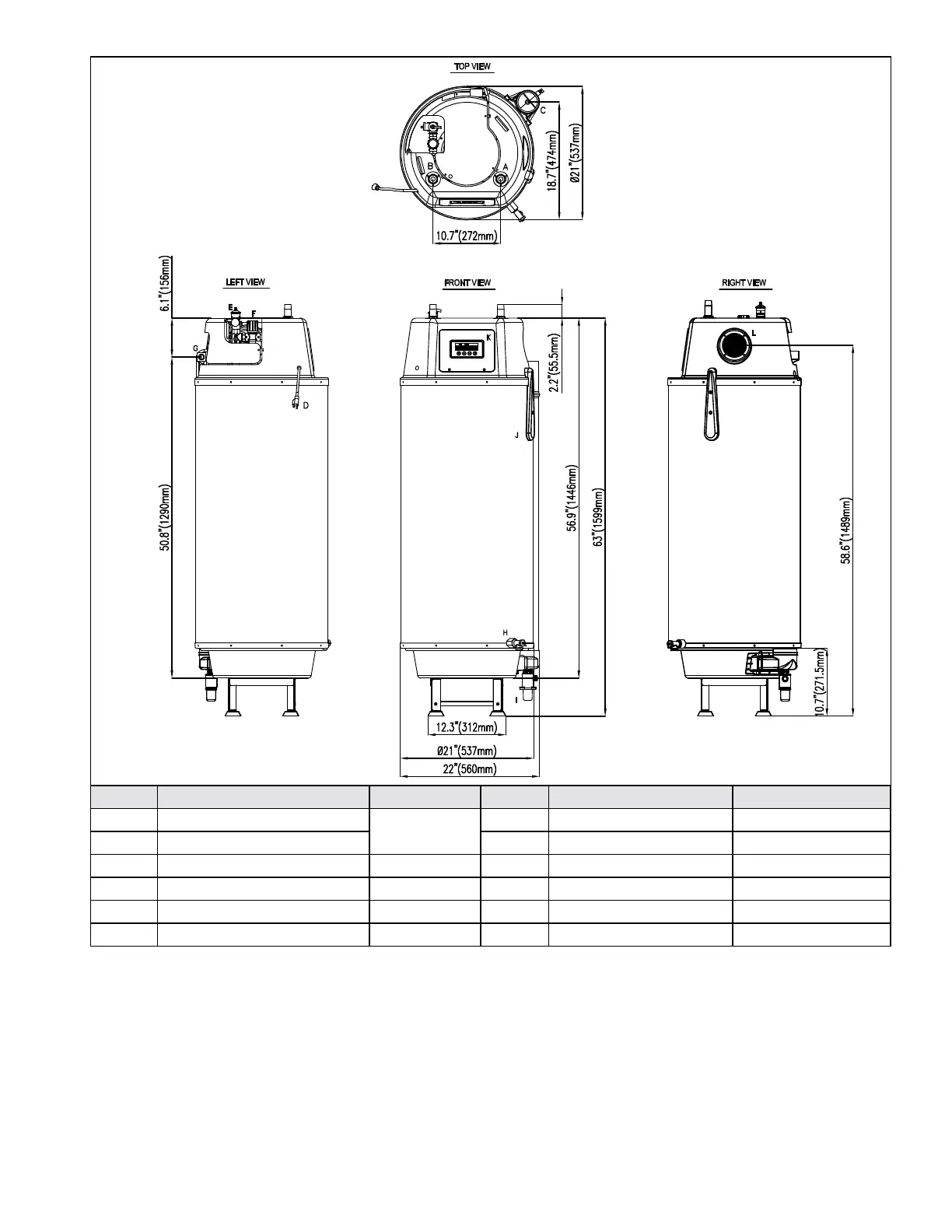

Figure 4 - 40 Gallon Model Dimensions and Specications
Description Diameter Description Diameter
A Cold Water Inlet
3/4” Male NPT
G Gas Connection 1/2” or 3/4” Female NPT
B Hot Water Outlet H Drain Valve N/A
C Exhaust 3” I Condensate System 1/2” Male NPT
D Electric Cord N/A J Tank Sensor N/A
E T&P Valve N/A K Display Control N/A
F Thermostatic Mixing Valve N/A L Air Intake 3”
