LP-605 Rev. 000 Rel. 009 Date 8.16.18
37
Maximum Flame Detecting Voltage AC200V
Minimum Flame Detecting Voltage AC150V
Pre-Purge Time (Tp) 5 - 10 seconds
Safety Time (Igniting Time) (Ts) <5 seconds
Igniting Interval Time <10 seconds
Post-Purge Time (Tip) 20 seconds
Over-Heating 1, 2, 3, Protection Detection Time <1 second
Temperature Sensor Fault Detection Time <10 seconds
# of Ignition Attempts (Ntl) 5
Stored Tank Temperature Setting Three (3) Settings - Normal, Hotter, High Output
Burner O Stored Tank Temperature Normal - 128
o
F, Hotter - 147
o
F, High Output - 167
o
F
Burner On Stored Tank Temperature Normal - 120
o
F, Hotter - 140
o
F, High Output - 160
o
F
High Fire Activation - Water Flow Rate Greater than 1.0 gallons (3.8 liters)*
Low Fire Activation - Water Flow Rate Greater than 0.9 gallons (3.4 liters)*

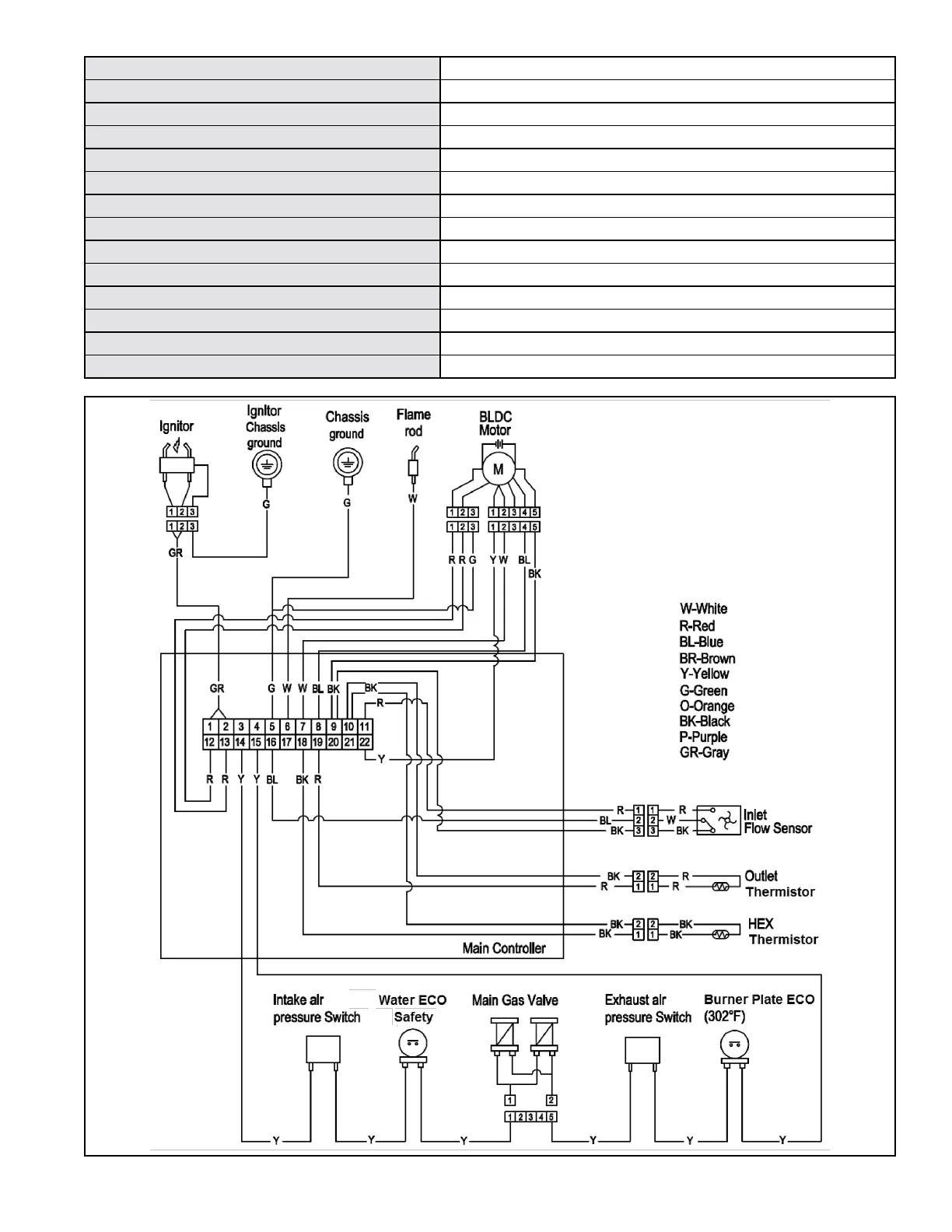

Table 18 - System Control Settings - *NOTE: Zero Activation with Water Heater Storage Tank Capacity
Figure 35 - Electrical Wiring Diagram
To Next Page
