INSERTION POINT
TOP VIEW
INSERTION
POINT
COLD DIP TUBE
HOT OUTLET
HEAT TRAP
LP-608-C
11/15/16

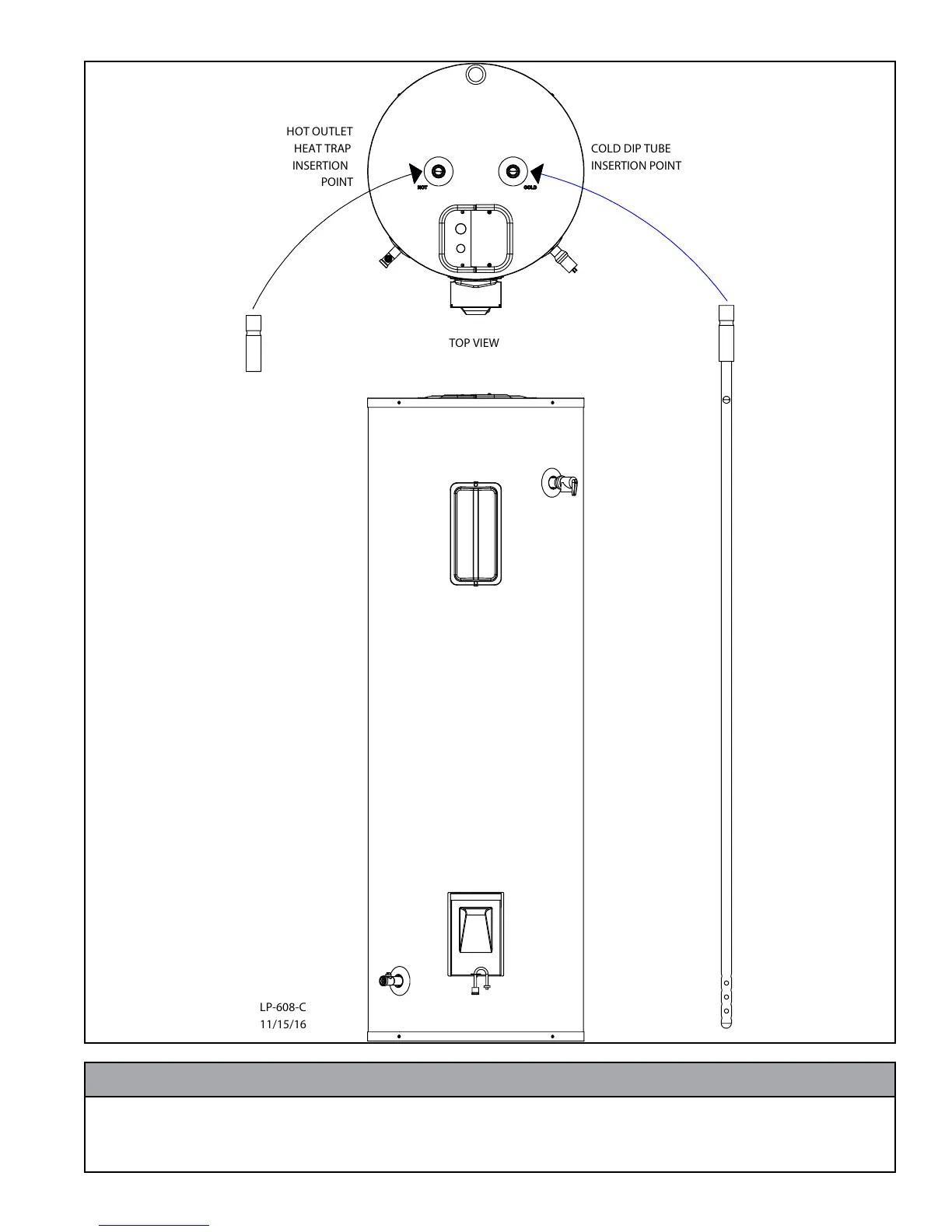

Figure 3 - Installing Cold Inlet and Hot Outlet Fittings
The Cold Inlet and Hot Outlet Fittings MUST BE INSTALLED according to the steps in Figure 3 for the electric water heater to operate
properly. Please use Teon thread tape and pipe sealing compound to seal ttings into the tank. Failure to install these ttings properly will
result in improper water heater operation, possible substantial property damage, and increased costs. Service calls to repair the installation
and properly install these ttings ARE NOT COVERED by water heater warranty. Improper installation WILL VOID the water heater warranty.
