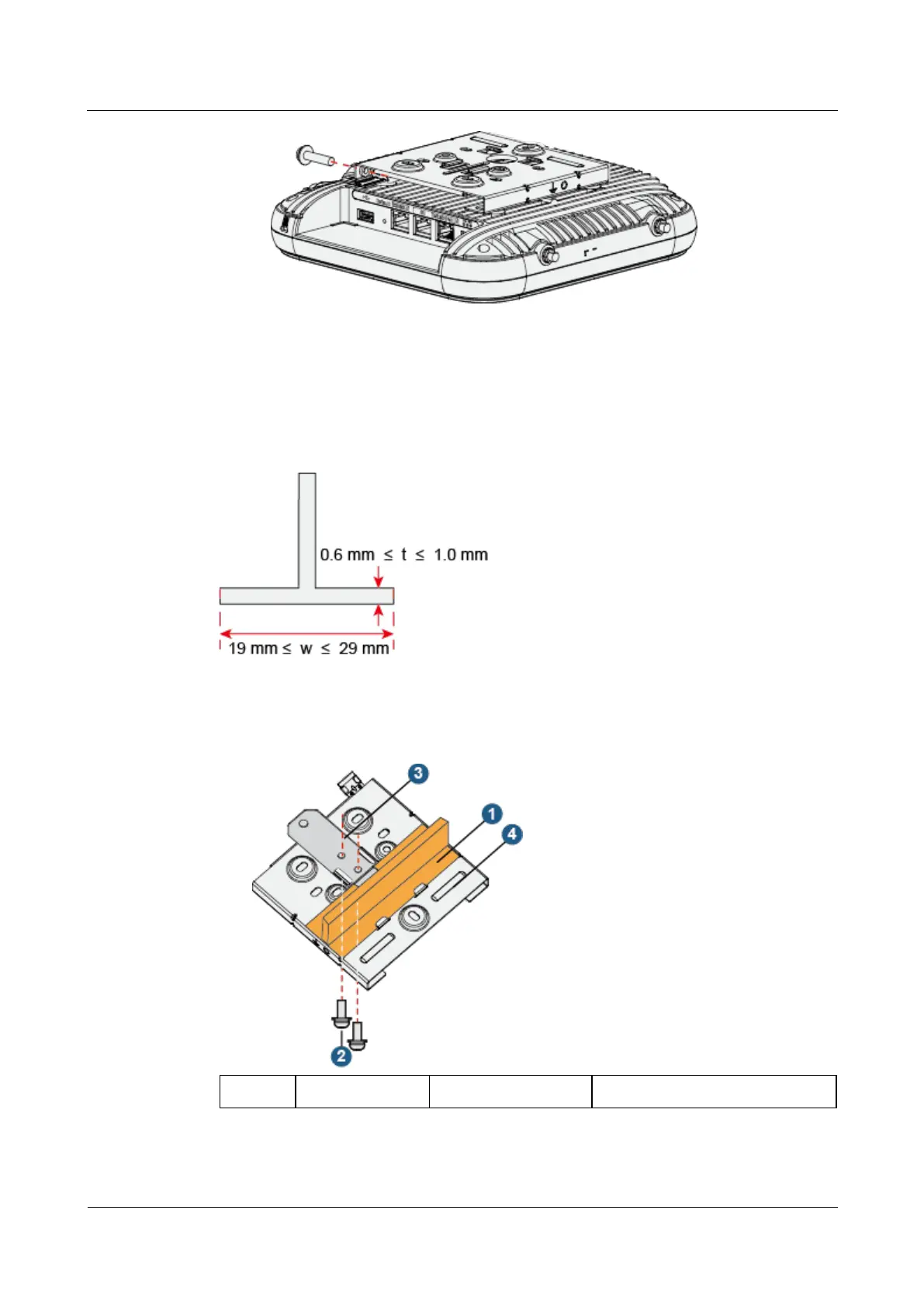

2.6.3 Installing the Device on a T-rail
A T-rail needs to bear the weight of four times the total weight of the device and mounting
bracket without damage. Figure 2-3 shows the T-rail dimensions requirements (t: thickness; w:
width).
Figure 2-3 Section of a T-rail
1. Remove two ceiling tiles around the T-rail, use screws to fix the adjustable buckle to the
mounting bracket, hook the adjustable buckle to the T-rail, and secure the screw on the
adjustable buckle to fasten the mounting bracket and T-rail.
1. T-rail
2. M4x30 Screw
3. Adjustable buckle
4. Sheet metal mounting bracket
2. Connect the cables. For details, see 2.7 Cable Connection.
