Step 7 Move the connector jacket to the connector body to wrap the connector shell, as shown in
Figure 5-74.

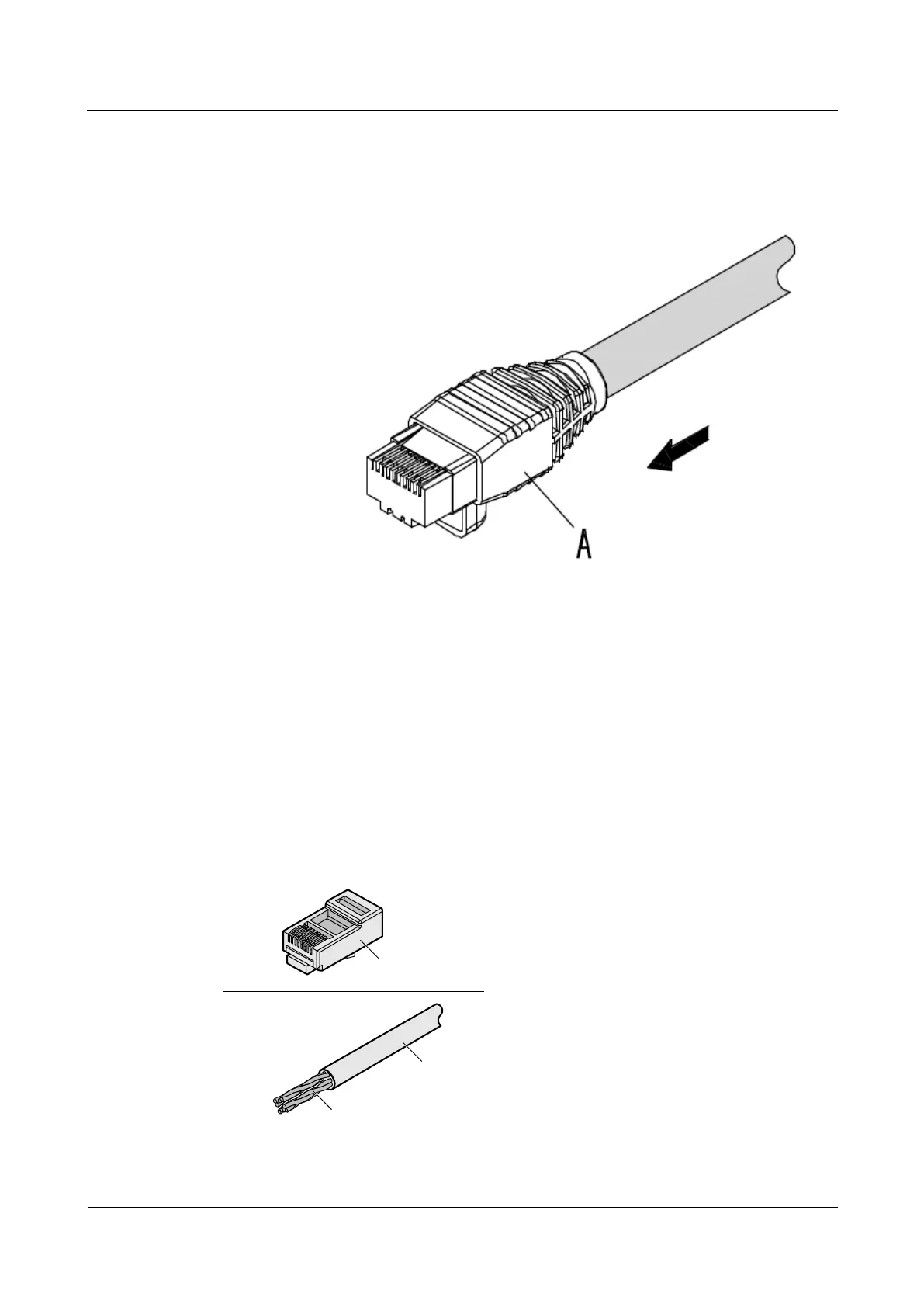

Figure 5-74 Wrapping the connector shell
Step 8 Repeat Step 1 through Step 7 to assemble the shielded RJ45 connector on the other end of the
network cable.
----End
5.1.3.5 Assembling an Unshielded RJ45 Connector and Ethernet Cable
Context
Figure 5-75 shows the components of an unshielded RJ45 connector and cable.
Figure 5-75 Components of an unshielded RJ45 connector and cable
A
B
C
A. Plug of connector
B. Jacket
C. Twisted-pair wires
