Huawei AP7052DN User Manual

AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
5 Appendix
Issue 01 (2017-12-29)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
72

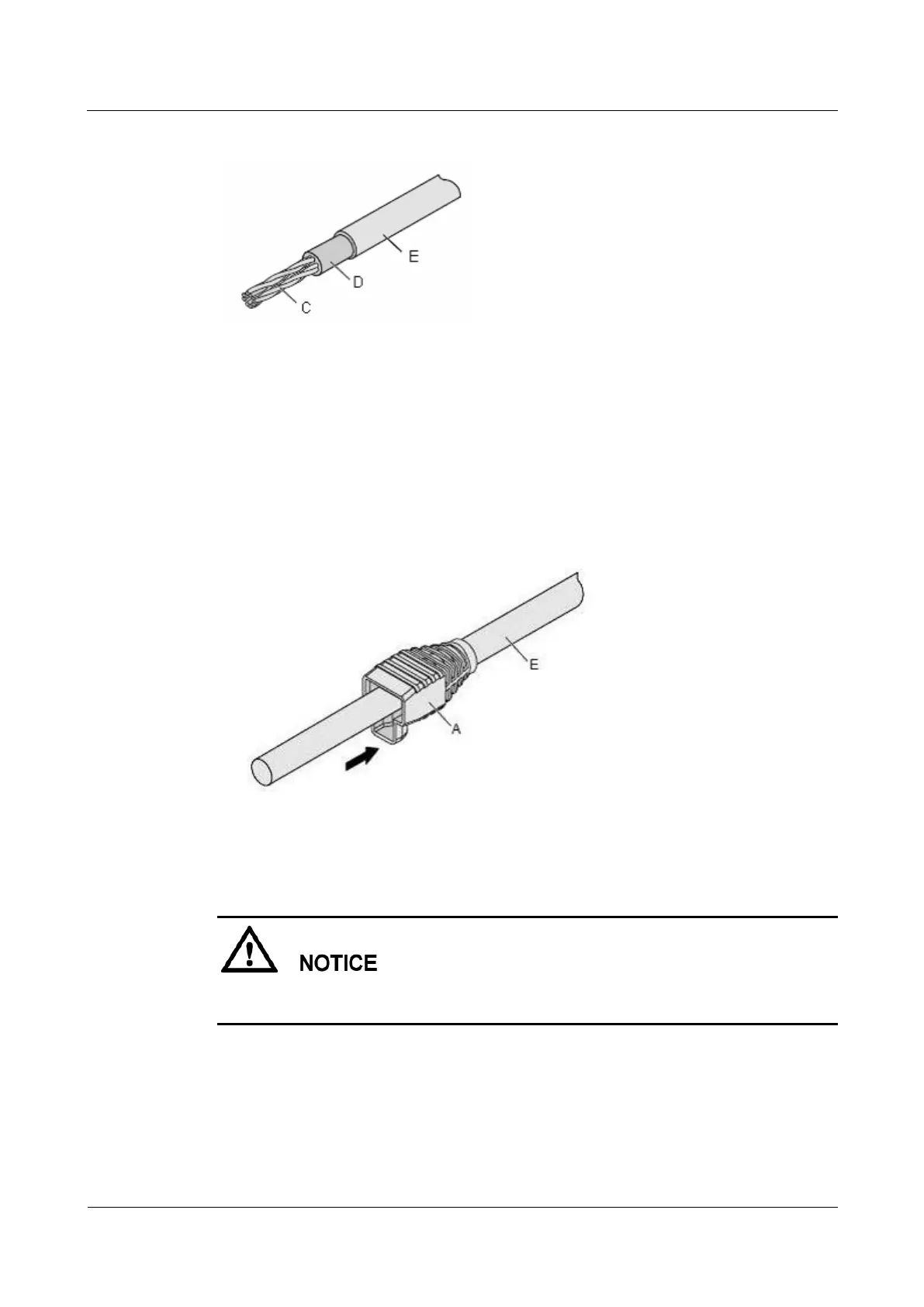

Figure 5-65 Cable
A: Connector
jacket
B:
Connector
C: Core wires
of the twisted
pair
D: Aluminum foil used
as the network cable
shield
E: Network
cable jacket
Procedure
Step 1 Route the network cable through the connector jacket, as shown in Figure 5-66.
Figure 5-66 Routing the network cable through the connector jacket
Step 2 Strip 20 mm outer jacket off the cable and cut off the nylon layer inside the jacket, as shown
in Figure 5-67.
Ensure that the aluminum foil used as a shielded layer is intact when stripping outer jackets
off the twisted pair cable.

Huawei AP7052DN Specifications

General

Brand	Huawei
Model	AP7052DN
Category	Wireless Access Point
Language	English
