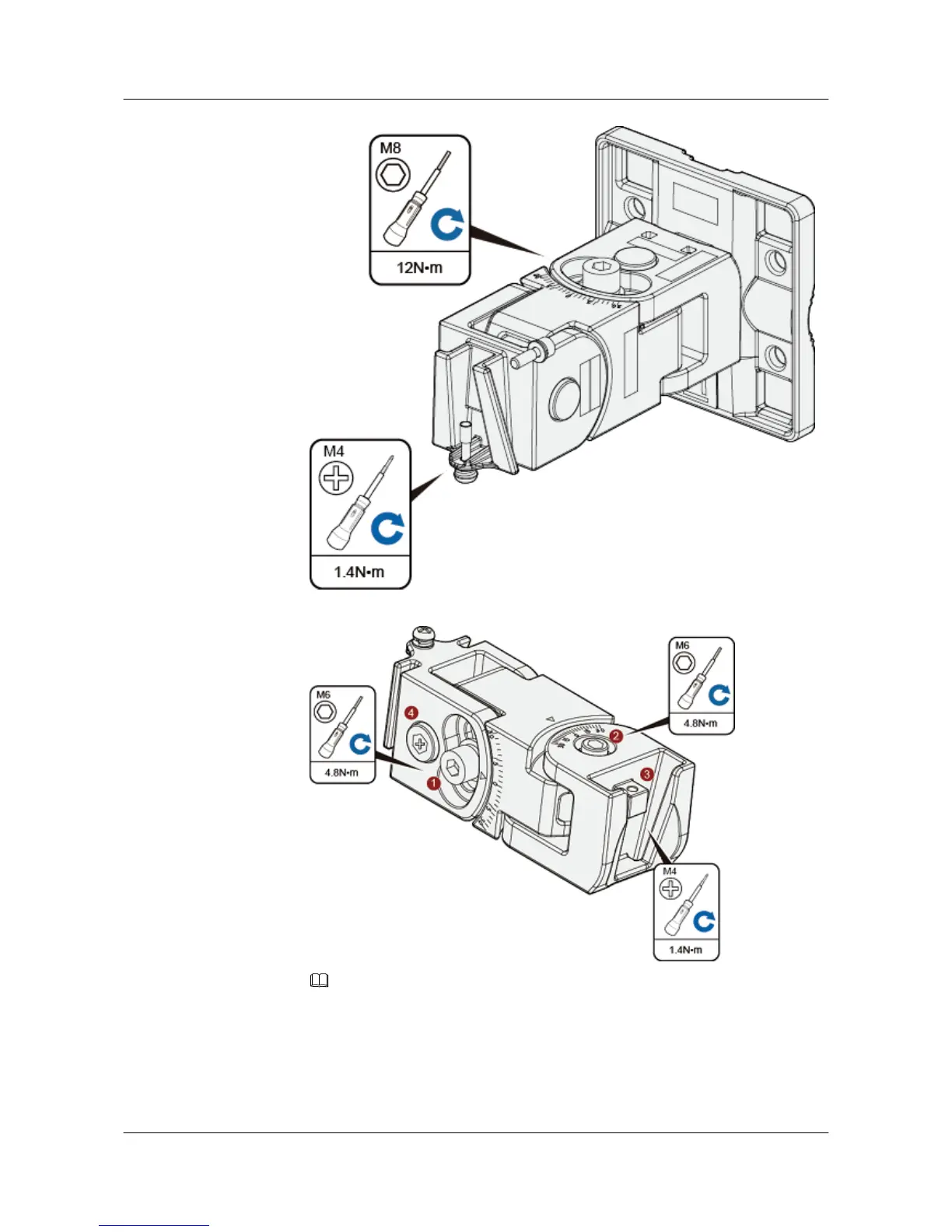

b. Loosen the screws at position 1 and position 2 using an M6 hex key.
NOTE
The screw at position 4 does not need to be loosened.
l To adjust the horizontal angle of the AP, use the M6 hex key to remove the screw
at position 2, lift the angle adjusting component vertically, and adjust the angle
adjusting component horizontally.
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide
2 AP Installation
Issue 02 (2014-12-05) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
