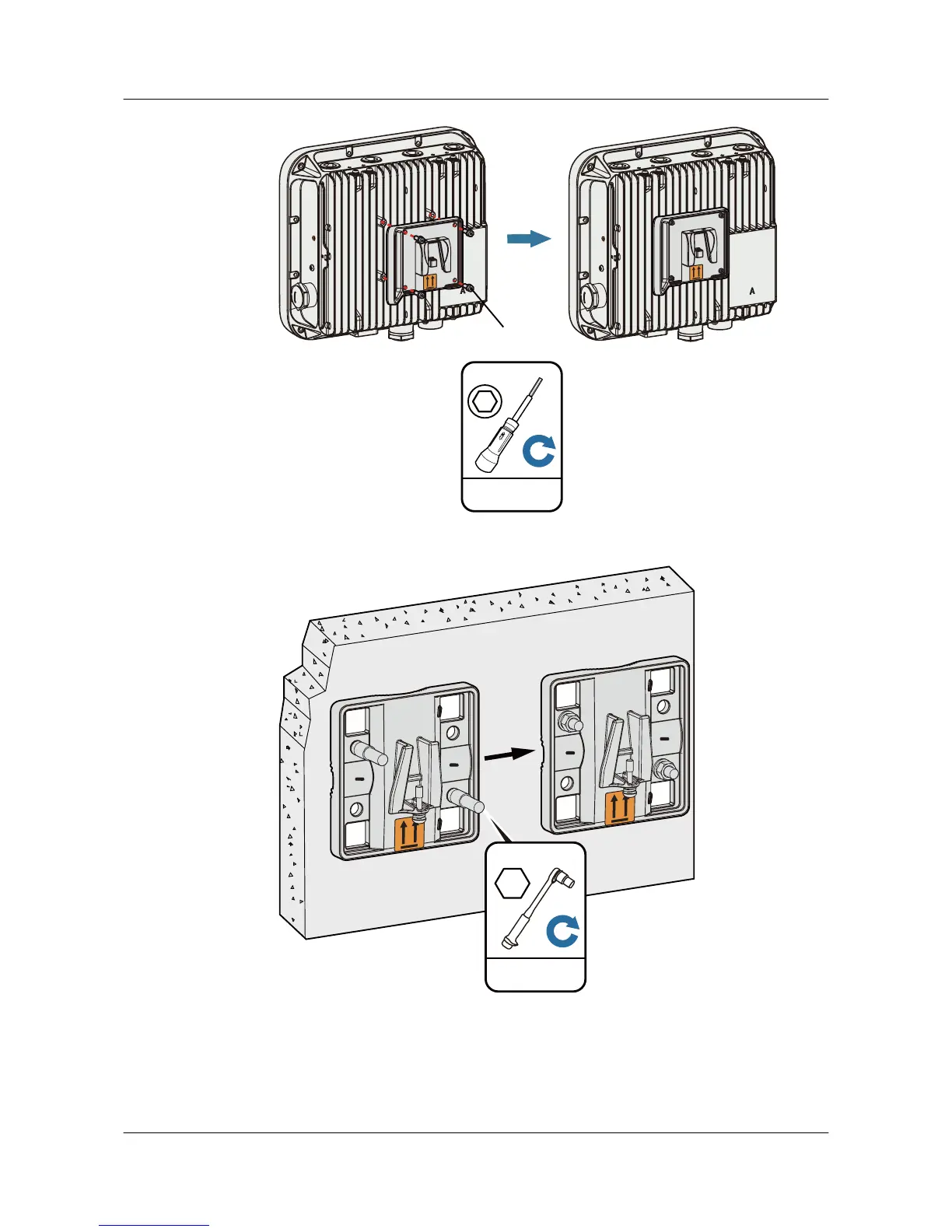

4. Hang the wall-side module of the mounting bracket on the expansion bolts and use a wrench
to fasten the flat washers, spring washers, and nuts in order.
5. Install the AP. The AP8030DN installation requires use of the angle adjusting component
but the AP8130DN does not.
Install the AP8030DN:
a. Hang the angle adjusting component on the mounting bracket and use a Phillips
screwdriver to tighten the screw at position 3, with a tightening torque of 1.4N.m.
Huawei AP8030DN & AP8130DN
Hardware Installation and Maintenance Guide
2 AP Installation
Issue 02 (2014-12-05) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
