Huawei BBU3900 - Figure 5-11 WGRU Installed in the WGRU Box; Figure 5-12 Front Panel of the WGRU

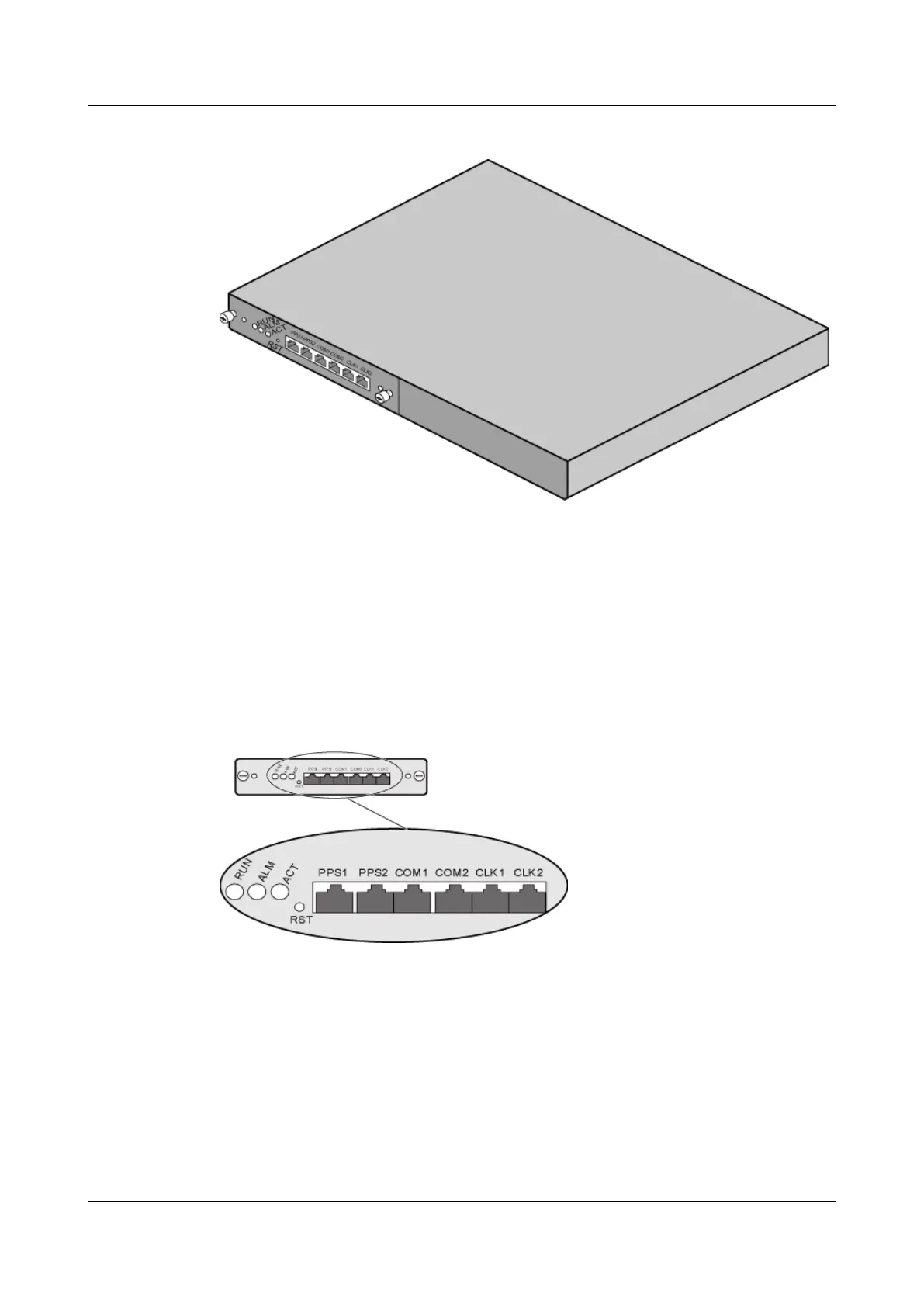

Figure 5-11 WGRU installed in the WGRU box
Panel
The components on the front panel of the WGRU suite are LEDs, RST button, and output ports.
The Figure 5-12 shows the front panel of the WGRU.
The components on the rear panel are the power input socket and the GPS signal input port. The
Figure 5-13 shows the rear panel of the WGRU box.
Figure 5-12 Front panel of the WGRU
