l Receives UL RF signals from the antenna system and then down-converts the received
signals to IF signals. After amplification, analog-to-digital conversion, digital down-
conversion, matched filtering, automatic gain control (AGC), the IF signals are sent to the
BBU for further processing.
l Implements power control and Voltage Standing Wave Ratio (VSWR) detection
l Provides reverse power detection
l Provides frequency synthesis and loopback test
l Generates the CPRI clock, recovers the CPRI clock from loss of synchronization, and
detects alarms
l Supports 40 W (2 carriers) and 80 W (4 carriers) power outputs
Principle
The WRFU consists of the high-speed interface unit, signal processing unit, power amplifier,
and duplex unit. Figure 4-37 shows the principle of the WRFU.

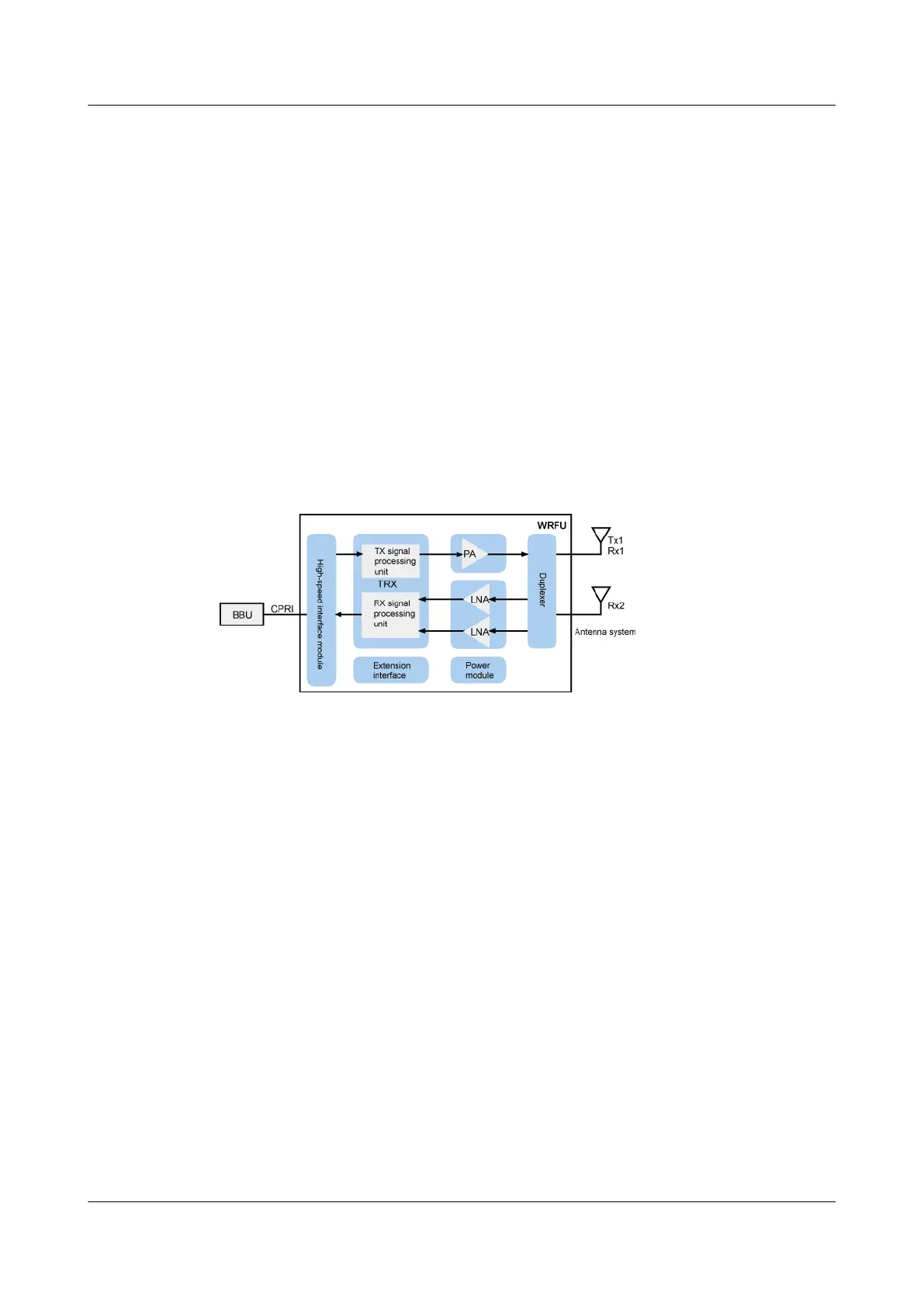

Figure 4-37 Principle of the WRFU
The high-speed interface unit has the following functions:
l Transmits the signals received from the BBU to the signal processing unit
l Transmits the signals received from the signal processing unit to the BBU
The signal processing unit consists of two UL RX channels and one DL TX channel.
l The UL RX channel has the following functions:
– Performs down-conversion of the RF signals to IF signals
– Amplifies the IF signals and performs IQ demodulation
– Converts analog signals to digital signals
– Samples digital signals
– Performs matched filtering
– Performs AGC
– Encapsulates data
l The DL TX channel has the following functions:
– Decapsulates the clock signals, control signals, and data signals from the BBU and sends
them to associated units
– Shapes and filters DL signals
