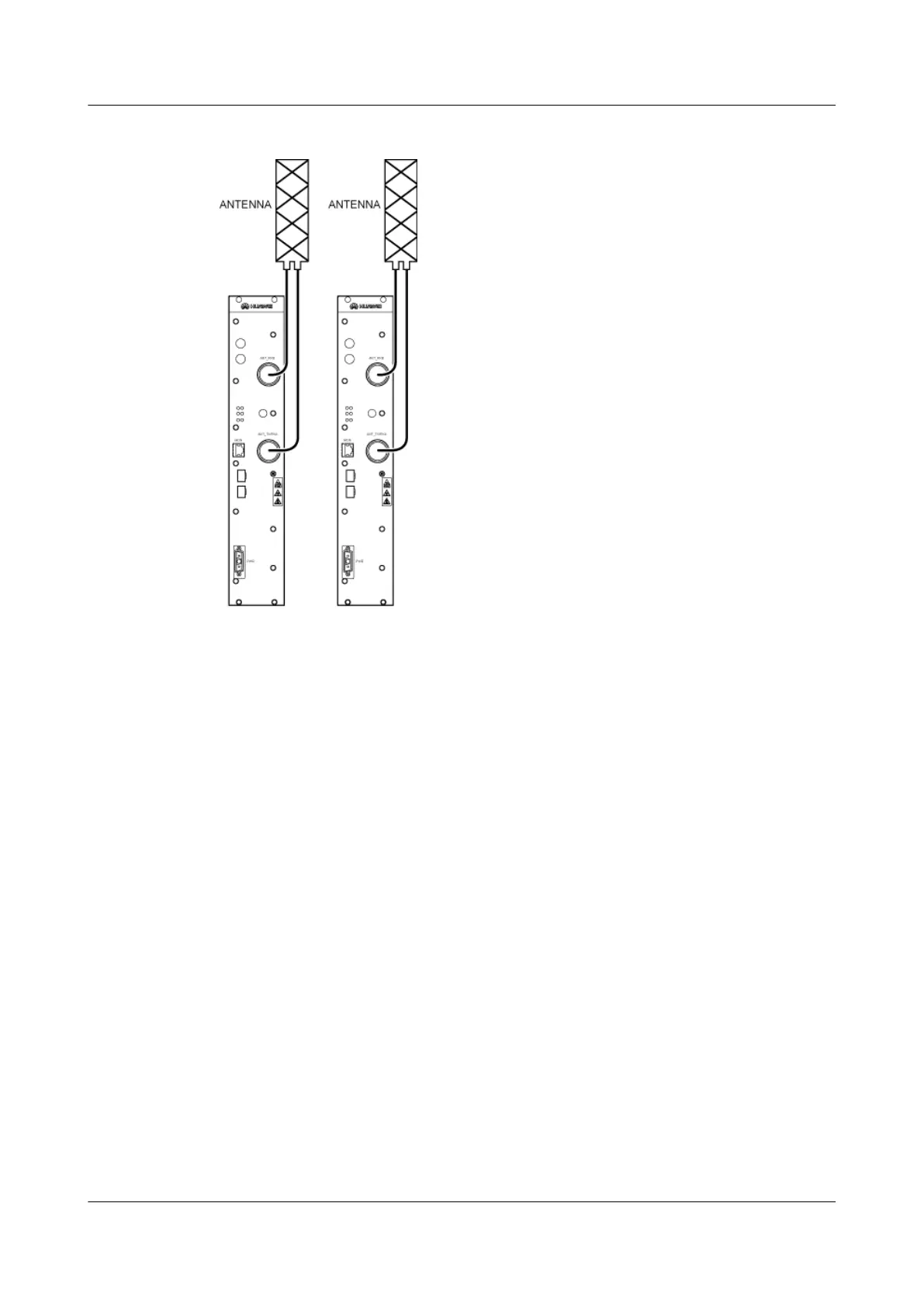

Figure 5-85 Cable connections in 2T4R mode
Cable Connections in 2x2 MIMO Mode
The base station in UMTS only mode supports 2x2 MIMO. Figure 5-84 shows the cable
connections.
RF Cable Connections for LRFUs
The LRFU supports a single carrier.
The following description is based on the RF cable connections for LRFUs supporting a single
sector.
The LRFU supports only the 2T2R configuration.
RF Cable Connections in 2T2R Mode
In 2T2R mode, the following items are configured:
l A dual-polarized antenna
l An LRFU
Figure 5-86 shows RF cable connections.
5 BTS3900 Cables
BTS3900
Hardware Description
5-62 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 04 (2011-02-15)
