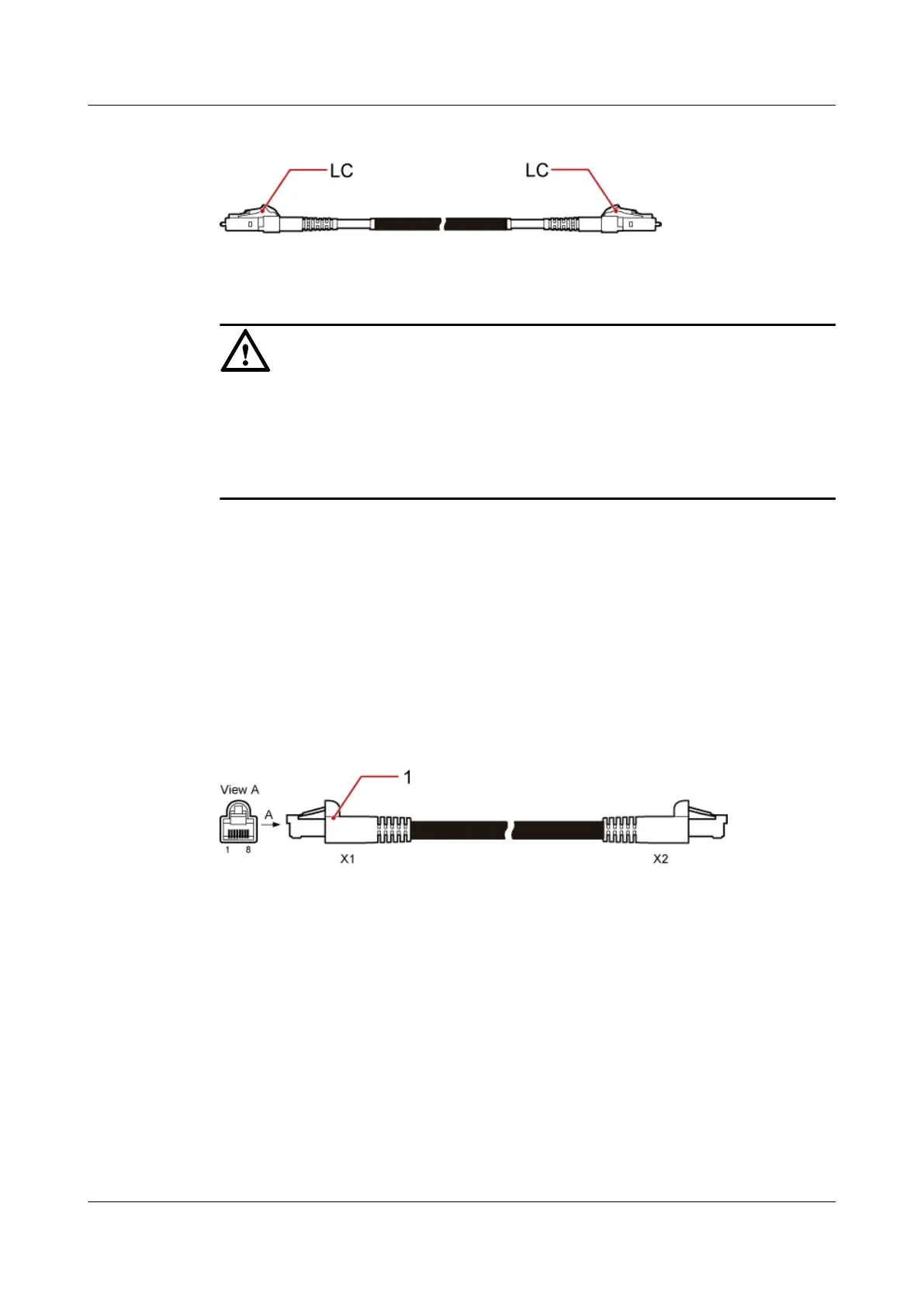

Figure 5-105 FE/GE optical cable (LC and LC connectors)
CAUTION
When connecting the BBU3900 and the transmission device using the FE/GE optical cable,
adhere to the following rules:
l The TX port on the BBU3900 is connected to the RX port on the transmission device.
l The RX port on the BBU3900 is connected to the TX port on the transmission device.
5.6.4 Cable Between Two FE Electrical Ports
The cable between two FE electrical ports connects the GTMU and the WMPT to implement IP
transmission.
Structure
The cable between two FE electrical ports has an RJ-45 connector at each end, as shown in
Figure 5-106.
Figure 5-106 Cable between two FE electrical ports
(1) RJ-45 connector
5.6.5 Cable Between Two FE Optical Ports
The cable between two FE optical ports connects the GTMU and the WMPT to implement IP
transmission.
Structure
The cable between two FE optical ports has an LC connector at each end, as shown in Figure
5-107.
BTS3900
Hardware Description 5 BTS3900 Cables
Issue 04 (2011-02-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5-79
