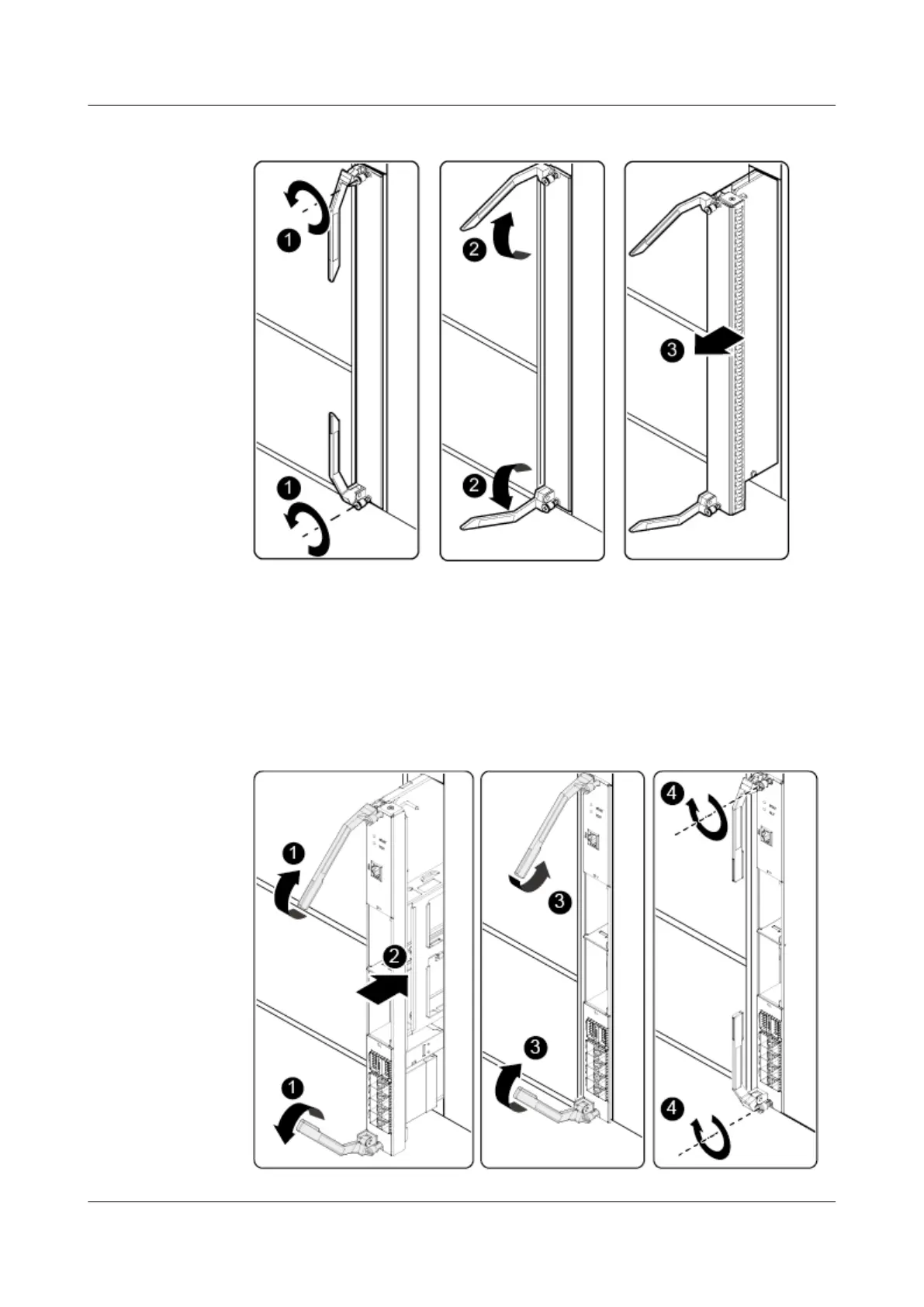

Figure 3-3 Removing the switch module filler panel
2. Raise the two handles on the switch module filler panel completely, and pull the filler
panel horizontally out of the chassis. See (2) and (3) in Figure 3-3.
3. Store the switch module filler panel for future use.
Step 4 Install the CX320.
1. Raise the two ejector levers on the CX320 completely and push the CX320 horizontally
into the chassis as far as it will go. See (1) and step (2) in Figure 3-4.
Figure 3-4 Installing the CX320
CX320 Switch Module
User Guide
3 Installing and Removing the CX320
