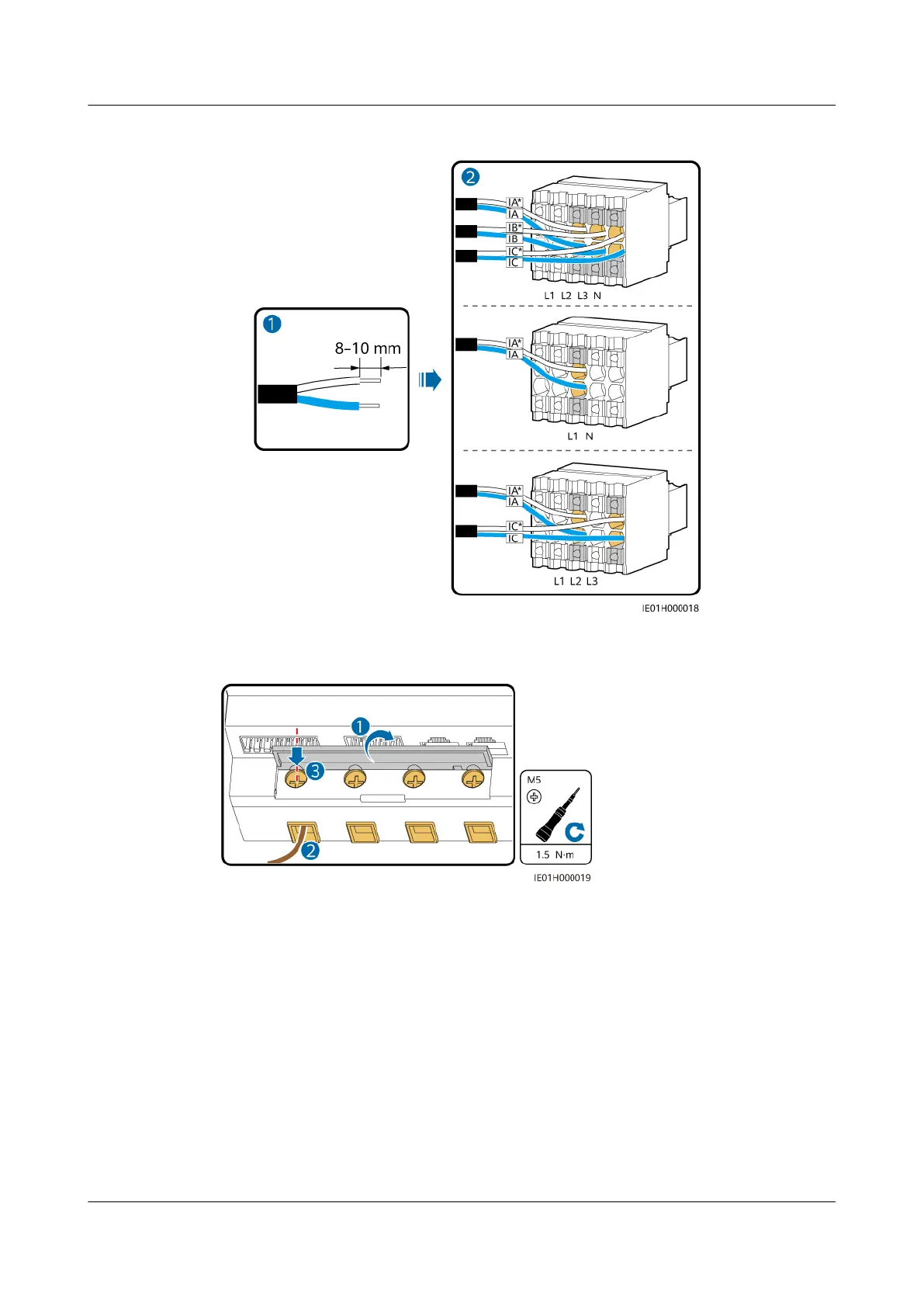

Figure 5-6 Connecting the external CT cables to the 10-pin connector
Step 2 Open the protective cover of the cable xing screw, insert the AC power cable into
the AC input port, and tighten the screw.
Step 3 Connect all AC power cables and external CT cables based on the power grid
connection.
