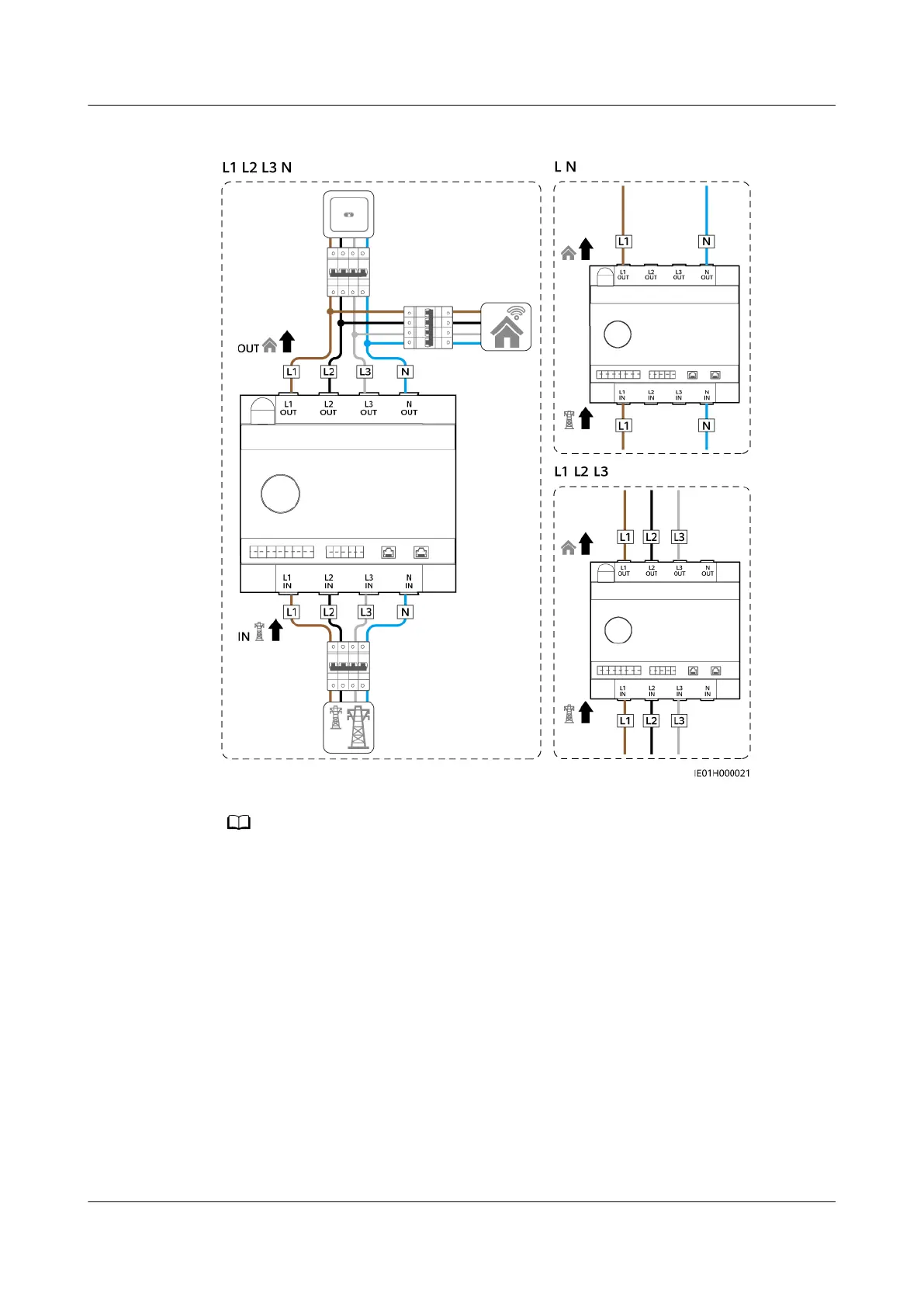

Figure 5-7 Internal CT connection (current ≤ 63 A)
In the single-phase cable connection scenario (L N), you are advised to connect cables to
the L1 and N terminals on the EMMA.
EMMA-(A01, A02)
User Manual 5 Electrical Connections
Issue 05 (2024-01-19) Copyright © Huawei Digital Power Technologies Co., Ltd. 33
