Huawei FusionServer Pro 2288X V5 - Mainboard Description; 2.10.1 Mainboard

2.10.1 Mainboard

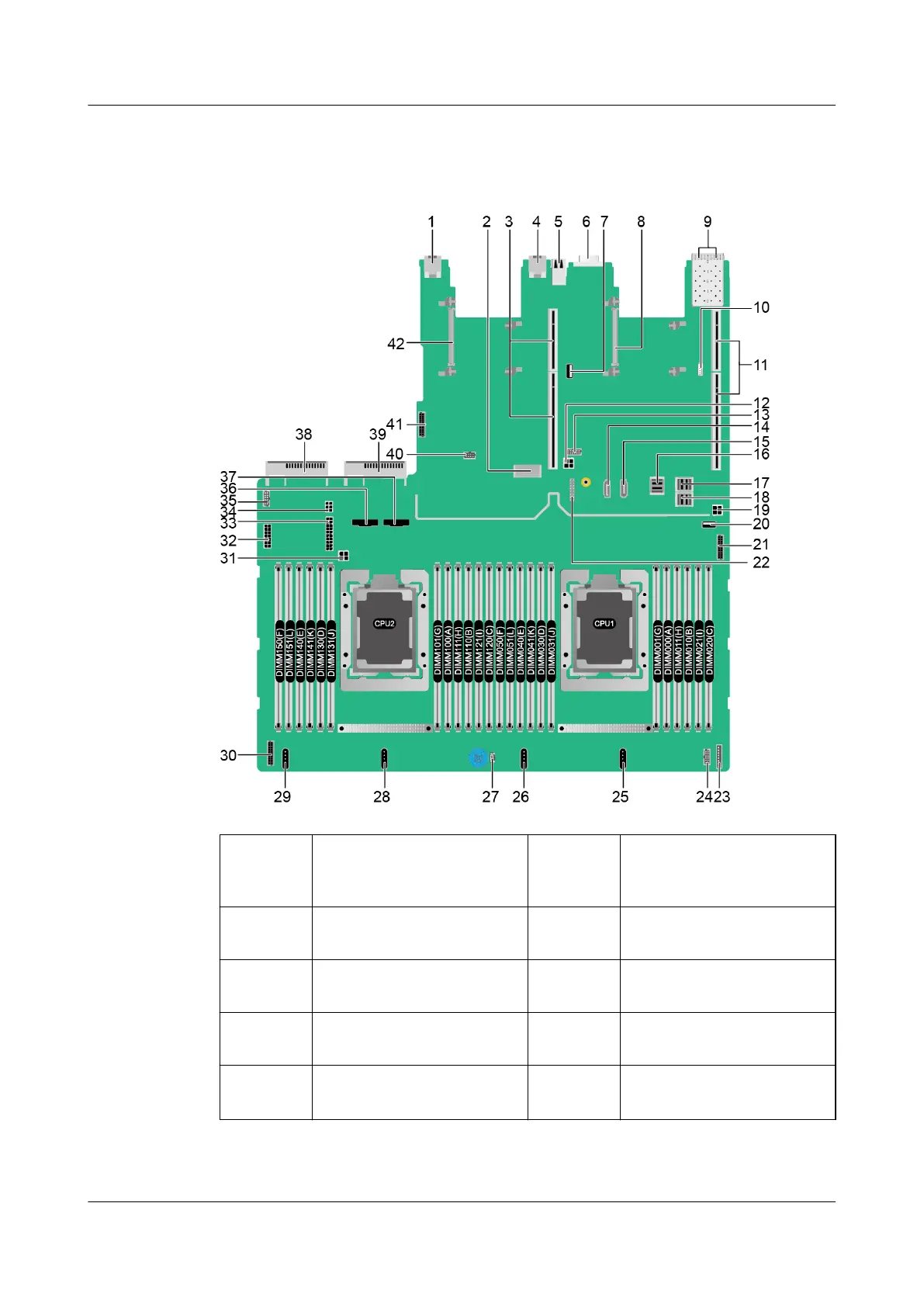

Figure 2-42 2288X V5 mainboard
1 Serial port (COM/J177) 2 RAID controller card
connector (RAID CARD/
J48)
3 PCIe riser 2 slots (PCIE
RISER2 (CPU2)/J115/J116)
4 Management network
port (BMC GE/J180)
5 2 x USB 3.0 ports (USB3.0
CONN/J169)
6 VGA connector (VGA/
J112)
7 USB 3.0 port (INNER
USB3.0/J181)
8 OCP 2.0 mezzanine card 1
slot (OCP1/J178)
9 2 x 10GE optical ports
(10GE PORT/J88/J89)
10 VROC key port (VROC
KEY/J130)
a
FusionServer Pro 2288X V5 Server
User Guide 2 Hardware Description
Issue 04 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 47
