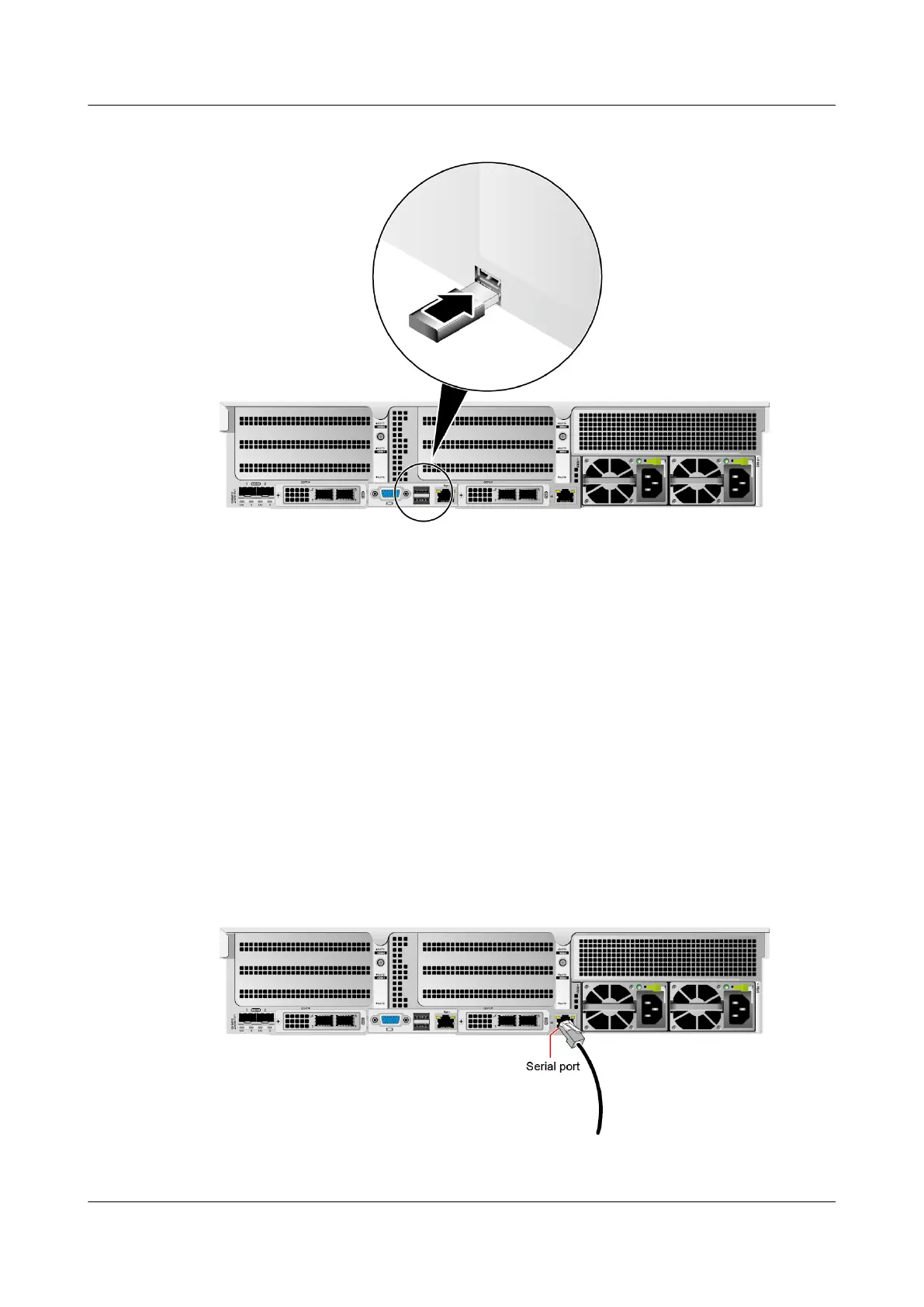

Figure 7-20 Connecting a USB device
----End
7.2.6.6 Connecting a Serial Cable
The rear panel of the server provides a standard RJ45 serial port (3-wire), which
works as the system serial port by default. You can set it as the iBMC serial port
by using the iBMC CLI.
The serial port can be used as:
● System serial port to monitor the OS status
● iBMC serial port for debugging and fault locating
Procedure
Step 1 Connect the serial cable.
Figure 7-21 Connecting a serial cable
----End
