Huawei FusionServer Pro 2288X V5 - Rear Panel Appearance; 2.2.1 Appearance

Port Type
Quantity
Note
Description
USB 3.0 1
NOTICE
Before connecting an external
USB device, check that the USB
device functions properly. The
server may operate abnormally if
an abnormal USB device is
connected.
Note: The number of ports varies depending on server conguration. This table
lists the maximum number of ports in dierent congurations.
2.2 Rear Panel
2.2.1 Appearance

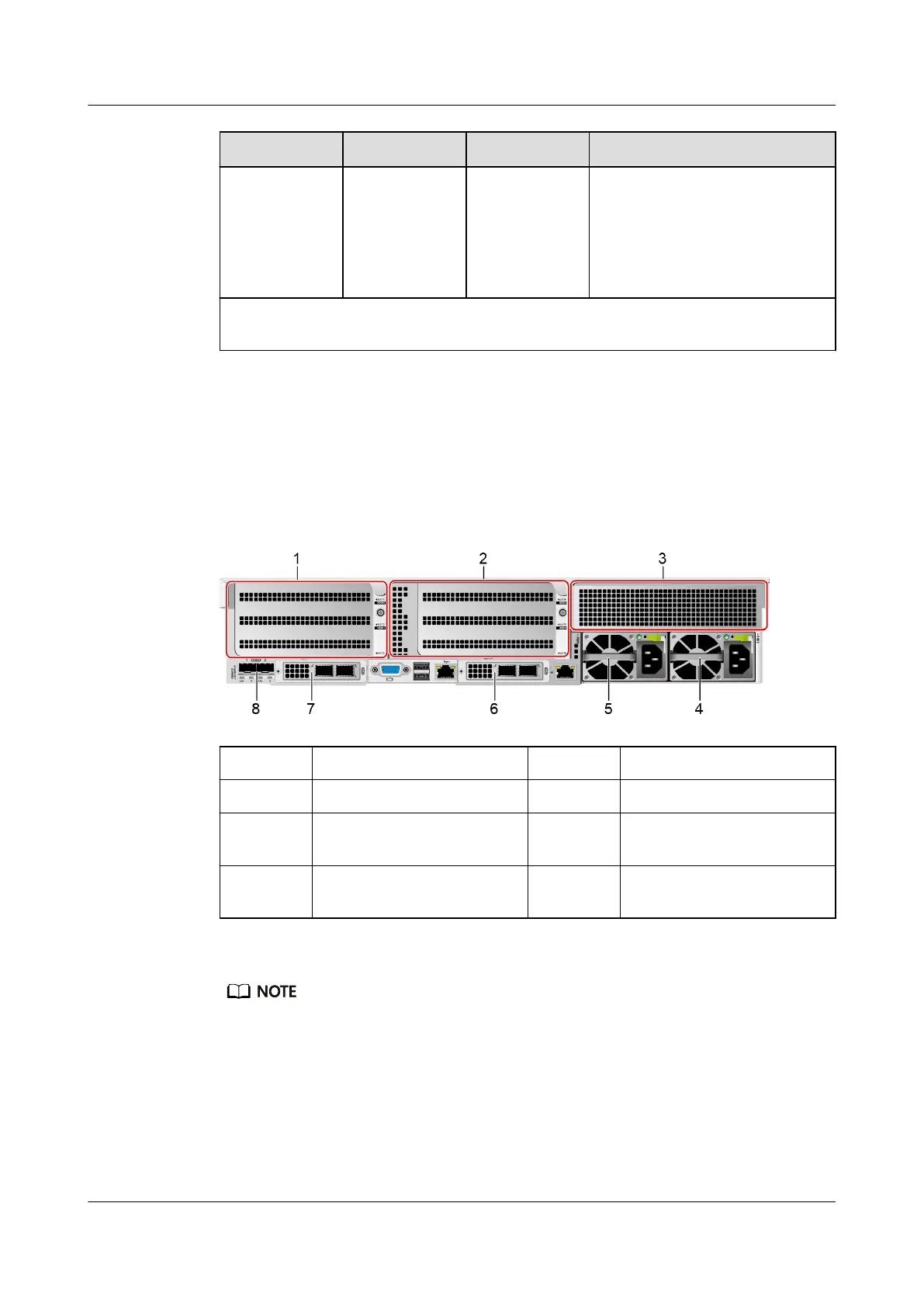

Figure 2-13 Rear view
1 I/O module 1 2 I/O module 2
3 I/O module 3 4 PSU 2
5 PSU 1 6 (Optional) OCP 2.0
mezzanine card 2
7 (Optional) OCP 2.0
mezzanine card 1
8 LOM
● I/O module 1 can be congured with a PCIe riser module or a module with drives and
PCIe card.
● I/O modules 2 and 3 can be congured with drive modules or PCIe riser modules.
● For details about the LOM and OCP 2.0 mezzanine card, see 2.6 Network.
● The preceding gure is for reference only.
