1 USB 2.0 ports - -
● 24 x 2.5" drive conguration

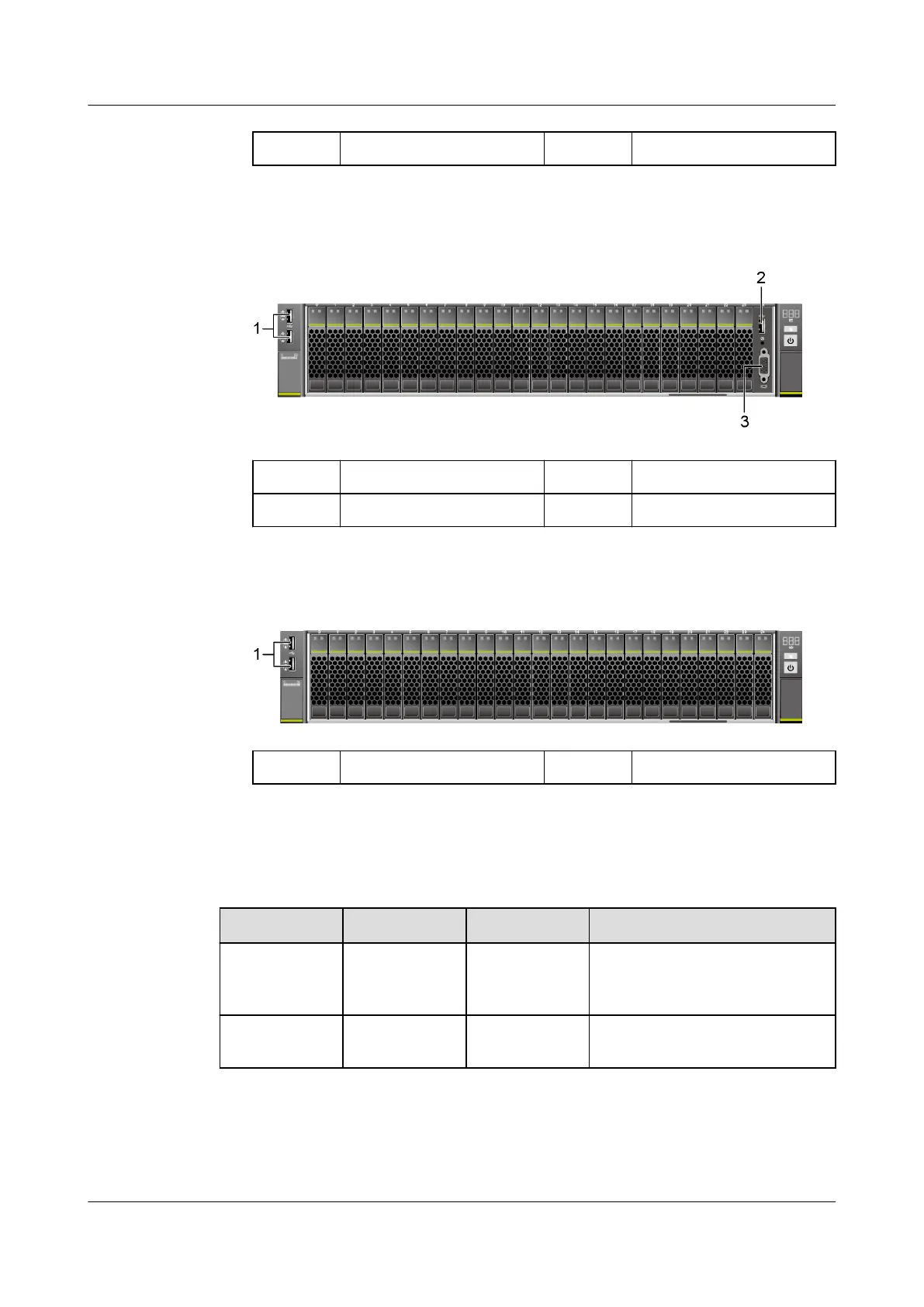

Figure 2-11 Ports on the front panel
1 USB 2.0 ports 2 USB 3.0 port
3 VGA port - -
● 25 x 2.5" drive
conguration
Figure 2-12 Ports on the front panel
1
USB 2.0 ports - -
Port Description
Table 2-2 Ports on the front panel
Port
Type
Quantity
Note
Description
VGA port DB15 1 Used to connect a display
terminal, such as a monitor or
KVM.
USB port USB 2.0 2 Used to connect to a USB
device.
