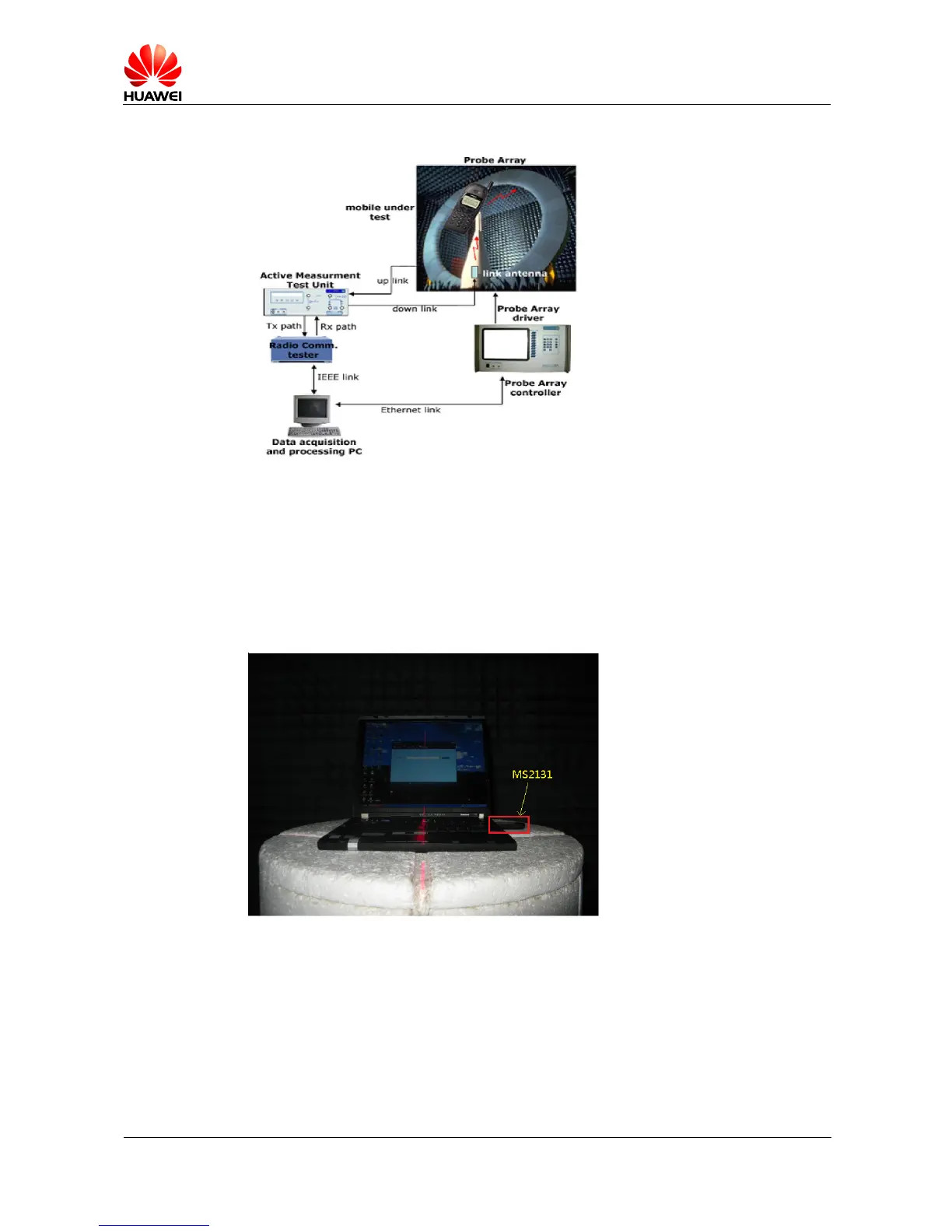

Figure 5-5 SATIMO microwa ve testing chamber system
− Auxiliary dedicated test platform:
Design the MS2131 dedicated test platform based on the stacking layout in Figure 5-2. Figure
5-6 shows the platform where a Thinkpad T61 is used. This dedicated platform simulates the
actual system layout to the maximum extent and all the tests and commissioning on the
MS2131 are performed in the platform.
Figure 5-6 Dedicated test platform
