6.3 MS2131 Design Requirements Addressing the Host
Structure
6.3.1 USB Connector Outline Dimensions
A standard USB2.0 connector, shown in Figure 6-2, is used for the MS2131. The thickness of
the PCB where the connector is inserted must range from 0.6 mm to 1.0 mm. The
recommended thickness is 0.8 mm.

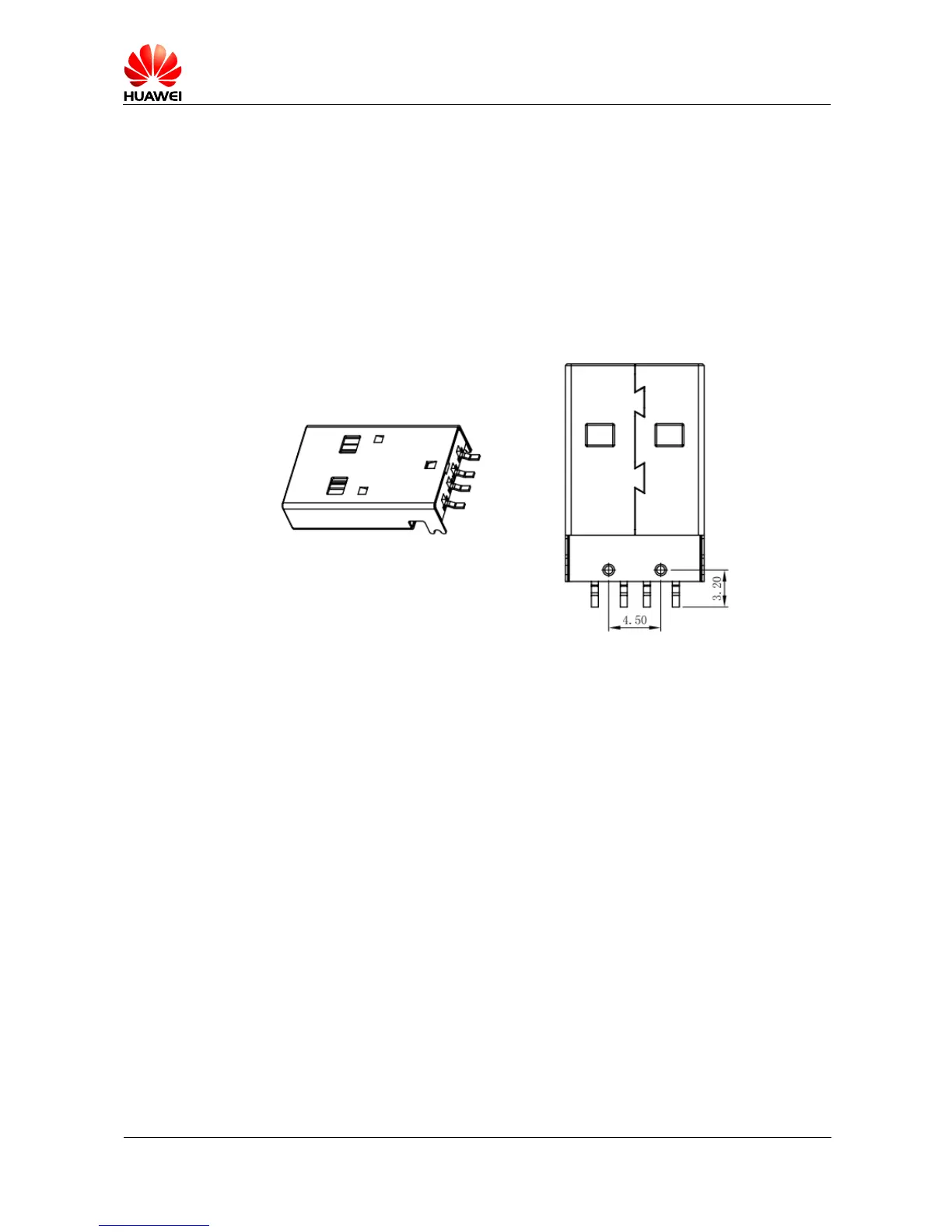

Figure 6-2 USB connector for the MS2131
