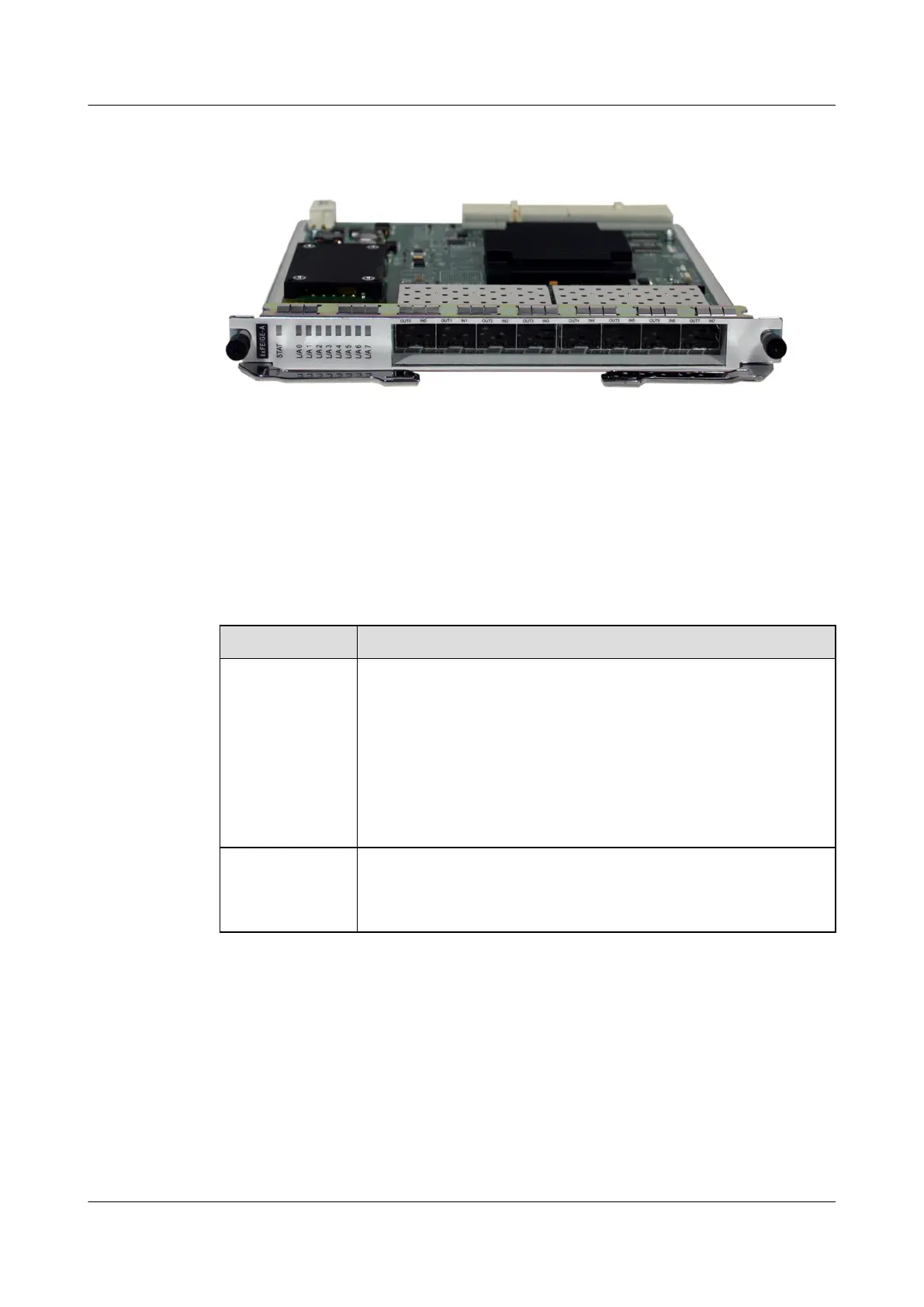

Figure 3-2 Outline of the 8-Port 100/1000Base-X-SFP High-speed Interface Card A (HIC,
Supporting 1588v2)
Panel Description
Table 3-8 lists the functions of the indicators on the 8-Port 100/1000Base-X-SFP High-speed
Interface Card A (HIC, Supporting 1588v2).
Table 3-8 Functions of the indicators on the8-Port 100/1000Base-X-SFP High-speed Interface
Card A (HIC, Supporting 1588v2)
Indicator
Meaning
STAT If the indicator is steady green, it indicates that the FPIC works normally.
If the indicator is off, it indicates that the FPIC is powered off or is not
registered.
If the indicator is steady red, it indicates that the hardware on the FPIC
is faulty.
If the indicator is steady yellow, it indicates that the FPIC is installed in
a slot for a HIC and an alarm is reported or the FPIC is not loaded with
the logic.
LINK/ACT
(green)
If the indicator is steady green, it indicates that links are Up.
If the indicator blinks, it indicates that data is being transmitted.
If the indicator is off, it indicates that the link is Down.
Interface Attributes
Table 3-9 lists the attributes of the interfaces on the 8-Port 100/1000Base-X-SFP High-speed
Interface Card A (HIC, Supporting 1588v2).
HUAWEI NE40E-X1 & NE40E-X2 Universal Service
Router
Hardware Description 3 Boards
Issue 02 (2011-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
