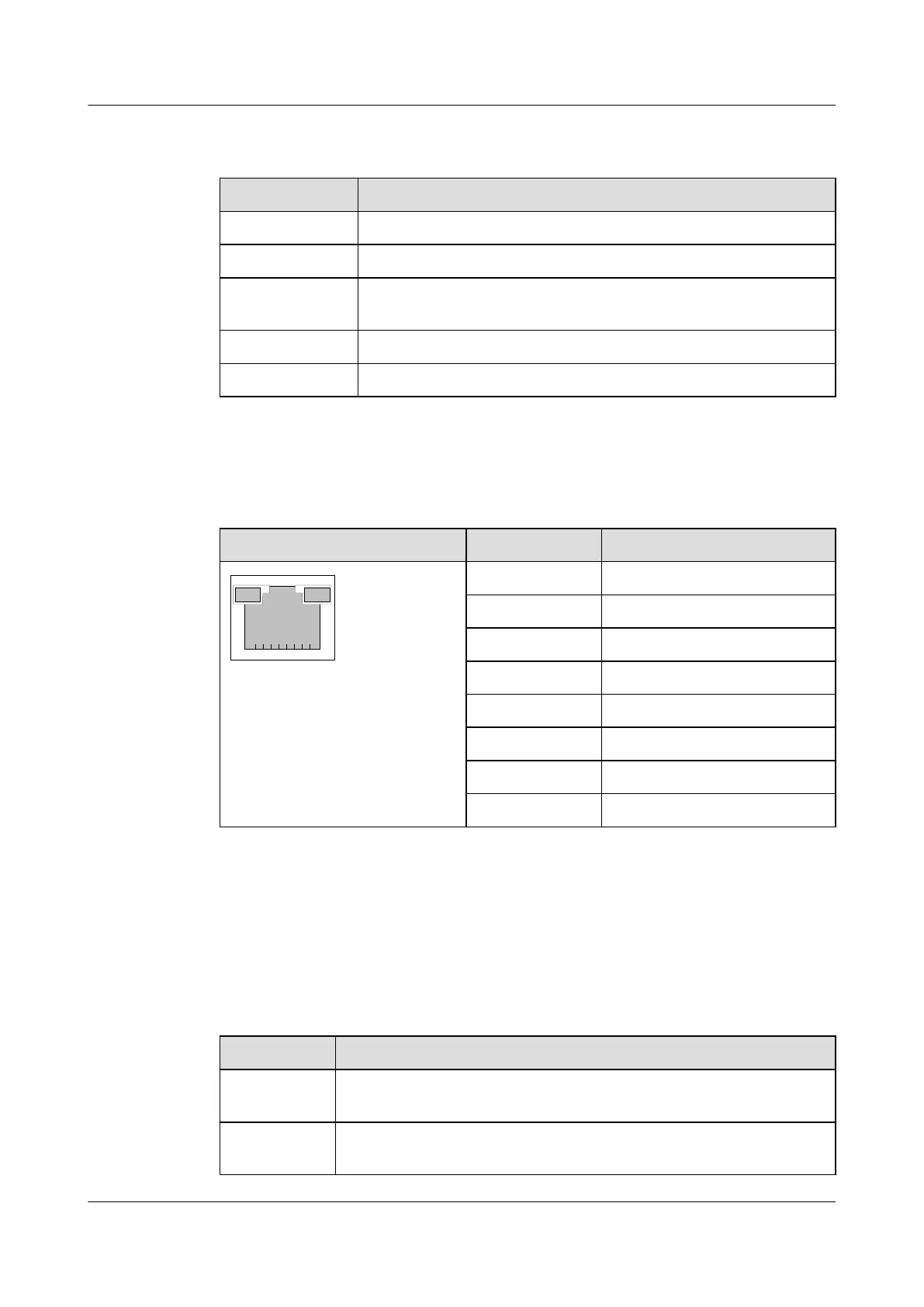

Table 3-34 Interface attributes of the Auxiliary Flexible Interface Card with 4-Port 100Base-
RJ45(FIC, Supporting 1588v2)
Attribute Description
Connector RJ45
Working mode Full-duplex
Standard
compliance
IEEE 802.3-2002
Frame format Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network protocol IP
Table 3-35 describes the pins of the ALMI interface.
Table 3-35 Pins of the ALMI interface
Front View Pin Usage
1
Alarm input signal 1
2 Ground for alarm input signal 1
3 Alarm input signal 2
4 Alarm input signal 3
5 Ground for alarm input signal 3
6 Ground for alarm input signal 2
7 Alarm input signal 4
8 Ground for alarm input signal 4
Technical Specifications
Table 3-36 lists the technical specifications of the Auxiliary Flexible Interface Card with 4-Port
100Base-RJ45(FIC, Supporting 1588v2).
Table 3-36 Technical specifications of the Auxiliary Flexible Interface Card with 4-Port
100Base-RJ45(FIC, Supporting 1588v2)
Item
Description
Silkscreen
print
AUX/4xFE-A
Typical power
consumption
10 W
HUAWEI NE40E-X1 & NE40E-X2 Universal Service
Router
Hardware Description 3 Boards
