When the DIP switch is ON, the value of the corresponding bit is set to 0.
As shown in Figure 4-3, the value represented by the ID5-ID1 is 000001, which is 1 in
decimal system. That is, the subrack ID is 1.

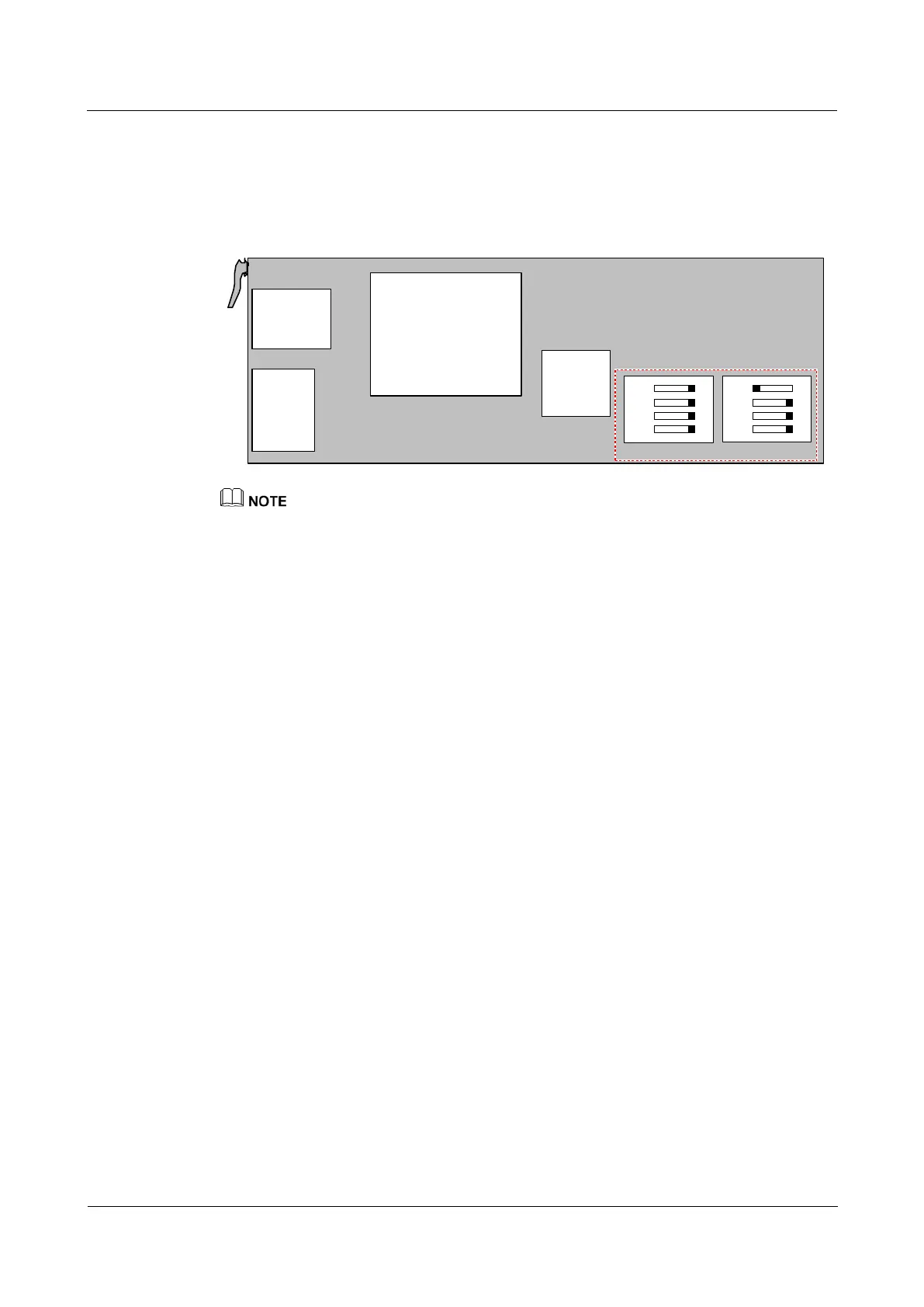

Figure 4-3 Position of the DIP switches on the EFI1 board
NM_ETH2
SERIAL
CPLD
ON
SW1
(ID5)
ON
ON
ON
ON
SW2
ON
ON
ON
(ID6)
(ID7)
(ID8)
(ID1)
(ID2)
(ID3)
(ID4)
Ensure that the ID6 to ID8 switches are turned on as shown in Figure 4-3.
