2 Configuring the IPMI Settings
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
25

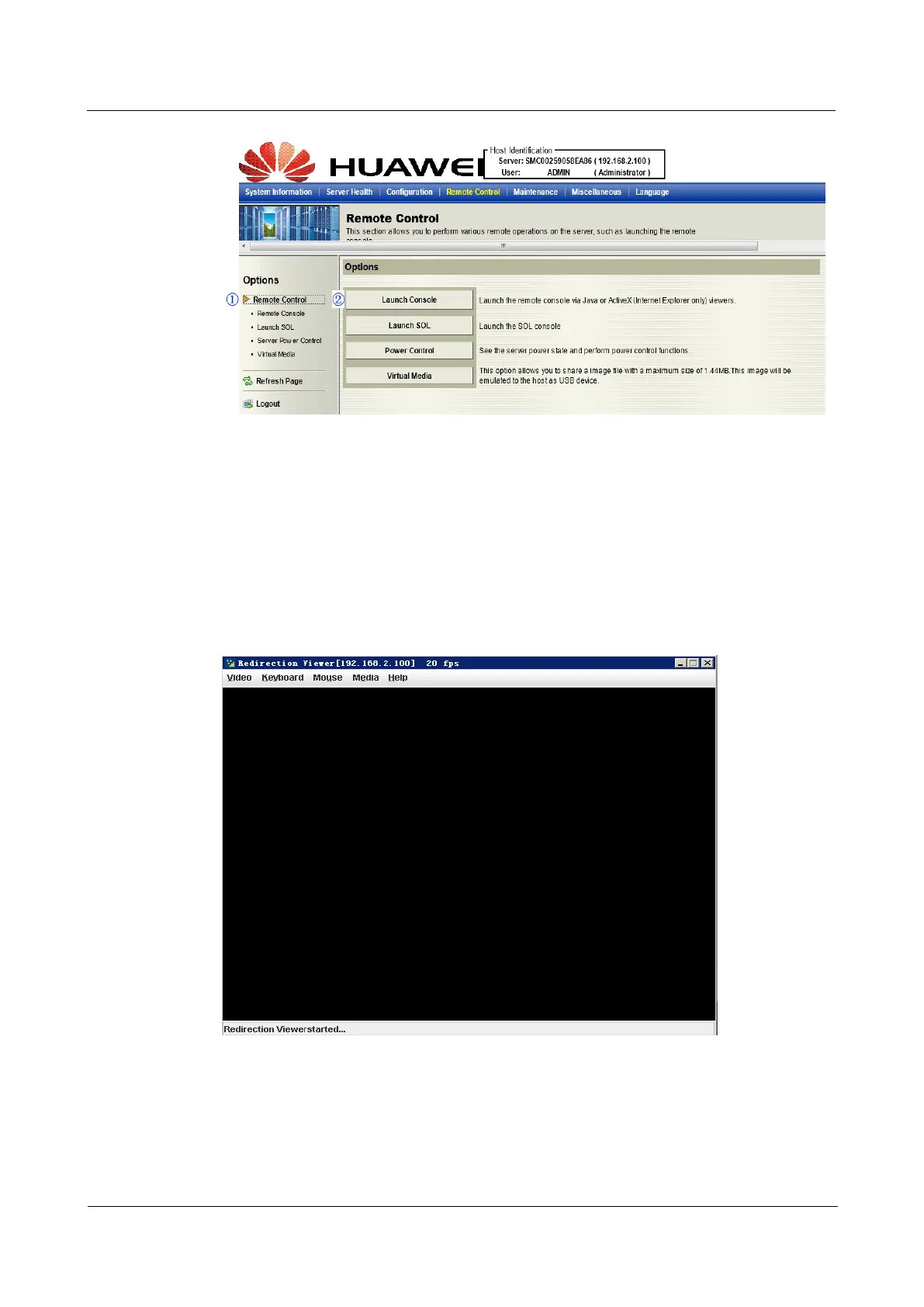

Follow the instructions below to launch the remote console.
1. Remote Control: Check this item to enable remote console support and manage the
server from a remote site via Java or Active X (for Internet Explorer).
2. Launch Console: Click this button to launch the remote console via the Java script.
3. Java Starting: Upon launching the remote console, a screen will display indicating that
Java is starting.
After the remote console is launched, the screen of the client system will display as shown
below.
Remote Console - Video
This feature allows you to configure video settings for your remote console. When you click
Video in the Menu bar, the video settings of the remote console will display as shown below.
User Guide
Issue 04 (2014-09-15)
RH2488 V2 BMC
