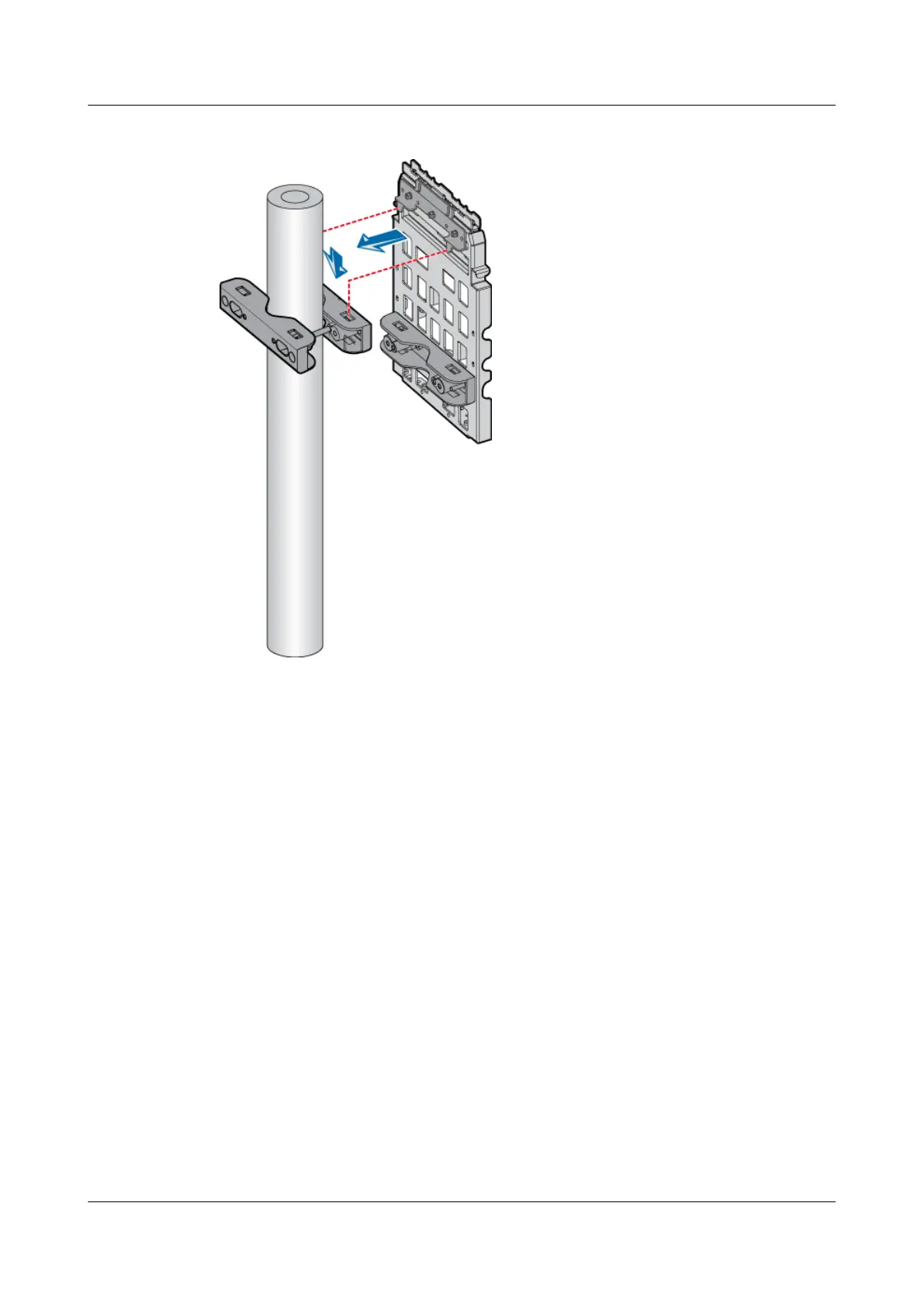

Figure 3-36 Installing the mounting plate
Step 8 Mount the fourth pole fixture to the metal pole by tightening two bolts M10 x 110 between the
third and the fourth pole fixtures, as shown in Figure 3-37.
3 Installing RRU and SRXU Hardware
RRU
User Guide
3-34 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
Issue 01 (2008-04-18)
