Huawei RRU - Figure 3-38 Installed Expansion Bolt Assemblies and the RRU; Figure 3-39 Determining the Anchor Points

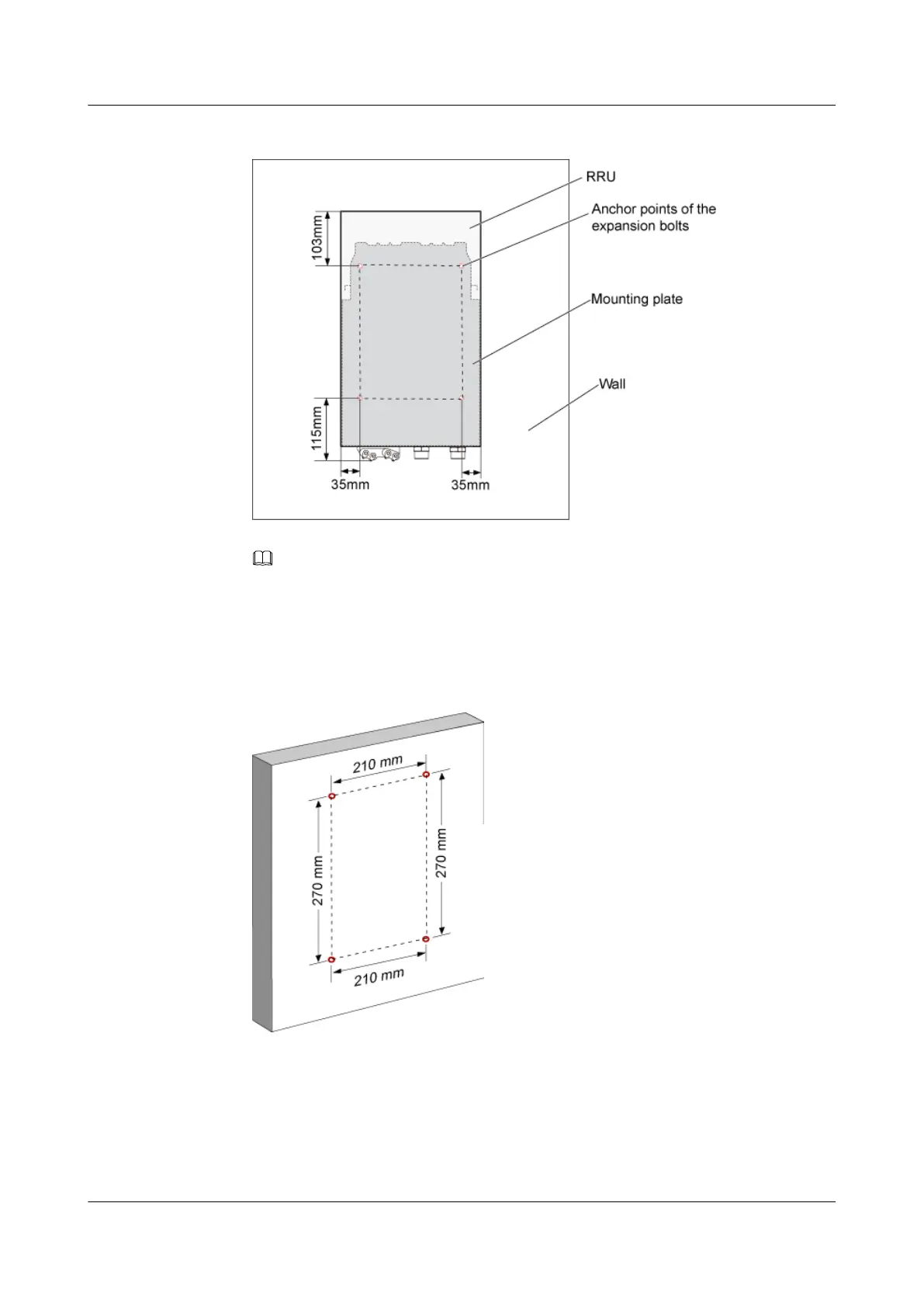

Figure 3-38 Installed expansion bolt assemblies and the RRU
NOTE
It is recommended that the bottom of the mounting plate be 1,200 mm to 1,600 mm above the ground.
2. Place the mounting plate against the wall, and then use the marking pen to mark the four
anchor points. You can also mark four points according to the inter-hole distance, as shown
in Figure 3-39.
Figure 3-39 Determining the anchor points
Step 2 Drill a hole at each anchor point and install the expansion bolt assembly, as shown in Figure
3-40.
