Huawei SUN2000-3.8KTL-USL0 - Page 4

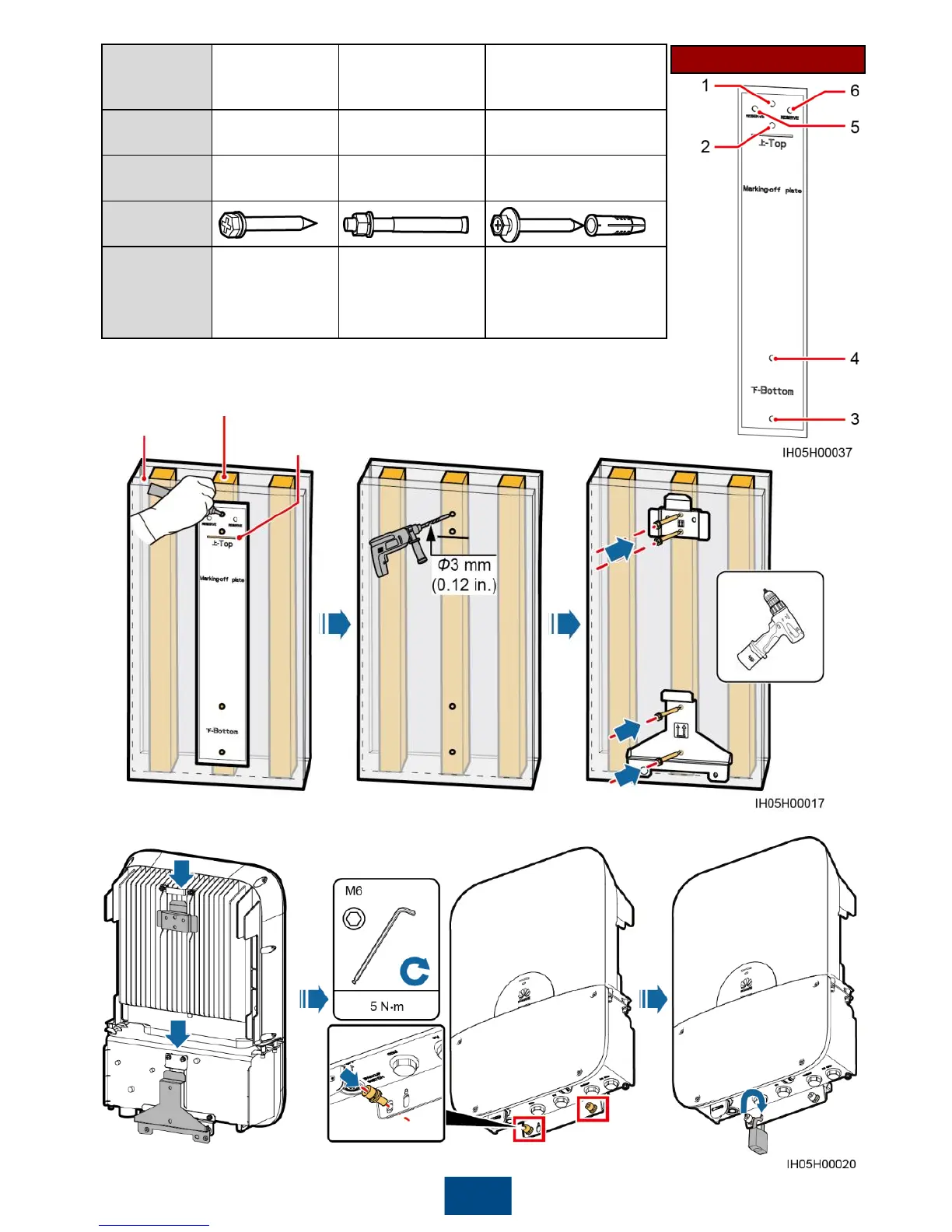

1. Install the mounting bracket (for example, on a frame post).
Marking-off Template
Load
-
Bearing
Structure
Frame post
(recommended)
Brick wall/Fiber
-
cement composite
panel
Plywood
Tightening
Screw
Type
M6 tapping
screw
M6 expansion bolt
M6 expansion anchor
screw
Screw
Quantity
4 PCS
4 PCS
4 PCS
Screw
Appearance
Hole
Combination
in Marking
-
off Template
1, 2, 3, 4
3, 4, 5, 6
3,
4, 5, 6
Frame post
Bottom alignment line for the
mounting bracket (top)
3
2. Install the SUN2000 on the
mounting bracket.
3. Tighten the hex socket
screws.
4. (Optional) Install an anti-
theft lock.
Wall panel
