Huawei SUN2000-33KTL Quick Installation Guide

1
1
System Installation
Vertical Backward Forward Horizontal Upside down
Inverter Model
SUN2000-33KTL
SUN2000-40KTL
Weight
50 kg
Dimensions (H x W x D)
770 mm x 550 mm x 270 mm
Installation dimensions Chassis dimensions
Copyright © Huawei Technologies Co., Ltd. 2015. All rights
reserved.

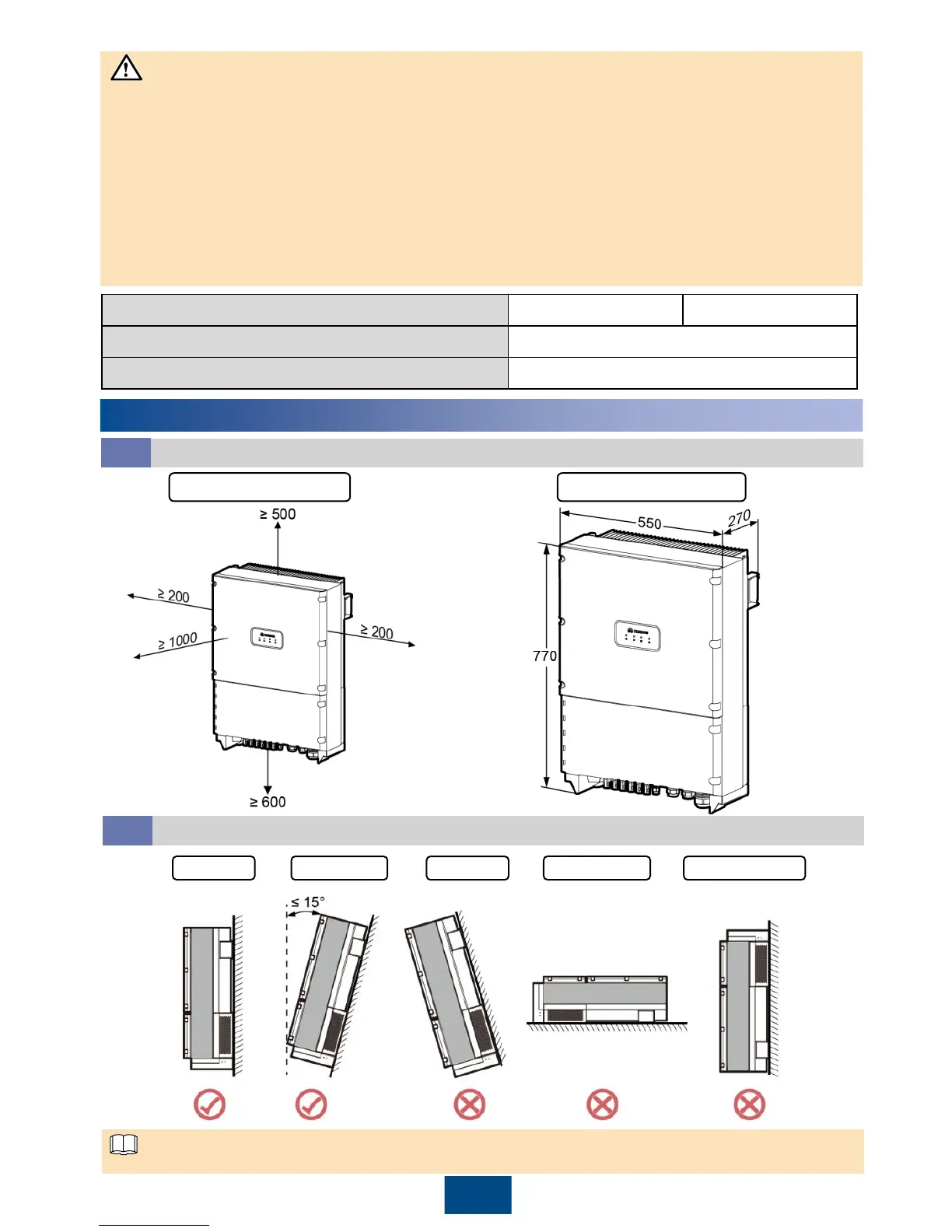

Determining the Installation Position (Unit: mm)
1.1
In a vertical support, install the device vertically or with a backward tilt of no more than 15 degrees.
1. The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all statements,
information, and recommendations in this document do not constitute a warranty of any kind,
express or implied.
2. Before installing the device, read the SUN2000-(33KTL, 40KTL) User Manual for knowledge of
product information and safety precautions. To obtain the user manual, log in to
http://support.huawei.com/carrier/ and browse or search for SUN2000 on the Product Support
page.
3. Install and use the device according to this document and the user manual. Otherwise, the
device may be damaged. Use insulated tools when installing the device.
NOTICE
NOTE
Determining the Installation Mode
1.2

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
