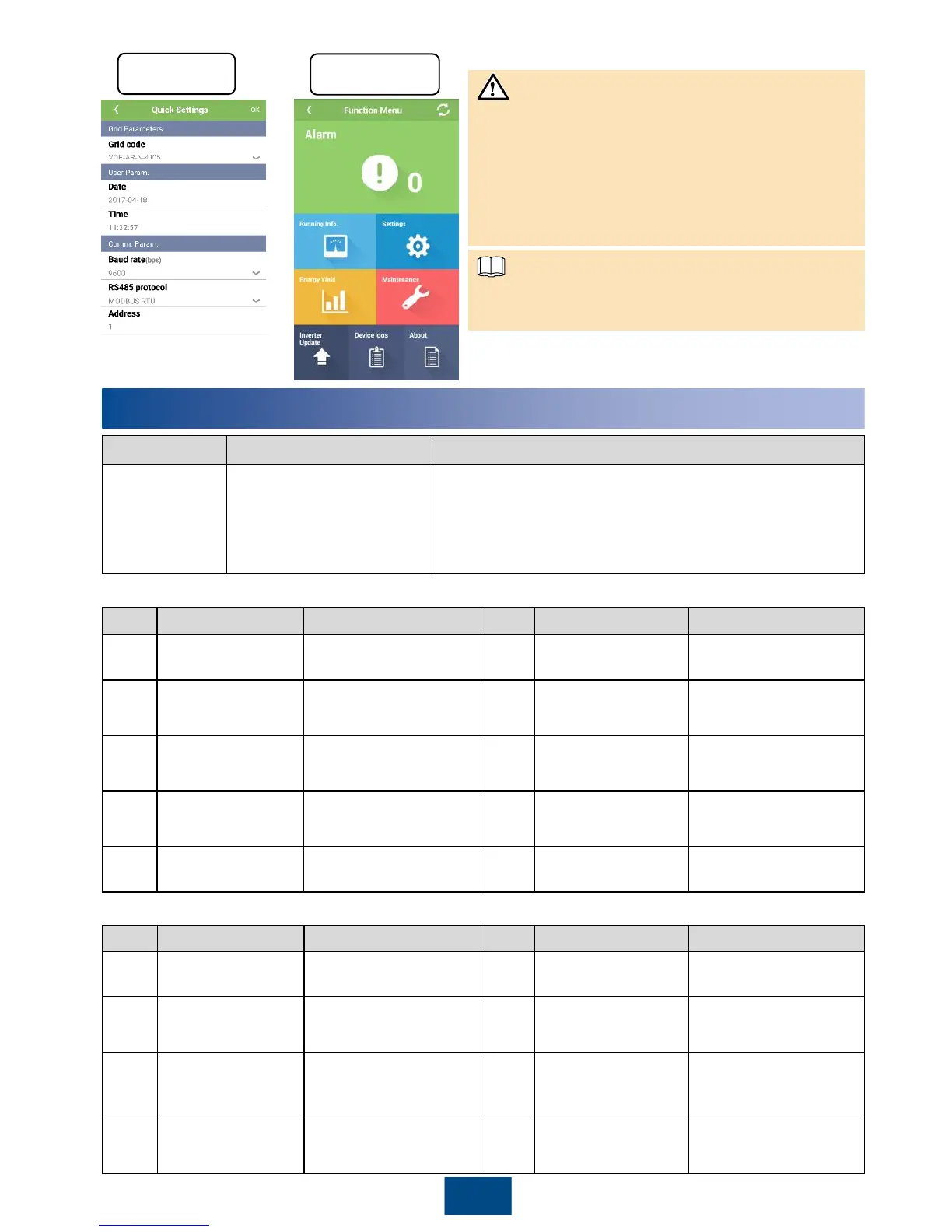

Set the correct grid code based on the
application area and scenario of the SUN2000.
The preset password for Common User,
Advanced User, and Special User is 00000a.
Use the preset password upon initial login. To
ensure account security, change the
password immediately after login.
The screenshots in this document correspond
to app 2.1.20.101 (Android).
NOTICE
NOTE
Function menu
Quick setting
18
8
Common Faults and Troubleshooting
Symptom
Possible Cause
Suggestion
String Reverse
The PV string cables are
connected reversely
during the SUN2000
installation.
Wait until the solar irradiance declines at night and the
PV string current reduces to below 0.5 A. Then, turn off
the two DC switches, remove the positive and negative
connectors, and correct the polarity of the DC input
power cable.
Appendix 1: Power Grid Codes (SUN2000-33KTL-A)
No. Power Grid Code Description No. Power Grid Code Description
1 VDE-AR-N-4105
Germany low-voltage
power grid
2 UTE C 15-712-1(A)
France mainland low-
voltage power grid
3 UTE C 15-712-1(B)
France islands 230 V
50 Hz
4 UTE C 15-712-1(C)
France islands 230 V
60 Hz
5 CEI0-21
Italy low-voltage power
grid
6 RD1699/661
Spain low-voltage
power grid
7
PO12.3
Spain low-voltage
power grid
8 CEI0-16
Italy low-voltage power
grid
9
EN50438-TR
Turkey low-voltage
power grid
N/A N/A N/A
Appendix 2: Power Grid Codes (SUN2000-36KTL)
No. Power Grid Code Description No. Power Grid Code Description
1 VDE-AR-N-4105
Germany low-voltage
power grid
2 NB/T 32004
China low-voltage
power grid
3 UTE C 15-712-1(A)
France mainland low-
voltage power grid
4 UTE C 15-712-1(B)
France islands 230 V
50 Hz
5 UTE C 15-712-1(C)
France islands 230 V
60 Hz
6 BDEW-MV
Germany medium-
voltage power grid
(BDEW-MV)
7 G59-England
England 230 V power
grid (I > 16 A)
8 G59-Scotland
Scotland 240 V power
grid (I > 16 A)
