Huawei SUN2000-36KTL Quick Guide

1
Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.
1
Overview
1. The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all statements,
information, and recommendations in this document do not constitute a warranty of any kind,
express or implied.
2. Before device installation, carefully read the SUN2000-(33KTL-A, 36KTL, 42KTL) User Manual
to get familiar with product information and safety precautions.
3. Only qualified and trained electrical technicians are allowed to operate the device. Operators
should understand the components and functioning of a grid-tied PV power system and be
familiar with relevant local standards.
4. Before installing the device, check that deliverables are intact and complete against the packing
list. If any damage is found or any component is missing, contact the dealer.
5. Use insulated tools when installing the device. For personal safety, wear insulation gloves and
protective shoes.
6. Huawei shall not be liable for any consequence caused by violation of the storage,
transportation, installation, and operation regulations specified in this document and the user
manual.

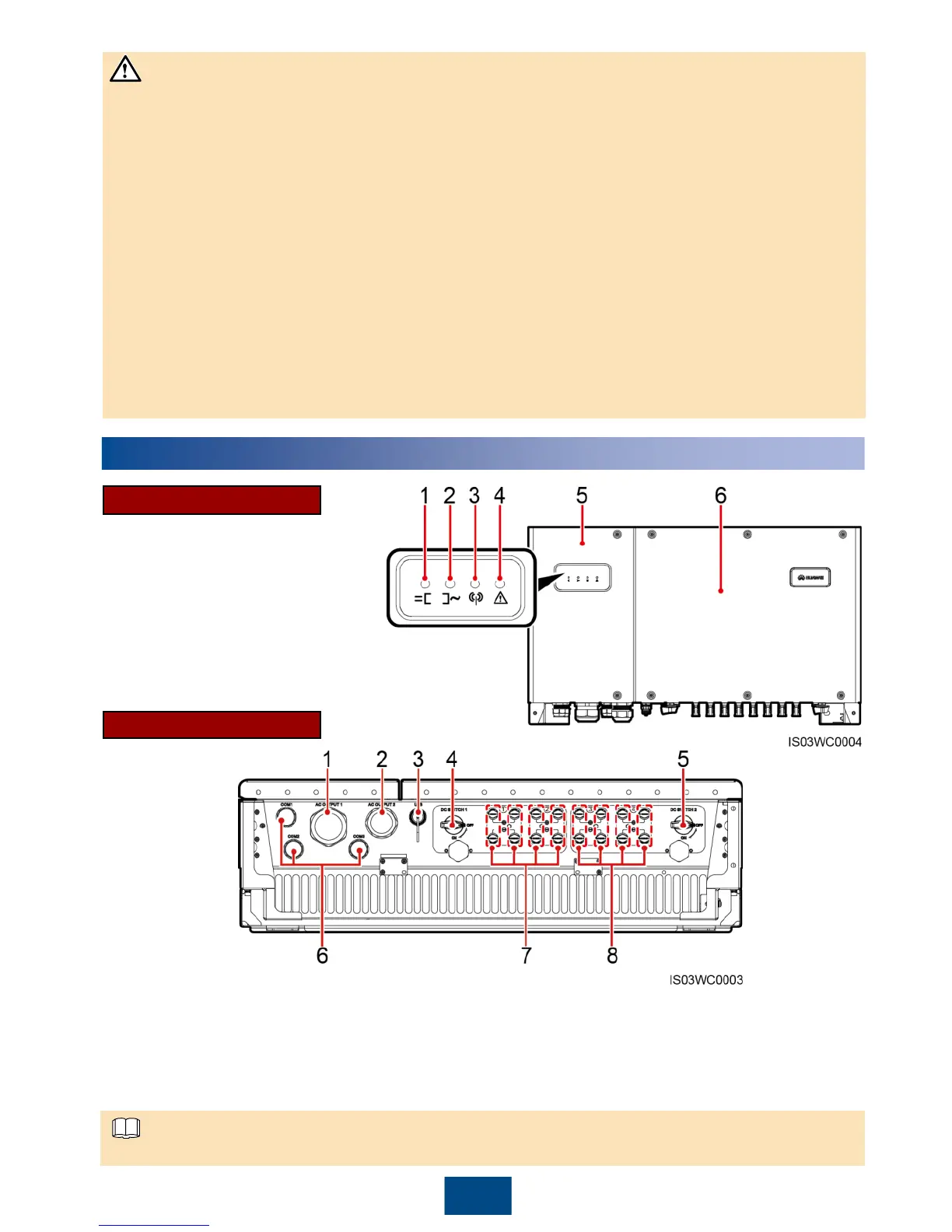

Ports
Waterproof cable connector is abbreviated as connector in the following text.
(1) PV connection indicator
(2) Grid-tied indicator
(3) Communication indicator
(4) Alarm/Maintenance indicator
(5) Maintenance compartment door
(6) Host panel
SUN2000 Front View
(1) Waterproof cable connector (AC OUTPUT 1)
(3) USB port (USB)
(5) DC switch 2 (DC SWITCH 2)
(7) DC input terminal (controlled by DC
SWITCH 1)
(2) Waterproof cable connectors (AC OUTPUT 2)
(4) DC switch 1 (DC SWITCH 1)
(6) Waterproof cable connectors
(COM1/COM2/COM3)
(8) DC input terminal (controlled by DC SWITCH 2)
NOTE
NOTICE

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
