Huawei SUN2000-36KTL Quick Guide

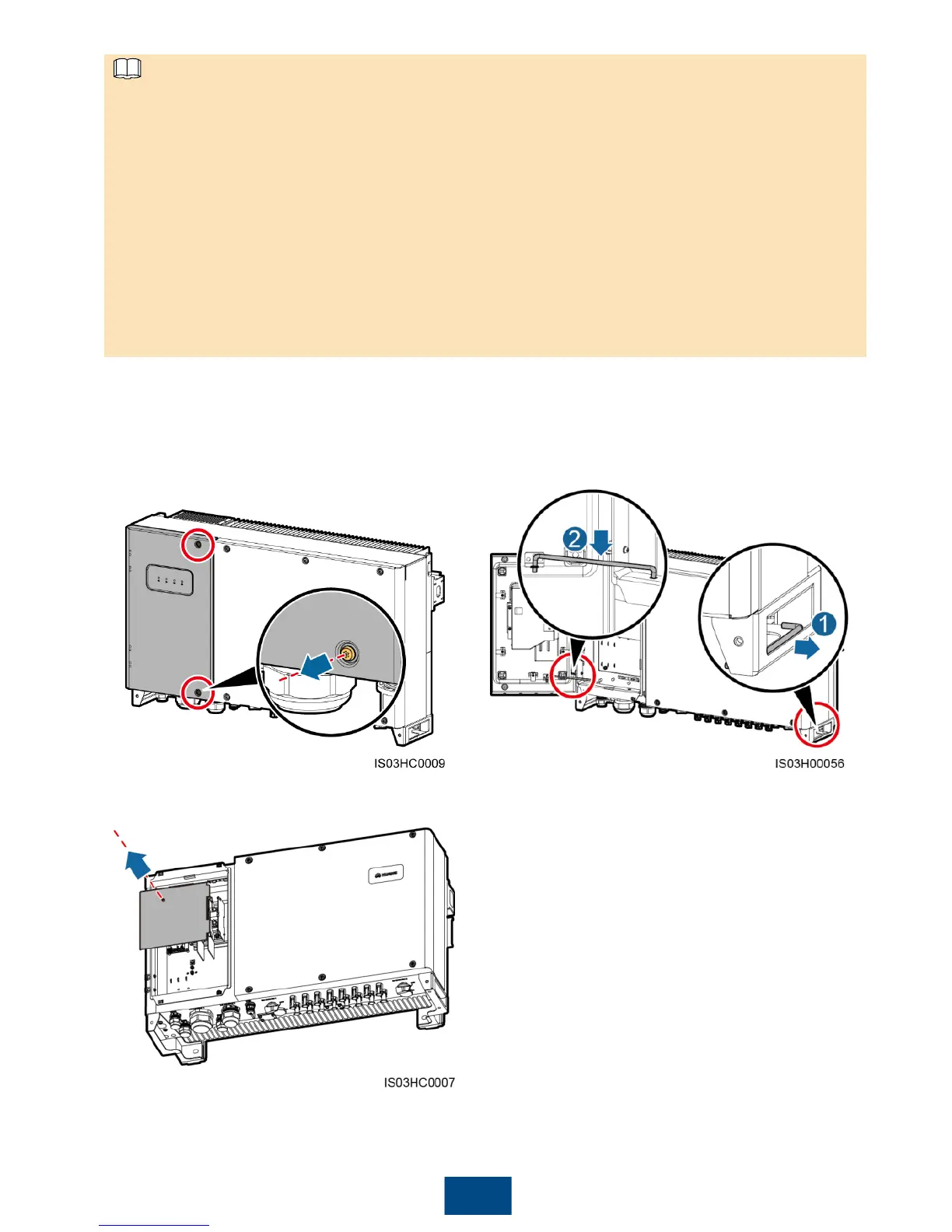

1. Remove the two security torx screws from the
maintenance compartment door using a security
torx wrench. (Set the two screws aside. Use the
idle ground screw on the enclosure shell as the
standby screw, and the idle floating nut on the
enclosure as the standby floating nut.)
2. Open the maintenance
compartment door and adjust the
support bar. (The support bar is
bound to the enclosure base.)
3. Remove the AC terminal cover.
6
• If you connect a ground cable to the ground point on the enclosure shell in a scenario with a
neutral wire, you are recommended to use a four-core outdoor copper-core cable with a cross-
sectional area of 16 mm
2
as the AC output power cable for the SUN2000-33KTL-A and a four-
core outdoor copper cable with a cross-sectional area of 25 mm
2
as the AC output power
cable for the SUN2000-36KTL.
• If you connect a ground cable to the ground point in the maintenance compartment in a
scenario with a neutral wire, you are recommended to use a five-core outdoor copper-core
cable with a cross-sectional area of 16 mm
2
as the AC output power cable for the SUN2000-
33KTL-A and a five-core outdoor copper cable with a cross-sectional area of 25 mm
2
as the
AC output power cable for the SUN2000-36KTL.
• For more details about cable specifications, see the SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual.
• The AC OUTPUT 1 connector supports the cable with an outer diameter of 18 mm to 44 mm.
NOTE

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
