Huawei SUN2000-36KTL Quick Guide

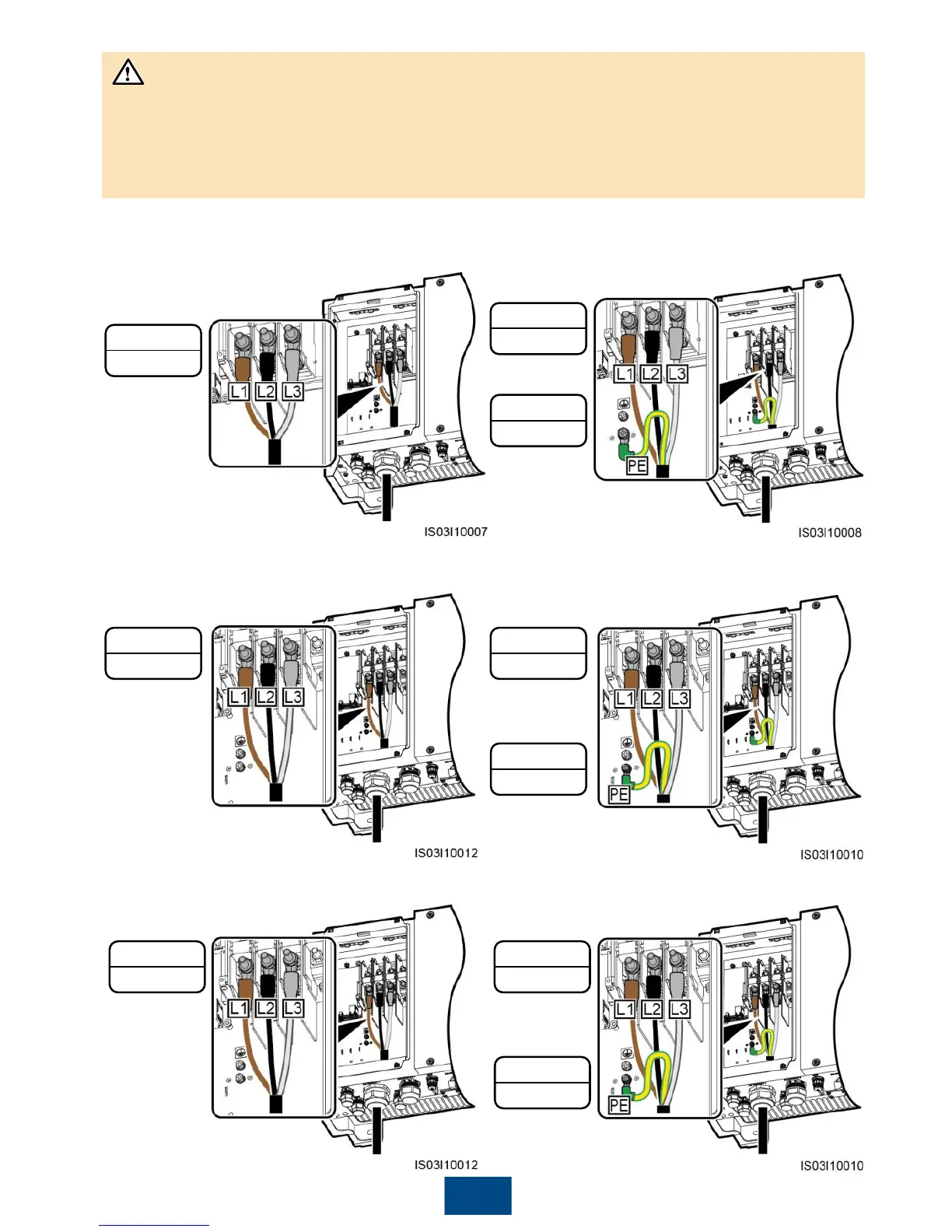

a. 3-pin SUN2000-42KTL
(excluding the ground cable)
b. 3-pin SUN2000-42KTL
(including the ground cable)
M8
8 N·m
M8
8 N·m
M6
5 N·m
c. 4-pin SUN2000-42KTL (excluding the
ground cable and neutral wire)
d. 4-pin SUN2000-42KTL (including the
ground cable but excluding the neutral
wire)
M8
8 N·m
M8
8 N·m
M6
5 N·m
8
e. SUN2000-33KTL-A/36KTL (excluding
the ground cable and neutral wire)
f. SUN2000-33KTL-A/36KTL (including
the ground cable but excluding the
neutral wire)
M8
8 N·m
M8
8 N·m
M6
5 N·m
• Ensure that the AC output power cable is connected securely. Otherwise, the SUN2000 may fail
to operate or experience a fault that will damage the terminal block. For example, the SUN2000
may generate heat during operation due to unreliable connection.
• If the SUN2000 is insecurely installed and the AC output power cable bears the pulling force,
ensure that the last cable bearing the force is the PE cable.
NOTICE

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
